springboot异常处理之404

wwayn约 3 分钟

源码分析

在springboot中默认有一个异常处理器接口ErrorContorller，该接口提供了getErrorPath()方法，此接口的BasicErrorController实现类实现了getErrorPath()方法，如下：


/** AbstractErrorController是ErrorContoller的实现类*/@Controller@RequestMapping("${server.error.path:${error.path:/error}}")public class BasicErrorController extends AbstractErrorController {
    private final ErrorProperties errorProperties;
    ...    @Override    public String getErrorPath() {        return this.errorProperties.getPath();    }
    @RequestMapping(produces = MediaType.TEXT_HTML_VALUE)    public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {        HttpStatus status = getStatus(request);        Map<String, Object> model = Collections                .unmodifiableMap(getErrorAttributes(request, isIncludeStackTrace(request, MediaType.TEXT_HTML)));        response.setStatus(status.value());        ModelAndView modelAndView = resolveErrorView(request, response, status, model);        return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);    }
    @RequestMapping    public ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {        HttpStatus status = getStatus(request);        if (status == HttpStatus.NO_CONTENT) {            return new ResponseEntity<>(status);        }        Map<String, Object> body = getErrorAttributes(request, isIncludeStackTrace(request, MediaType.ALL));        return new ResponseEntity<>(body, status);    }    ....}

errorProperties类定义如下：

public class ErrorProperties {
    /**     * Path of the error controller.     */    @Value("${error.path:/error}")    private String path = "/error";    ...}

由此可见，springboot中默认有一个处理/error映射的控制器，有error和errorHtml两个方法的存在，它可以处理来自浏览器页面和来自机器客户端（app应用）的请求。

当用户请求不存在的url时，dispatcherServlet会交由ResourceHttpRequestHandler映射处理器来处理该请求，并在handlerRequest方法中，重定向至/error映射，代码如下：

    @Override    public void handleRequest(HttpServletRequest request, HttpServletResponse response)            throws ServletException, IOException {
        // For very general mappings (e.g. "/") we need to check 404 first        Resource resource = getResource(request);        if (resource == null) {            logger.debug("Resource not found");            response.sendError(HttpServletResponse.SC_NOT_FOUND); // 404            return;        }        ...    }

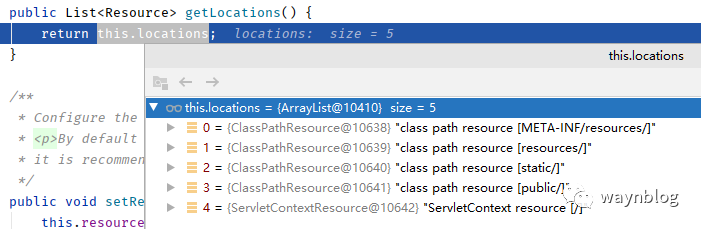

getResource(request)会调用this.resolverChain.resolveResource(request, path, getLocations())方法，getLocations()方法返回结果如下：


接着程序会执行到getResource(pathToUse, location)方法如下：

    @Nullable    protected Resource getResource(String resourcePath, Resource location) throws IOException {        // 新建一个resource对象，url为  location + resourcePath，判断此对象（文件）是否存在        Resource resource = location.createRelative(resourcePath);        if (resource.isReadable()) {            if (checkResource(resource, location)) {                return resource;            }            else if (logger.isWarnEnabled()) {                Resource[] allowedLocations = getAllowedLocations();                logger.warn("Resource path \"" + resourcePath + "\" was successfully resolved " +                        "but resource \"" +    resource.getURL() + "\" is neither under the " +                        "current location \"" + location.getURL() + "\" nor under any of the " +                        "allowed locations " + (allowedLocations != null ? Arrays.asList(allowedLocations) : "[]"));            }        }        return null;    }

在resource.isReadable()中，程序会在locations目录中寻找path目录下文件，由于不存在，返回null。

最终也就导致程序重定向至/error映射，如果是来自浏览器的请求，也就会返回/template/error/404.html页面,所以对于404请求，只需要在template目录下新建error目录，放入404页面即可。

使用注意

1.在springboot4.x中我们可以自定义ControllerAdvice注解 + ExceptionHandler注解来助理不同错误类型的异常，但在springboot中404异常和拦截器异常由spring自己处理。
