万字长文深度解析JDK序列化原理及Fury高度兼容的极致性能实现

序言

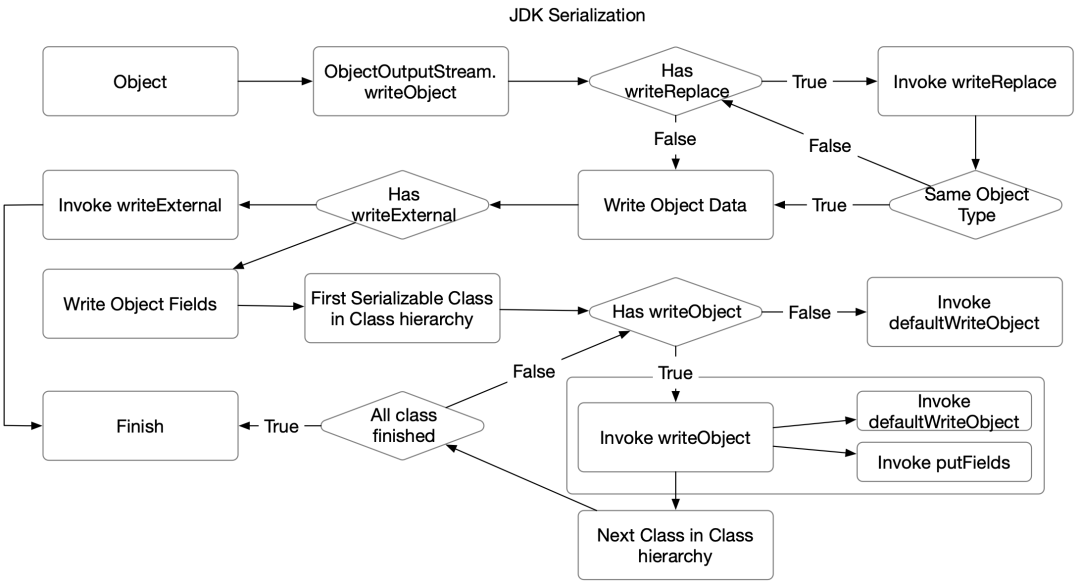

JDK序列化原理分析

    private void writeObject(java.io.ObjectOutputStream s)        throws java.io.IOException {        java.io.ObjectOutputStream.PutField fields = s.putFields();        fields.put("rnd", U.getLong(Thread.currentThread(), SEED));        fields.put("initialized", true);        s.writeFields();    }

Hessian/Kryo等框架存在的问题

public static class CustomReplaceClass implements Serializable {  Object writeReplace() {    return new CustomReplaceClass();  }  Object readResolve() {    return new CustomReplaceClass();  }}Exception in thread "main" java.lang.StackOverflowError  at java.base/java.lang.reflect.InvocationTargetException.<init>(InvocationTargetException.java:73)  at jdk.internal.reflect.GeneratedMethodAccessor1.invoke(Unknown Source)  at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)  at java.base/java.lang.reflect.Method.invoke(Method.java:566)  at com.caucho.hessian.io.WriteReplaceSerializer.writeReplace(WriteReplaceSerializer.java:184)  at com.caucho.hessian.io.WriteReplaceSerializer.writeObject(WriteReplaceSerializer.java:155)  at com.caucho.hessian.io.Hessian2Output.writeObject(Hessian2Output.java:465)  at com.caucho.hessian.io.WriteReplaceSerializer.writeObject(WriteReplaceSerializer.java:167)  at com.caucho.hessian.io.Hessian2Output.writeObject(Hessian2Output.java:465)  at com.caucho.hessian.io.WriteReplaceSerializer.writeObject(WriteReplaceSerializer.java:167)  at com.caucho.hessian.io.Hessian2Output.writeObject(Hessian2Output.java:465)  at com.caucho.hessian.io.WriteReplaceSerializer.writeObject(WriteReplaceSerializer.java:167)  at com.caucho.hessian.io.Hessian2Output.writeObject(Hessian2Output.java:465)

    /**     * Head of linked list.     * Invariant: head.item == null     */    transient Node<E> head;    /**     * Tail of linked list.     * Invariant: last.next == null     */    private transient Node<E> last;    private void writeObject(java.io.ObjectOutputStream s)        throws java.io.IOException {        fullyLock();        try {            // Write out any hidden stuff, plus capacity            s.defaultWriteObject();            // Write out all elements in the proper order.            for (Node<E> p = head.next; p != null; p = p.next)                s.writeObject(p.item);            // Use trailing null as sentinel            s.writeObject(null);        } finally {            fullyUnlock();        }    }

private void readObject(java.io.ObjectInputStream s)    throws java.io.IOException, ClassNotFoundException {    s.defaultReadObject();    readHolds = new ThreadLocalHoldCounter();    setState(0); // reset to unlocked state}

• JDK序列化性能很差，导致kryo序列化性能大幅退化
• JDK序列化结果很大，导致kryo序列化数据膨胀
• 转发给JDK序列化的对象子图不会跟Kryo share同一个引用表，如果该子图共享/循环引用了其它对象，则会出现重复序列化/递归栈溢出

kryo不支持父子类出现重名字段，这在某些条件下也会成为一个使用 限制。

• Jsonb不支持任何JDK自定义序列化方法，反序列化会报错
• Fst不支持类型前后兼容，无法在服务化场景使用

Fury兼容实现原理

ReplaceResolveSerializer

ObjectStreamSerializer

JDK ObjectOutputStream/ObjectInputStream /PutField/GetField 的接口

序列化器初始化部分

• 获取无参数构造函数或者第一个Non Serializable父类无参数构造函数。为了避免JDK17以上版本的反射访问权限问题，在JDK17以上版本会通过Unsafe直接获取ObjectStreamClass.lookup(type)抽取的构造函数。

    Constructor constructor;    try {      constructor = type.getConstructor();      if (!constructor.isAccessible()) {        constructor.setAccessible(true);      }    } catch (Exception e) {      constructor =          (Constructor) ReflectionUtils.getObjectFieldValue(ObjectStreamClass.lookup(type), "cons");    }

• 遍历对象层次结构，创建每个class的JITCompatibleSerializer/CompatibleSerializer/ FuryObjectOutputStream/FuryObjectInputStream等。其中slotsSerializer是JITCompatibleSerializer，用于执行ObjectOutputStream#defaultWriteObject/ObjectInputStream#defaultReadObject。compatibleStreamSerializer用于序列化将PutFields设置的字段，因为PutFields设置的字段可能在当前对象类型里面不存在，因此这种情况下无法使用JIT进行类型推断和序列化。

    List<SlotsInfo> slotsInfoList = new ArrayList<>();    Class<?> end = type;    // locate closest non-serializable superclass    while (end != null && Serializable.class.isAssignableFrom(end)) {      end = end.getSuperclass();    }    while (type != end) {      slotsInfoList.add(new SlotsInfo(fury, type));      type = type.getSuperclass();    }    Collections.reverse(slotsInfoList);    slotsInfos = slotsInfoList.toArray(new SlotsInfo[0]);

  private static class SlotsInfo {    private final Class<?> cls;    private final Method writeObjectMethod;    private final Method readObjectMethod;    private final Method readObjectNoData;    private final CompatibleSerializerBase slotsSerializer;    private final ObjectIntMap<String> fieldIndexMap;    private final FieldResolver putFieldsResolver;    private final CompatibleSerializer compatibleStreamSerializer;    private final FuryObjectOutputStream objectOutputStream;    private final FuryObjectInputStream objectInputStream;    private final ObjectArray getFieldPool;  }

序列化器执行部分

• 序列化执行部分

• 写入所有Serializable class数量
• 遍历对象类层次结构，依次序列化每个类型的字段数据。序列化每个类型的数据分为以下几个部分：
• 如果当前对象所在类型没有定义writeObject方法，则直接调用slotsSerializer (JITCompatibleSerializer)序列化当前类型所有字段。
• 如果前对象所在类型定义了writeObject方法，则会缓存之前一次序列化的上下文，然后调用writeObject方法，传入Fury实现的FuryObjectOutputStream。
• 在FuryObjectOutputStream里面，同时也会针对putFields/writeFields/defaultWriteObject进行特殊的处理。putFields/writeFields会把对象转换成CompatibleSerializer可识别的array形式，defaultWriteObject则会直接调用slotsSerializer (JITCompatibleSerializer)序列化当前类型所有字段。

for (SlotsInfo slotsInfo : slotsInfos) {    buffer.writeShort((short) slotsInfos.length);    classResolver.writeClassInternal(buffer, slotsInfo.cls);    Method writeObjectMethod = slotsInfo.writeObjectMethod;    if (writeObjectMethod == null) {      slotsInfo.slotsSerializer.write(buffer, value);    } else {      FuryObjectOutputStream objectOutputStream = slotsInfo.objectOutputStream;      Object oldObject = objectOutputStream.targetObject;      MemoryBuffer oldBuffer = objectOutputStream.buffer;      FuryObjectOutputStream.PutFieldImpl oldPutField = objectOutputStream.curPut;      boolean fieldsWritten = objectOutputStream.fieldsWritten;      try {        objectOutputStream.targetObject = value;        objectOutputStream.buffer = buffer;        objectOutputStream.curPut = null;        objectOutputStream.fieldsWritten = false;        writeObjectMethod.invoke(value, objectOutputStream);      } finally {        objectOutputStream.targetObject = oldObject;        objectOutputStream.buffer = oldBuffer;        objectOutputStream.curPut = oldPutField;        objectOutputStream.fieldsWritten = fieldsWritten;      }    }  }

• 根据构造函数创建对象实例。
• 将对象实例写入引用表。
• 读取对象层次结构所有Serializable Class数量。
• 依次从数据读取class，并和当前类型层次结构的class进行比较。如果不一致，则代表当前类型层次结构发生了变化，引入了新的父类，如果该类型定义了readObjectNoData，则调用该方法进行初始化，然后向上遍历类型层次结构，直到找到相同类型。
• 反序列化该类型的所有字段值并设置到对象字段上面。

• 如果对象没有定义readObject方法，则直接调用slotsSerializer (JITCompatibleSerializer)进行反序列化。
• 如果定义了readObject方法，则调用对象的readObject方法，传入Fury实现的FuryObjectInputStream。
• 在FuryObjectInputStream里面，同时也会针对readFields/defaultReadObject进行特殊的处理。readFields会使用CompatibleSerializer把对象转换成可识别的GetField形式，defaultReadObject则会直接调用slotsSerializer (JITCompatibleSerializer)反序列化当前类型所有字段。

• 如果在readObject期间用户通过registerValidation注册了ObjectInputValidation回调，则会在返回该对象之前，按照优先级依次执行回调。
• 至此反序列化完成。核心代码大致如下：

    Object obj = null;    if (constructor != null) {      try {        obj = constructor.newInstance();      } catch (InstantiationException | IllegalAccessException | InvocationTargetException e) {        Platform.throwException(e);      }    } else {      obj = Platform.newInstance(type);    }    fury.getReferenceResolver().reference(obj);    int numClasses = buffer.readShort();    int slotIndex = 0;    TreeMap<Integer, ObjectInputValidation> callbacks = new TreeMap<>(Collections.reverseOrder());    for (int i = 0; i < numClasses; i++) {      Class<?> currentClass = classResolver.readClassInternal(buffer);      SlotsInfo slotsInfo = slotsInfos[slotIndex++];      while (currentClass != slotsInfo.cls) {        // the receiver's version extends classes that are not extended by the sender's version.        Method readObjectNoData = slotsInfo.readObjectNoData;        if (readObjectNoData != null) {          readObjectNoData.invoke(obj);        }        slotsInfo = slotsInfos[slotIndex++];      }      Method readObjectMethod = slotsInfo.readObjectMethod;      if (readObjectMethod == null) {        slotsInfo.slotsSerializer.readAndSetFields(buffer, obj);      } else {        FuryObjectInputStream objectInputStream = slotsInfo.objectInputStream;        MemoryBuffer oldBuffer = objectInputStream.buffer;        Object oldObject = objectInputStream.targetObject;        FuryObjectInputStream.GetFieldImpl oldGetField = objectInputStream.getField;        FuryObjectInputStream.GetFieldImpl getField =            (FuryObjectInputStream.GetFieldImpl) slotsInfo.getFieldPool.popOrNull();        if (getField == null) {          getField = new FuryObjectInputStream.GetFieldImpl(slotsInfo);        }        boolean fieldsRead = objectInputStream.fieldsRead;        try {          objectInputStream.fieldsRead = false;          objectInputStream.buffer = buffer;          objectInputStream.targetObject = obj;          objectInputStream.getField = getField;          objectInputStream.callbacks = callbacks;          readObjectMethod.invoke(obj, objectInputStream);        } finally {          objectInputStream.fieldsRead = fieldsRead;          objectInputStream.buffer = oldBuffer;          objectInputStream.targetObject = oldObject;          objectInputStream.getField = oldGetField;          slotsInfo.getFieldPool.add(getField);          objectInputStream.callbacks = null;          Arrays.fill(getField.vals, FuryObjectInputStream.NO_VALUE_STUB);        }      }    }    for (ObjectInputValidation validation : callbacks.values()) {      validation.validateObject();    }

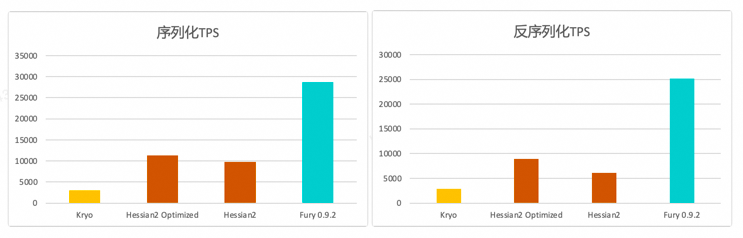

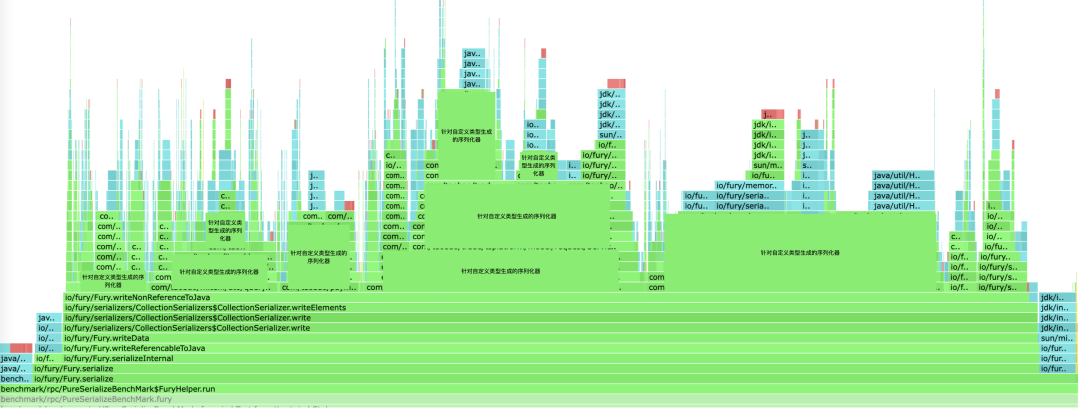

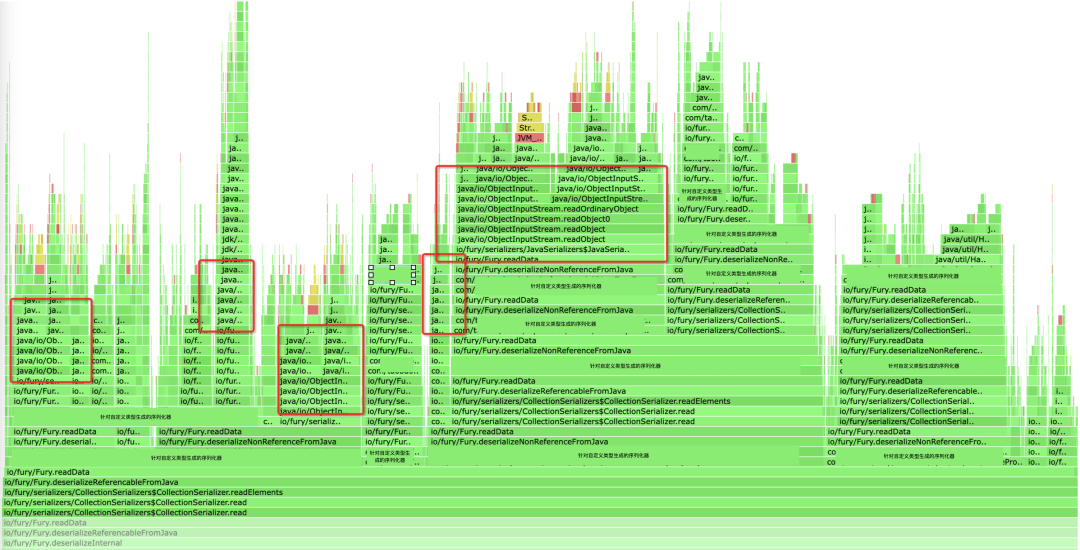

性能对比

结论

[1] writeOb ject： https:// do cs.or a cle.com/en/java/javase/18/docs/specs/serialization/output.html#the-writeobject-method

[2 ] readObject：

[3 ] writeR eplace：

[4 ] readResolve：https://docs.oracle.com/en/java/javase/18/docs/specs/serialization/input.html#the-readresolve-method
