6种方案，破解大数据散点图overlap！
p
pythonic生物人约 2 分钟

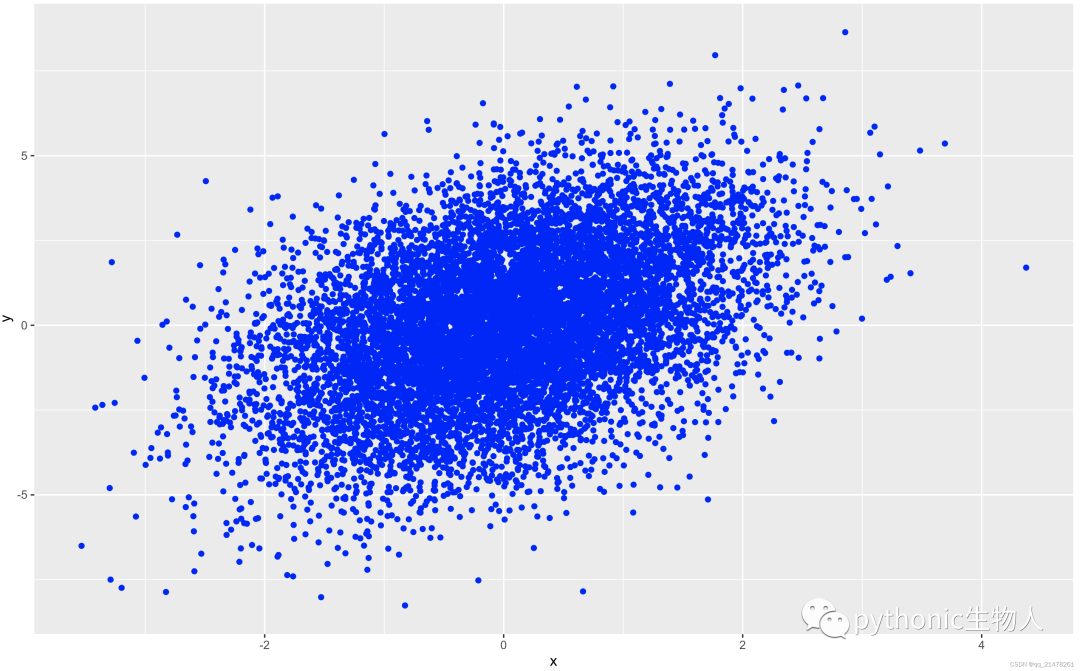

pythonic生物人约 2 分钟当有大量数据点在一张图中散点图展示时，会出现如下状况，
library(ggplot2)
x <- rnorm(n = 10000)
y <- rnorm(n = 10000, sd=2) + x
df <- data.frame(x, y)
ggplot(df, aes(x, y)) +
geom_point(colour="blue")
大量散点重叠在一起，以下介绍6种解决方法。

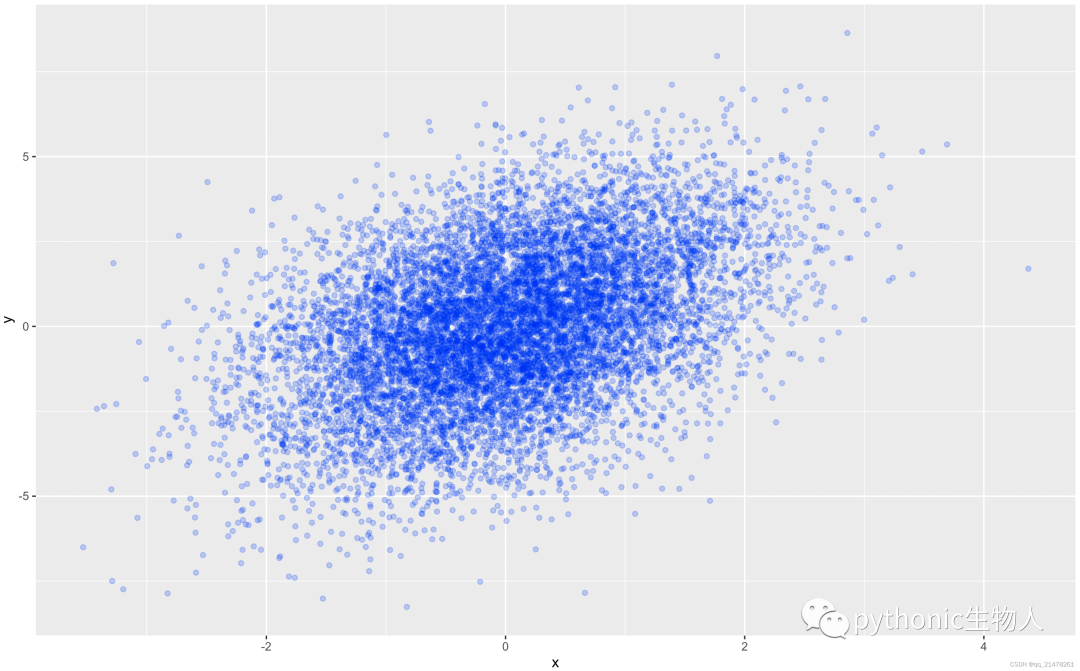

方法1、 控制散点透明度
ggplot(df, aes(x, y)) +
geom_point(colour="blue",
alpha = 0.2 #设置点的透明度
)
效果会好很多。

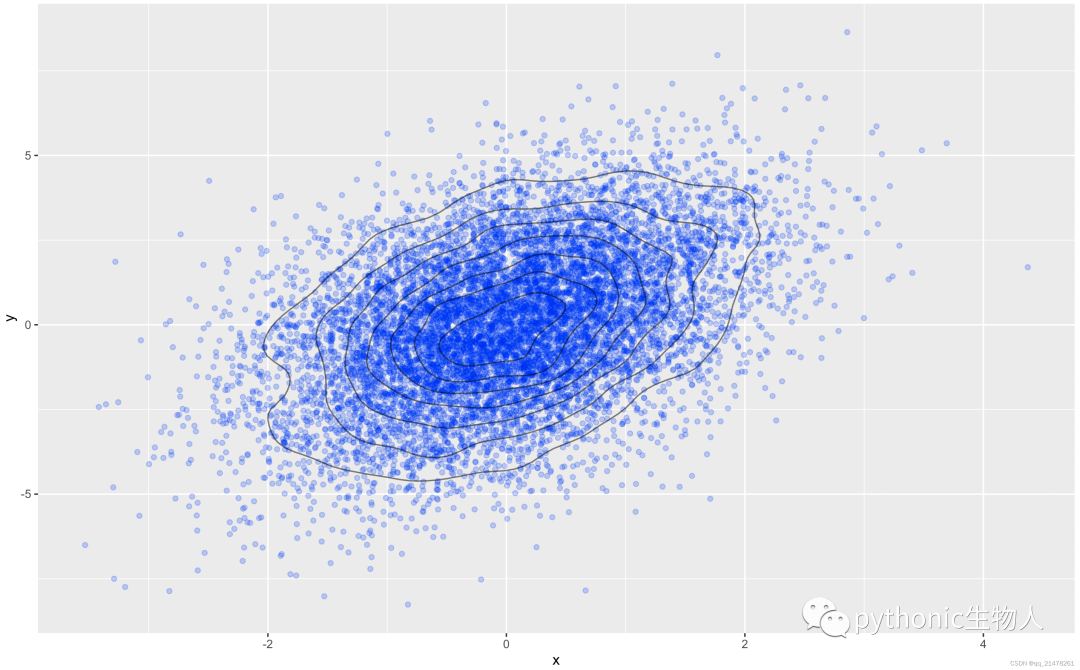

方法2、添加等高线
ggplot(df, aes(x, y)) +
geom_point(colour="blue",alpha = 0.2) +
geom_density_2d(colour="black",alpha = 0.5) #geom_density_2d添加等高线

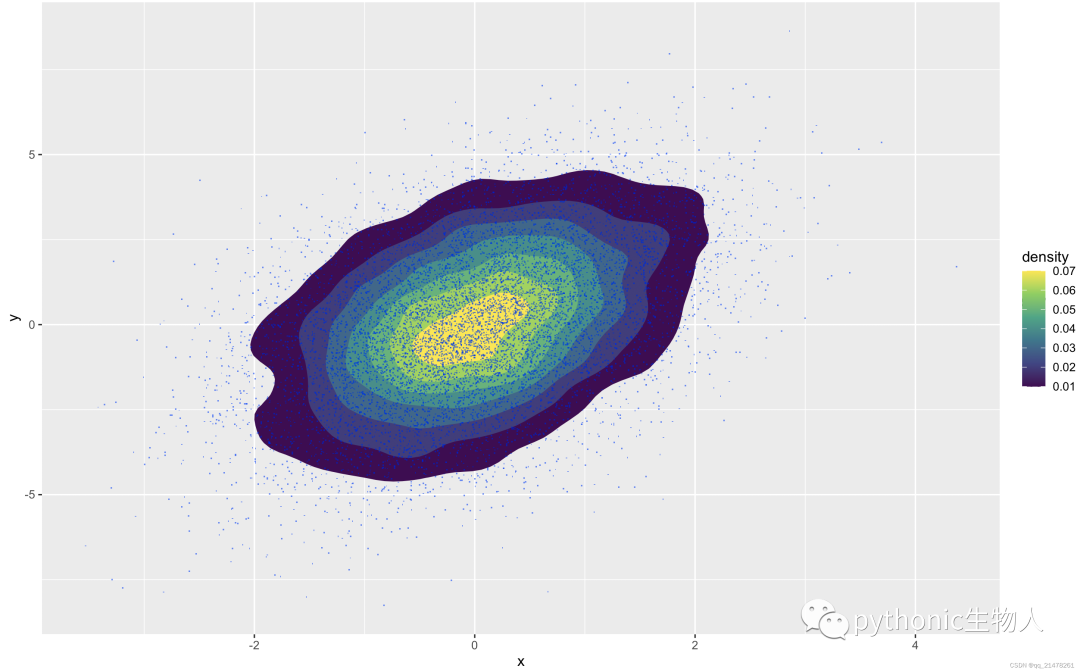

方法3、填充等高线
ggplot(df, aes(x, y)) +
stat_density_2d(aes(fill = stat(level)), geom = 'polygon') +
scale_fill_viridis_c(name = "density") +
geom_point(colour="blue",alpha = 0.5,shape = '.')

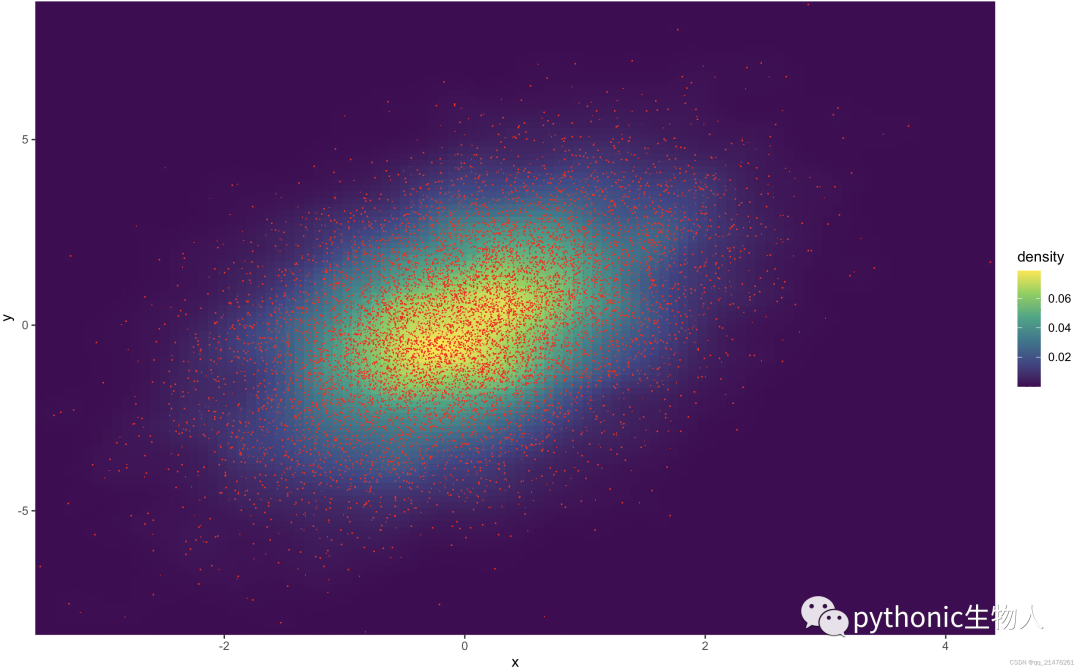

方法4、density heatmap
ggplot(df, aes(x, y)) +
stat_density_2d(aes(fill = stat(density)), geom = 'raster', contour = FALSE) +
scale_fill_viridis_c() +
coord_cartesian(expand = FALSE) +
geom_point(shape = '.', col = 'red')

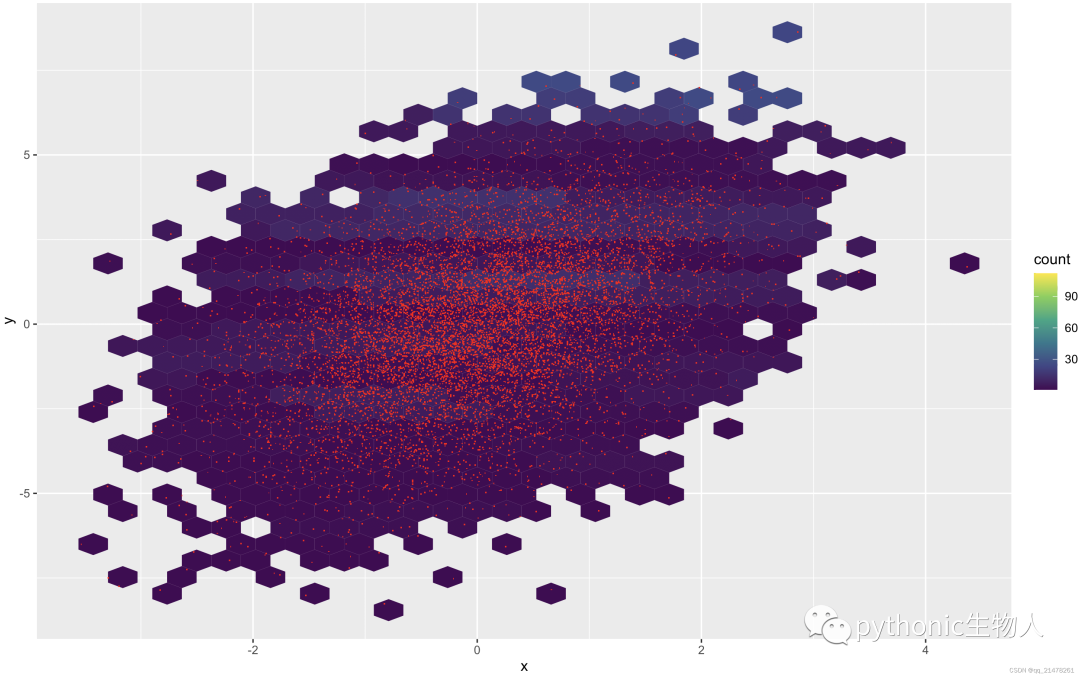

方法5、hexbin图
ggplot(df, aes(x, y)) +
geom_hex() + #geom_hex
scale_fill_viridis_c() +
geom_point(shape = '.', col = 'red')

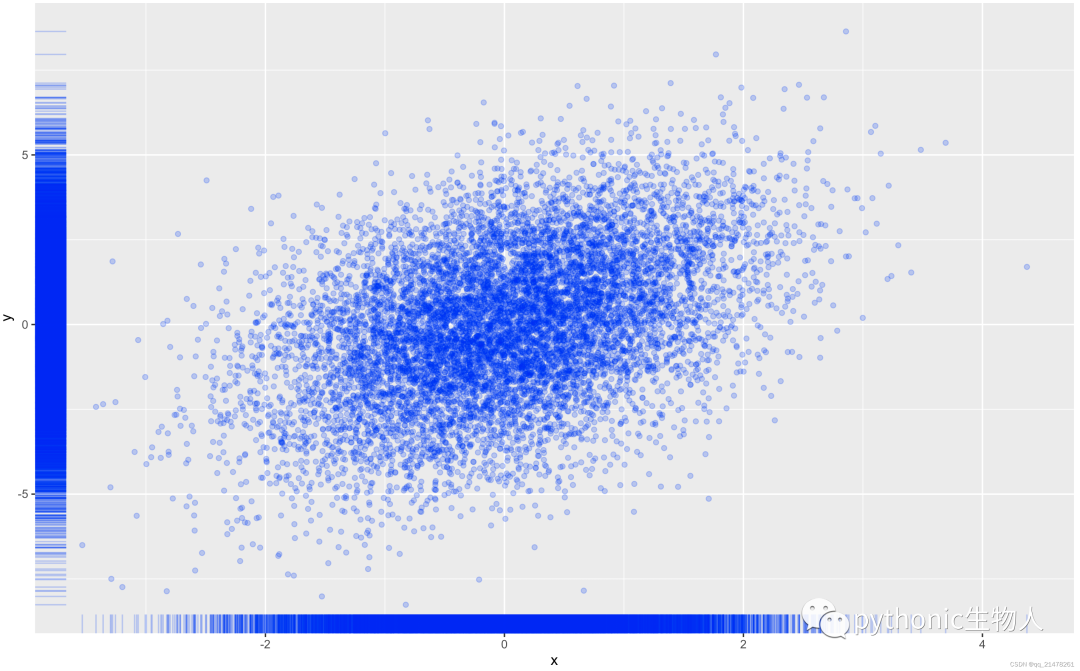

方法6、rug图
ggplot(df, aes(x, y)) +
geom_point(colour="blue",alpha = 0.2) +
geom_rug(colour="blue",alpha = 0.2) #geom_rug

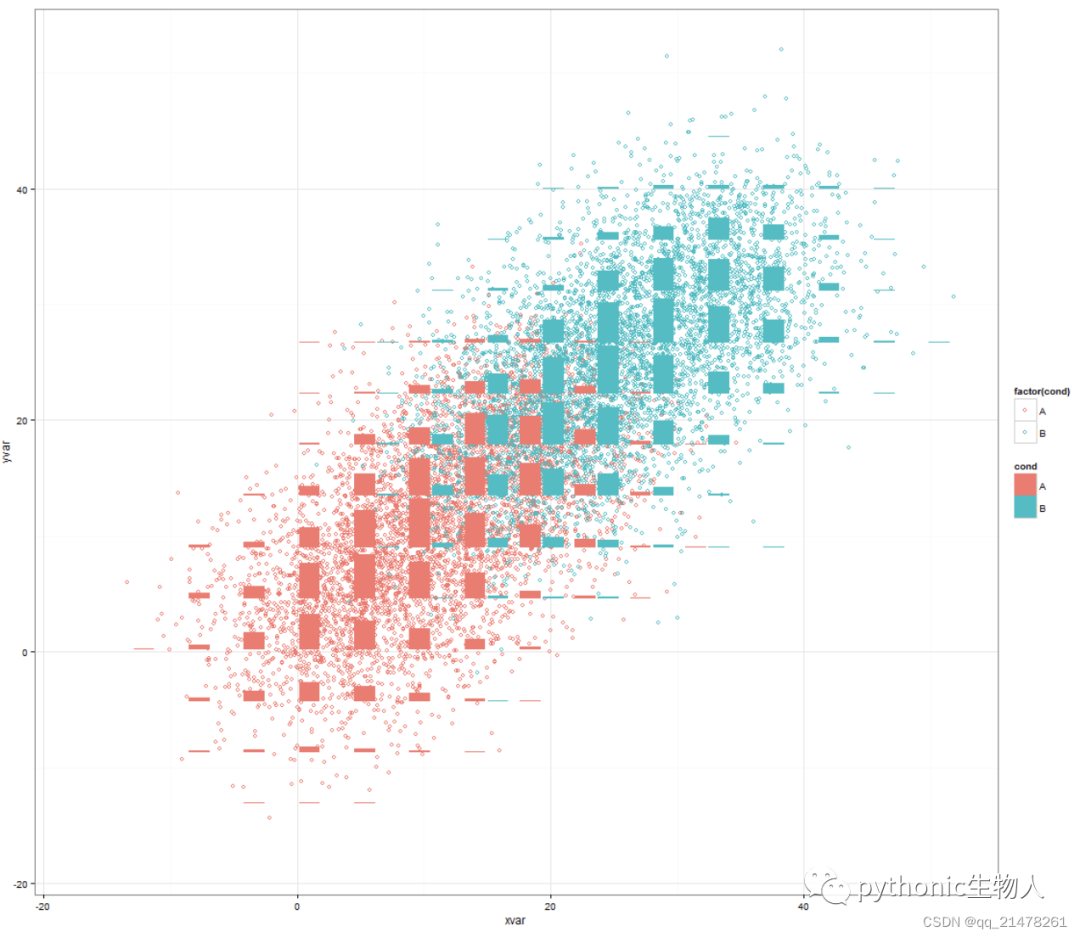

方法7、ggsubplot
library(ggplot2)
library(ggsubplot)
# data
set.seed(955)
dat <- data.frame(cond = rep(c("A", "B"), each=5000),
xvar = c(rep(1:20,250) + rnorm(5000,sd=5),rep(16:35,250) + rnorm(5000,sd=5)),
yvar = c(rep(1:20,250) + rnorm(5000,sd=5),rep(16:35,250) + rnorm(5000,sd=5)))
ggplot(dat, aes(x=xvar, y=yvar)) +
geom_point(shape=1, aes(color = factor(cond))) +
geom_subplot2d(aes(xvar, yvar, #geom_subplot2d
subplot = geom_bar(aes(cond, ..count.., fill = cond))),
bins = c(15,15), ref = NULL, width = rel(0.8), ply.aes = FALSE)
