一文学会iOS画中画浮窗

背景

实现

1. 实现画中画功能，需要设置哪些开关，实现哪些方法；
2. 基本的使用系统播放器时，画中画的实现；
3. 自定义播放器时，画中画功能的实现又需要如何设置，有哪些不同；
4. 如何通过画中画实现时分秒计时功能；
5. 《每日英语听力》通过画中画播放英语听力语句时怎么实现的？

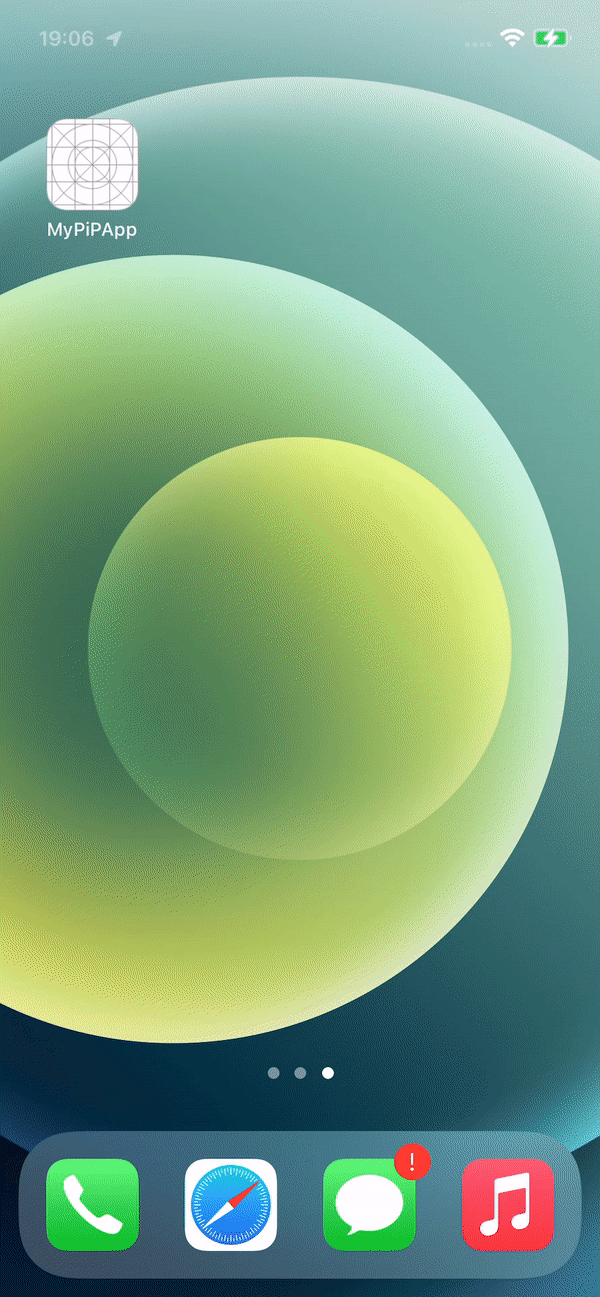

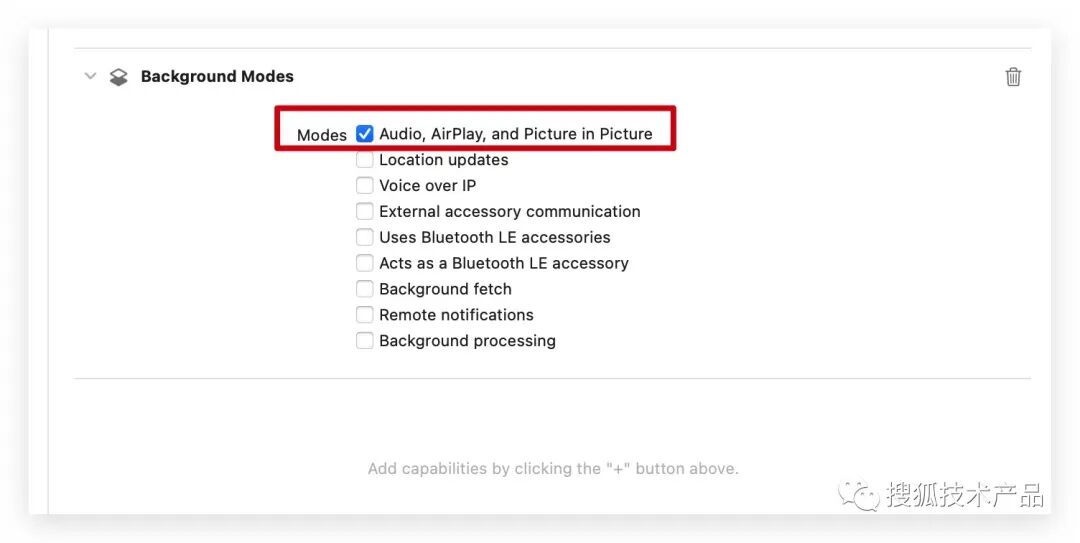

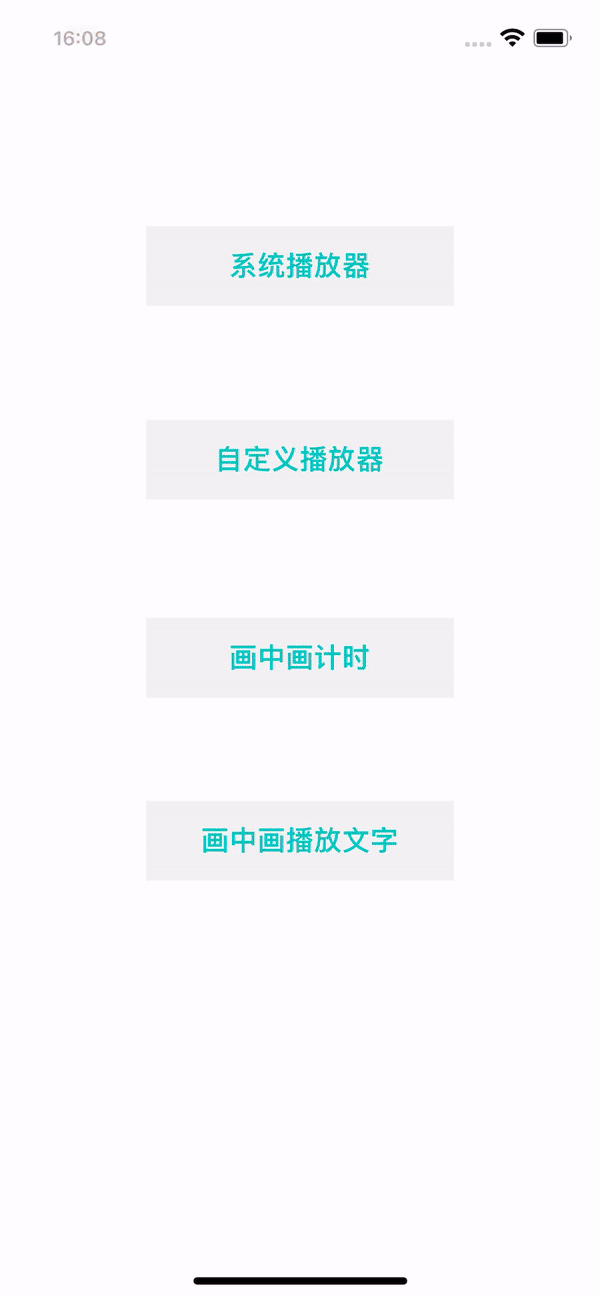

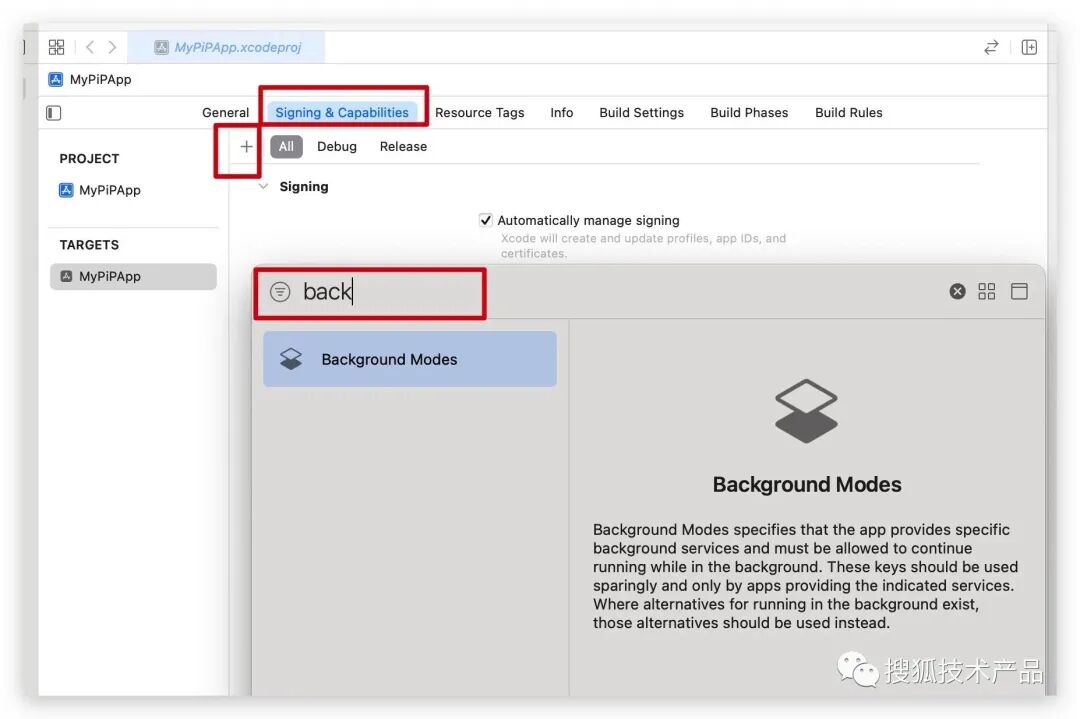

APP支持画中画功能

1. 导入AVFoundation
2. 设置AVAudioSession支持后台播放

// 导入AVFoundation
import AVFoundation
    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        // 添加设置代码
        do {
            // 设置AVAudioSession.Category.playback后，在静音模式下，或者APP进入后台，或者锁定屏幕后还可以继续播放。
            try AVAudioSession.sharedInstance().setCategory(AVAudioSession.Category.playback, mode: AVAudioSession.Mode.moviePlayback)
        } catch {
            print(error)
        }
        return true
    }

使用系统播放器时画中画的实现

import AVKit
    /// 获取播放的资源
    fileprivate func playerResource() -> AVQueuePlayer? {
        guard let videoURL = Bundle.main.url(forResource: "suancaidegang", withExtension: "mp4") else {
          return nil
        }
        let item = AVPlayerItem(url: videoURL)
        let player = AVQueuePlayer(playerItem: item)
        player.actionAtItemEnd = .pause
        return player
    }
    @IBAction func systemPlayerAction(_ sender: Any) {
        guard let player = playerResource() else {
            return
        }
        let avPlayerVC = AVPlayerViewController()
        avPlayerVC.player = player
        present(avPlayerVC, animated: true) {
            player.play()
        }
    }

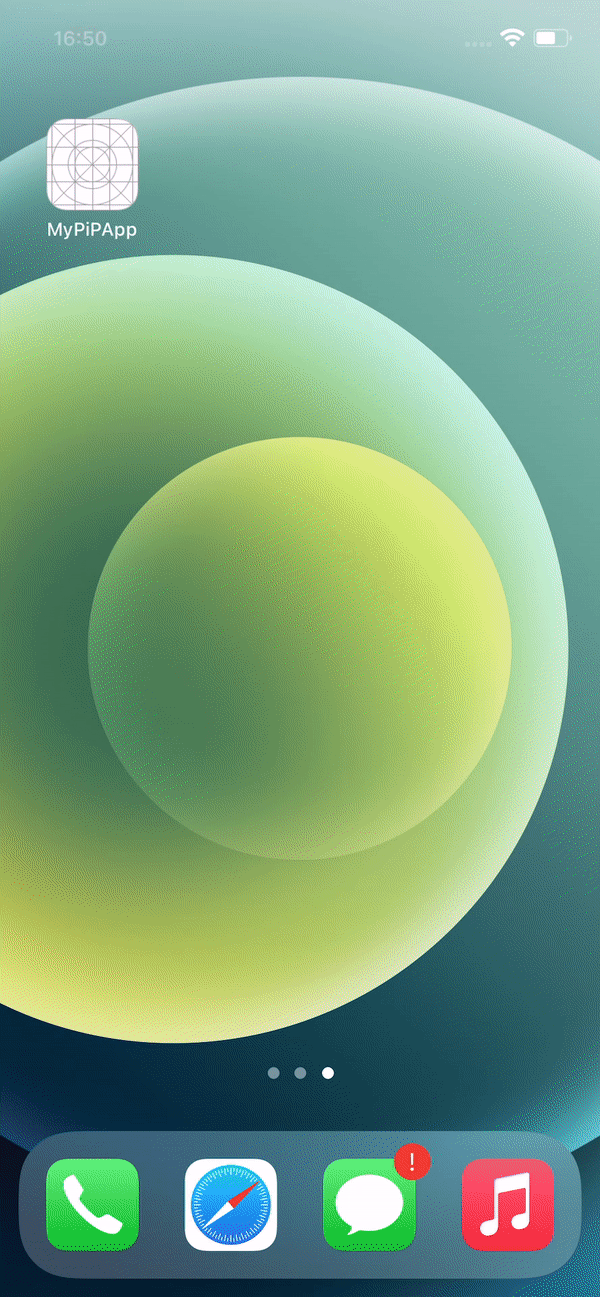

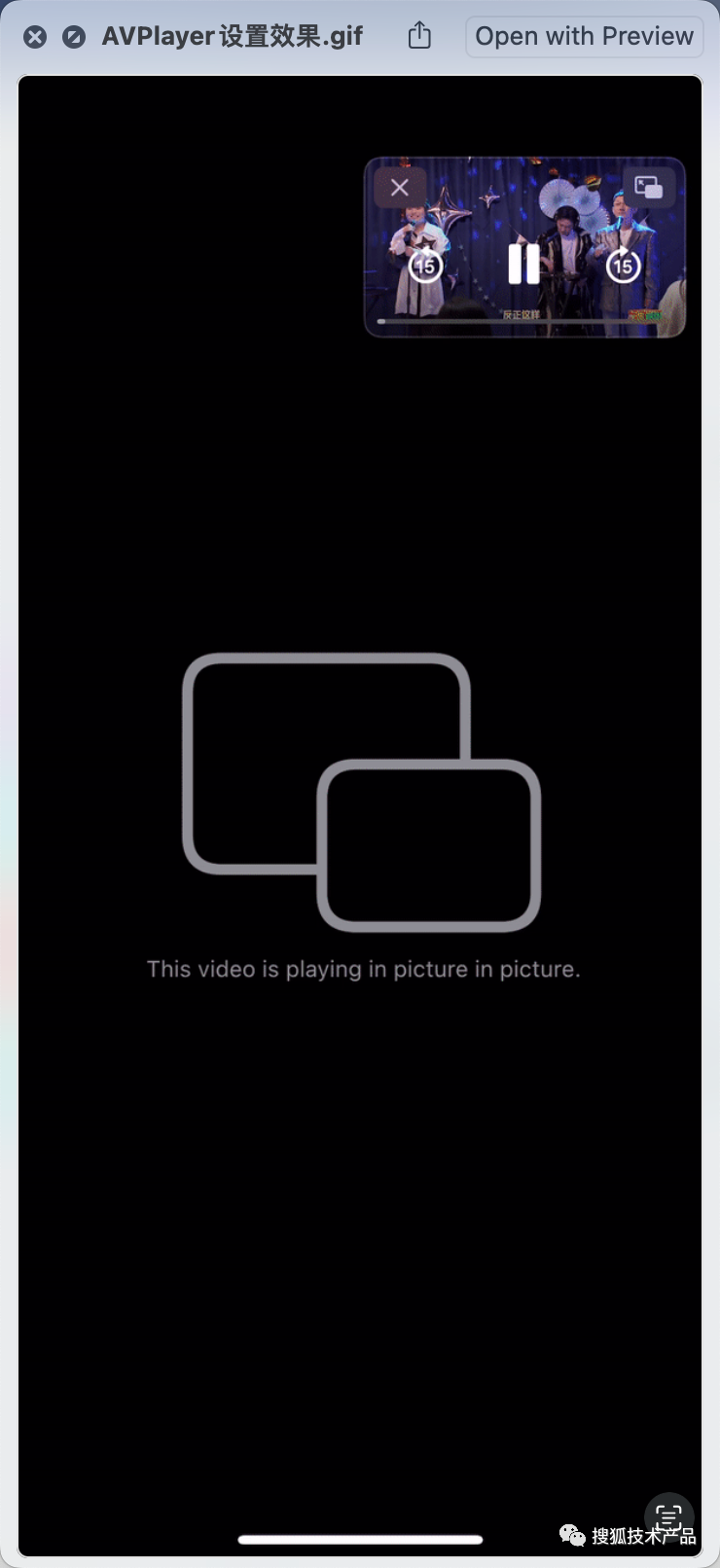

这里需要注意的是，一定要在真机上才可以看到画中画的效果，使用模拟器不行。运行后可以看到AVPlayerViewController直接支持了画中画的播放；点击进入画中画后，之前全屏的播放界面自动关掉；点击画中画返回播放界面后，画中画关闭，但是之前的播放界面也没有重新打开，效果如下：而这里很明显，画中画返回不了之前的播放界面是有问题的，所以要修改一下，加入可以设置再进入画中画时全屏的播放界面不关闭，点击画中画的返回是否可以正常呢？这里AVPlayerViewControllerDelegate的方法 playerViewControllerShouldAutomaticallyDismissAtPictureInPictureStart(_ playerViewController: AVPlayerViewController) -> Bool可以控制进入画中画时是否关闭当前界面。

    // 在此方法中添加avPlayerVC.delegate = self
    @IBAction func systemPlayerAction(_ sender: Any) {
        guard let player = playerResource() else {
            return
        }
        let avPlayerVC = AVPlayerViewController()
        avPlayerVC.delegate = self
        avPlayerVC.player = player
        present(avPlayerVC, animated: true) {
            player.play()
        }
    }
    // 设置AVPlayerViewControllerDelegate
   extension ViewController: AVPlayerViewControllerDelegate {
       func playerViewControllerShouldAutomaticallyDismissAtPictureInPictureStart(_ playerViewController: AVPlayerViewController) -> Bool {
            // 返回false时，进入画中画后播放界面不关闭
            // 返回true时，进入画中画后播放界面自动关闭，默认为true
           return false
       }
   }

extension ViewController: AVPlayerViewControllerDelegate {
    func playerViewControllerShouldAutomaticallyDismissAtPictureInPictureStart(_ playerViewController: AVPlayerViewController) -> Bool {
        // 这里修改为返回true，即进入画中画时关闭播放界面
        return true
    }
    func playerViewController(_ playerViewController: AVPlayerViewController, restoreUserInterfaceForPictureInPictureStopWithCompletionHandler completionHandler: @escaping (Bool) -> Void) {
        restore(playerVC: playerViewController, completionHandler: completionHandler)
    }
}
    fileprivate func restore(playerVC: UIViewController, completionHandler: @escaping (Bool) -> Void) {
        if let presentedVC = presentedViewController {
            // 说明当前正在播放的界面还存在
            // 先关闭界面，再弹出播放界面
            presentedVC.dismiss(animated: false) { [weak self] in
                self?.present(playerVC, animated: false) {
                    completionHandler(true)
                }
            }
        } else {
            // 直接弹出播放界面
            present(playerVC, animated: false) {
                completionHandler(true)
            }
        }
    }

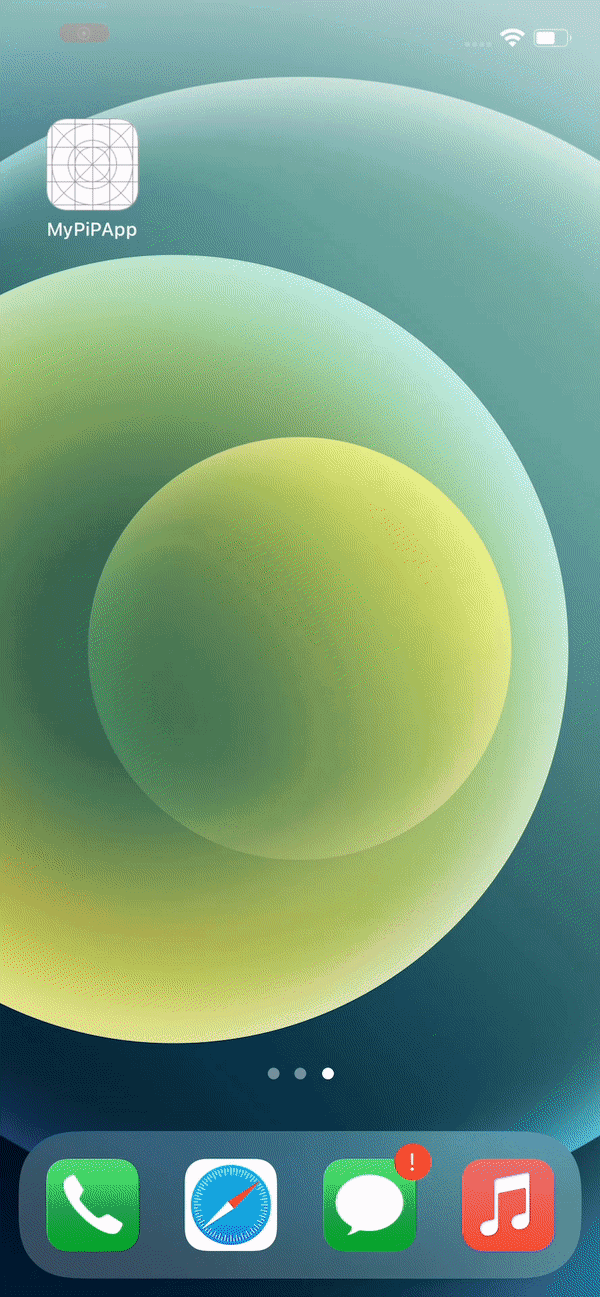

自定义播放器时画中画的实现

protocol CustomPlayerVCDelegate: AnyObject {
    func playerViewController(
      _ playerViewController: MWCustomPlayerVC,
      restoreUserInterfaceForPictureInPictureStopWithCompletionHandler
        completionHandler: @escaping (Bool) -> Void
    )
}
private var activeCustomPlayerVCs = Set<MWCustomPlayerVC>()
class MWCustomPlayerVC: UIViewController {
    // MARK: - properties
    private var pictureInPictureVC: AVPictureInPictureController?
    weak var delegate: CustomPlayerVCDelegate?
    var autoDismissAtPip: Bool = false // 进入画中画时，是否自动关闭当前播放页面
    var enterPipBtn: CustomPlayerCircularButtonView?
   override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.
                view.backgroundColor = .black
                setupPictureInPictureVC()
        setupEnterPipBtn()
    }
   fileprivate func setupPictureInPictureVC() {
        guard let playerLayer = playerLayer else {
            return
        }
        pictureInPictureVC = AVPictureInPictureController(playerLayer: playerLayer)
        pictureInPictureVC?.delegate = self
    }
           fileprivate func setupEnterPipBtn() {
        enterPipBtn = CustomPlayerCircularButtonView(symbolName: "pip.enter", height: 50.0)
        enterPipBtn?.addTarget(self, action: #selector(handleEnterPipAction), for: [.primaryActionTriggered, .touchUpInside])
        view.addSubview(enterPipBtn!)
                enterPipBtn?.snp.makeConstraints { make in
            make.right.equalToSuperview().inset(10.0)
            make.centerY.equalTo(self.view.snp.centerY)
            make.width.height.equalTo(50.0)
        }
    }
    // 点击唤起画中画界面
    @objc
    fileprivate func handleEnterPipAction() {
        pictureInPictureVC?.startPictureInPicture()
    }
}
extension MWCustomPlayerVC: AVPictureInPictureControllerDelegate {
    func pictureInPictureControllerWillStartPictureInPicture(_ pictureInPictureController: AVPictureInPictureController) {
        // 进入画中画播放的代理方法
        activeCustomPlayerVCs.insert(self)
        enterPipBtn?.isHidden = true
    }
        // 画中画开始播放后，当前播放界面是否消失
    func pictureInPictureControllerDidStartPictureInPicture(_ pictureInPictureController: AVPictureInPictureController) {
        if autoDismissAtPip {
            dismiss(animated: true)
        }
    }
        // 画中画进入失败
    func pictureInPictureController(_ pictureInPictureController: AVPictureInPictureController, failedToStartPictureInPictureWithError error: Error) {
        activeCustomPlayerVCs.remove(self)
        enterPipBtn?.isHidden = false
    }
        // 画中画返回的代理方法
    func pictureInPictureController(_ pictureInPictureController: AVPictureInPictureController, restoreUserInterfaceForPictureInPictureStopWithCompletionHandler completionHandler: @escaping (Bool) -> Void) {
        delegate?.playerViewController(self, restoreUserInterfaceForPictureInPictureStopWithCompletionHandler: completionHandler)
    }
}

    @IBAction func customPlayerAction(_ sender: Any) {
        guard let player = playerResource() else {
            return
        }
                let playerVC = MWCustomPlayerVC()
        playerVC.modalPresentationStyle = .fullScreen
        playerVC.delegate = self
        playerVC.player = player
        playerVC.autoDismissAtPip = true
        present(playerVC, animated: true) {
            player.play()
        }
    }
 extension ViewController: CustomPlayerVCDelegate {
    func playerViewController(
      _ playerViewController: MWCustomPlayerVC,
      restoreUserInterfaceForPictureInPictureStopWithCompletionHandler
      completionHandler: @escaping (Bool) -> Void) {
          restore(playerVC: playerViewController, completionHandler: completionHandler)
      }
}

• 笔者想的方法是，既然画中画是播放视频的，那是否可以把转为视频？然后再用播放视频的方式，来播放的内容？
• 然后笔者查阅了网上其他资料，发现还有一种更的思路，既然画中画在APP中弹出，那是不是能获取画中画的，获取到之后，直接在上添加的显示是不是就可以了？

时分秒计时画中画的实现

1. 把转为
   （参考https://soranoba.net/programming/uiview-to-cmsamplebuffer）；
2. 通过方法用来初始化，
3. 再用来初始化，
4. 然后用来展示，
5. 最终把显示在了上。

import UIKit
import UIPiPView
import SnapKit
class MWFullTimerVC: MWBaseVC {
        // MARK: - properties
    private let pipView = UIPiPView()
    private let timeLabel = UILabel()
    private let dateFormatStr = "yyyy-MM-dd HH:mm:ss"
    private var timer: Timer?
    // MARK: - view life cycle
        override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.
        view.backgroundColor = UIColor.black
                setupPipView()
        setupTimeLabel()
        createDisplayLink()
    }
        fileprivate func setupPipView() {
        let width = UIScreen.main.bounds.width
        pipView.frame = CGRect(x: 10.0, y: 0, width: width - 20.0, height: 50.0)
        view.addSubview(pipView)
        pipView.snp.makeConstraints { make in
            make.leading.trailing.equalToSuperview().inset(10.0)
            make.top.equalToSuperview().inset(100.0)
            make.height.equalTo(50.0)
        }
    }
        fileprivate func setupTimeLabel() {
        timeLabel.font = UIFont.boldSystemFont(ofSize: 16.0)
        timeLabel.textColor = UIColor.white
        timeLabel.backgroundColor = UIColor.orange
        timeLabel.textAlignment = .center
        pipView.addSubview(timeLabel)
        timeLabel.snp.makeConstraints { make in
            make.leading.trailing.equalToSuperview()
            make.top.equalToSuperview()
            make.height.equalToSuperview()
        }
    }
        func createDisplayLink() {
        timer = Timer(timeInterval: 0.1/60, repeats: true, block: { [weak self] _ in
            self?.refresh()
        })
        RunLoop.current.add(timer!, forMode: RunLoop.Mode.common)
        timer?.fire()
    }
        // MARK: - init
            // MARK: - utils
    func reloadTime() {
        let date = Date()
        let formatter = DateFormatter()
        formatter.dateFormat = dateFormatStr
        self.timeLabel.text = formatter.string(from: date)
    }
        // MARK: - action
        func refresh() {
        reloadTime()
    }
        override func handleEnterPipAction() {
        super.handleEnterPipAction()
        if pipView.isPictureInPictureActive() {
            pipView.stopPictureInPicture()
        } else {
            pipView.startPictureInPicture(withRefreshInterval: 0.1/60.0)
        }
    }
        // MARK: - other
  }

《每日英语听力》画中画的实现

class MWPipWindowVC: UIViewController {
    func setupTextPlayerView(on targetView: UIView) {
        targetView.addSubview(textPlayView)
        textPlayView.text = text1
                textPlayView.snp.makeConstraints { make in
            make.centerY.equalTo(targetView.snp.centerY)
            make.leading.trailing.equalToSuperview()
            make.height.equalTo(250.0)
        }
    }
       fileprivate func setupTimer() {
        timer = Timer(timeInterval: 2.0, repeats: true, block: { [weak self] _ in
            self?.handleTimerAction()
        })
        RunLoop.current.add(timer!, forMode: RunLoop.Mode.common)
        timer?.fire()
    }
    // MARK: - utils
        // MARK: - action
    func handleTimerAction() {
        let dataList = [text1, text2, text3, text4, text5]
        count += 1
        let index = count % 5
        let str = dataList[index]
        textPlayView.text = str
    }
  }
extension MWPipWindowVC: AVPictureInPictureControllerDelegate {
    func pictureInPictureControllerWillStartPictureInPicture(_ pictureInPictureController: AVPictureInPictureController) {
        activeCustomPlayerVCs.insert(self)
        enterPipBtn?.isHidden = true
        if let window = UIApplication.shared.windows.first {
            setupTextPlayerView(on: window)
        }
    }

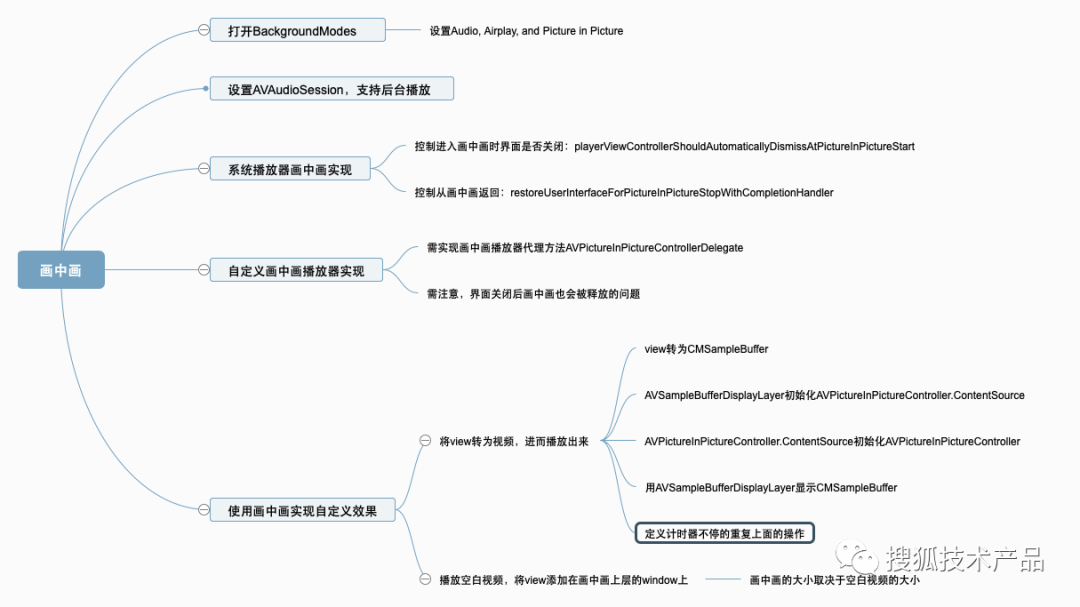

    xxx
}
