从单体到微服务，腾讯文档微服务网关工程化的演进实践

01

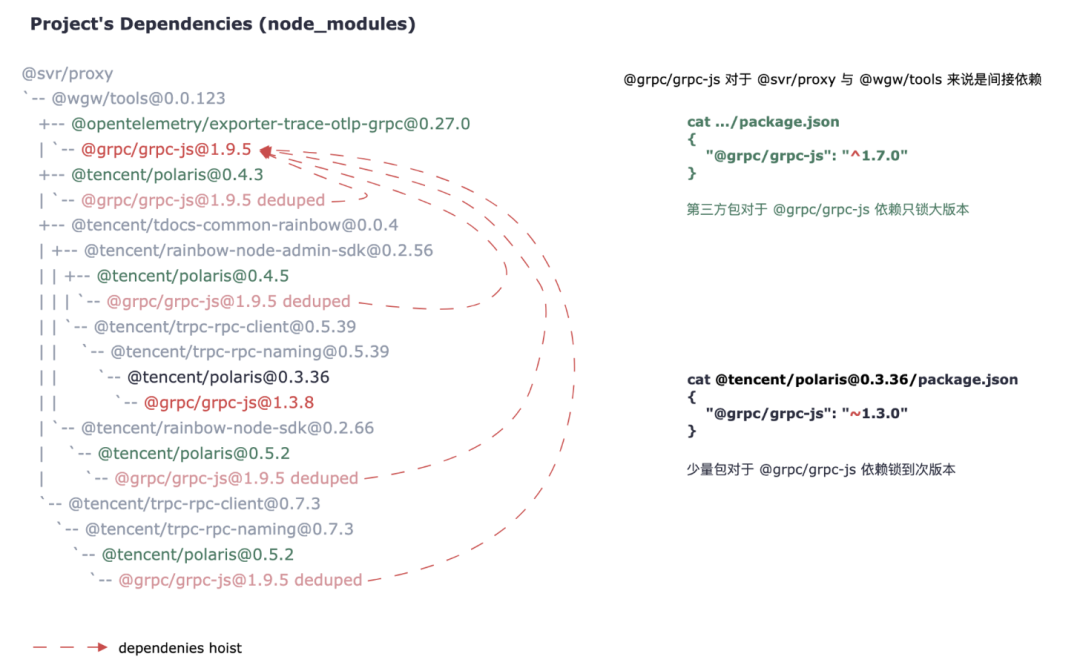

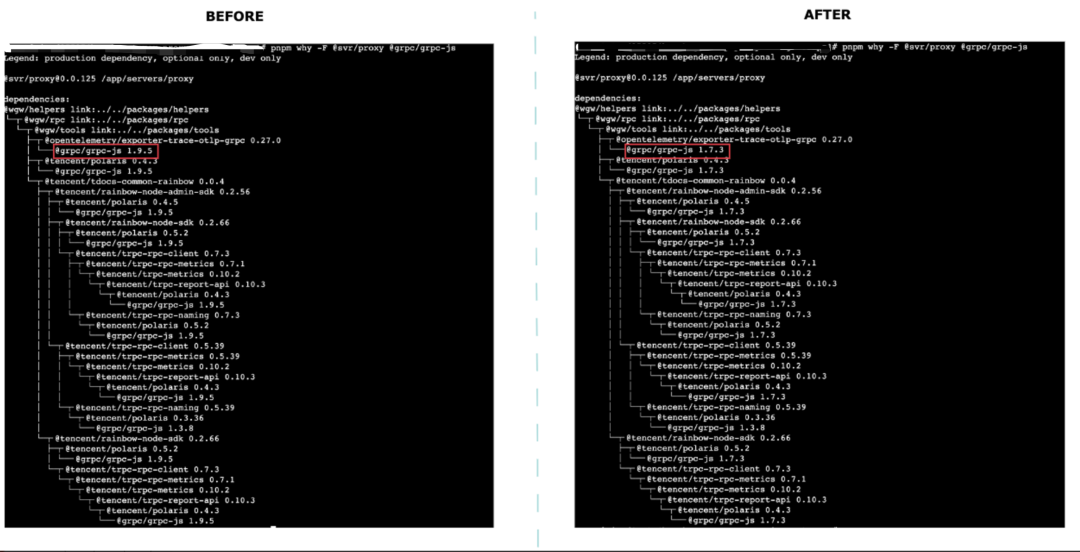

@svr/proxy@0.0.123 /app`-- @wgw/tools@0.0.123  +-- @opentelemetry/exporter-trace-otlp-grpc@0.27.0  | `-- @grpc/grpc-js@1.9.5  +-- @tencent/polaris@0.4.3  | `-- @grpc/grpc-js@1.9.5  deduped  +-- @tencent/tdocs-common-rainbow@0.0.4  | +-- @tencent/rainbow-node-admin-sdk@0.2.56  | | +-- @tencent/polaris@0.4.5  | | | `-- @grpc/grpc-js@1.9.5  deduped  | | `-- @tencent/trpc-rpc-client@0.5.39  | |   `-- @tencent/trpc-rpc-naming@0.5.39  | |     `-- @tencent/polaris@0.3.36     | |       `-- @grpc/grpc-js@1.3.8  | `-- @tencent/rainbow-node-sdk@0.2.66  |   `-- @tencent/polaris@0.5.2  |     `-- @grpc/grpc-js@1.9.5  deduped  `-- @tencent/trpc-rpc-client@0.7.3    `-- @tencent/trpc-rpc-naming@0.7.3      `-- @tencent/polaris@0.5.2 // ^0.5.2        `-- @grpc/grpc-js@1.9.5  deduped
根目录的 @grpc/grpc-js 的依赖就是 1.9.5

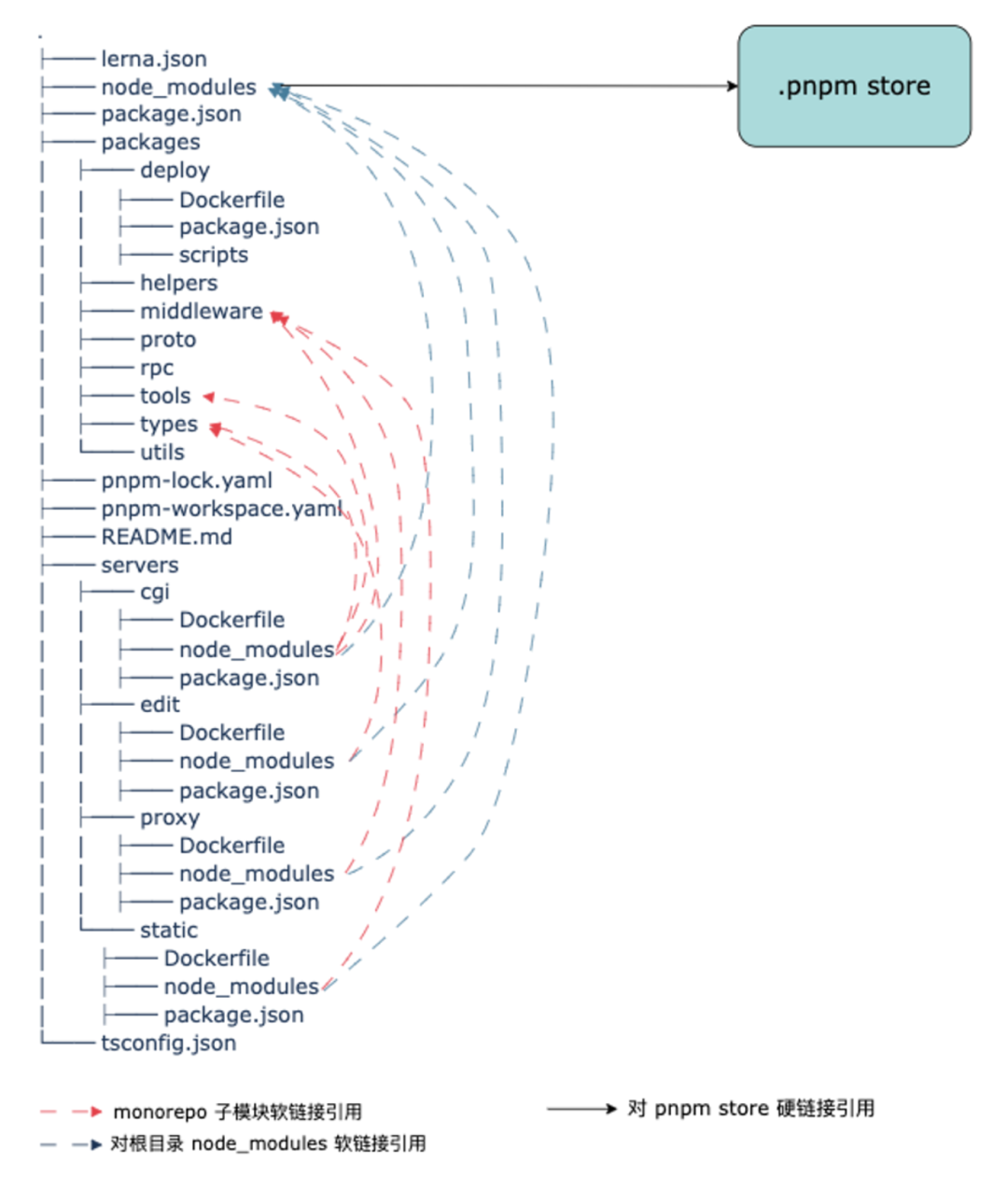

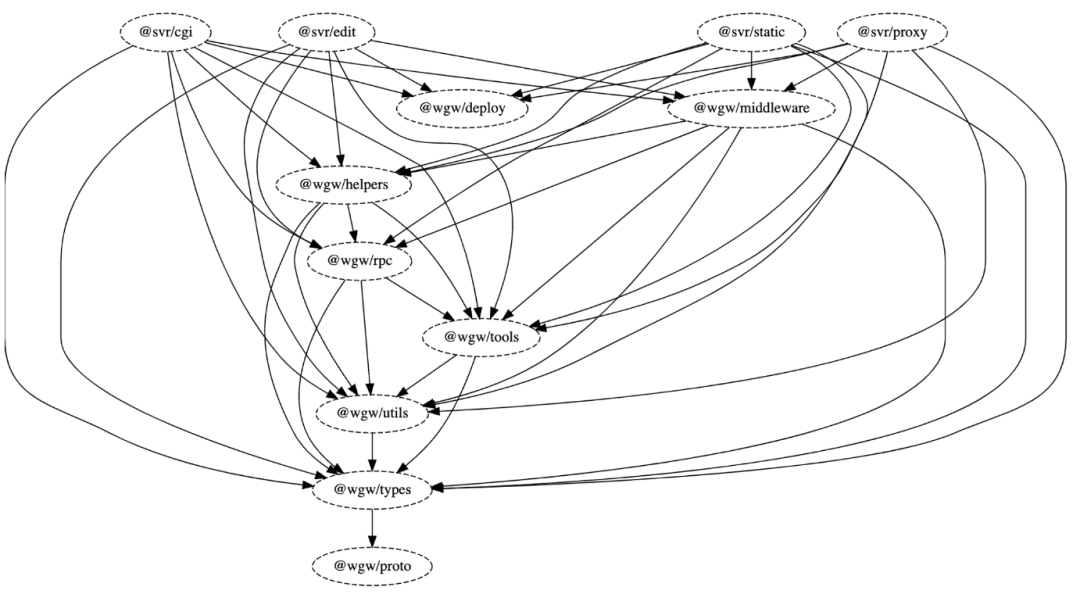

> tree -L 2 -I "node_modules".├── lerna.json├── package.json├── packages -- 这里是四个微服务共用的包逻辑 @wgw/xxx│   ├── deploy│   ├── helpers│   ├── middleware│   ├── proto│   ├── rpc│   ├── tools│   ├── types│   └── utils├── README.md├── servers -- 四个微服务的服务入口 @svr/xxx│   ├── cgi│   ├── edit│   ├── proxy│   └── static├── tsconfig.base.json├── tsconfig.build.json├── tsconfig.json└── yarn.lock

02

03

COPY . .

FROM base AS topdepWORKDIR /RUN mkdir node_modules packagesCOPY node_modules/ node_modulesCOPY packages/ packages
FROM topdep as svrWORKDIR /usr/appCOPY ["pnpm-*.yaml", ".npmrc", "./"]
COPY "servers/${APP}/" .

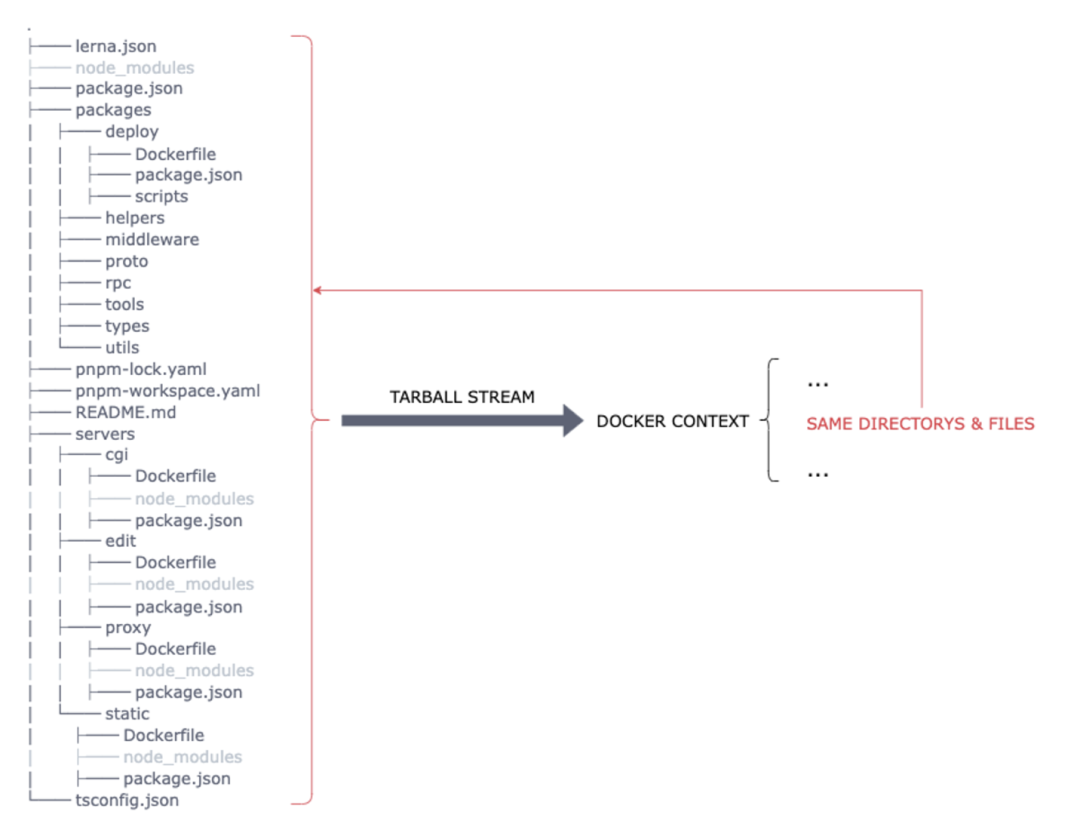

tar --exclude='node_modules' --exclude='.git' -cf - ../../ | docker build -f servers/proxy/Dockerfile.context - -t contextproxysvr

// .... 这里只展示入口逻辑
async function main(cli) {  const projectPath = dirname(cli.dockerFile)
  // https://pnpm.io/filtering  const [dependencyFiles, packageFiles, metaFiles] = await Promise.all([    getFilesFromPnpmSelector(`{${projectPath}}^...`, cli.root, {      extraPatterns: cli.extraPatterns    }),    getFilesFromPnpmSelector(`{${projectPath}}`, cli.root, {      // 本包目录下除了 Dockerfile 都复制      extraPatterns: cli.extraPatterns.concat([`!${cli.dockerFile}`])    }),    getMetafilesFromPnpmSelector(`{${projectPath}}...`, cli.root, {      extraPatterns: cli.extraPatterns    })  ])
  await withTmpDir(async (tmpdir) => {    await Promise.all([      fs.copyFile(cli.dockerFile, join(tmpdir, 'Dockerfile')),      copyFiles(dependencyFiles, join(tmpdir, 'deps')),      copyFiles(metaFiles, join(tmpdir, 'meta')),      copyFiles(packageFiles, join(tmpdir, 'pkg'))    ])
    const files = await getFiles(tmpdir)    if (cli.listFiles) {      for (const path of files) console.log(path)    } else {      await pipe(createTar({ gzip: true, cwd: tmpdir }, files), process.stdout)    }  })}
// ...

# 复制构建后的代码COPY ./meta .COPY ./deps .COPY ./pkg .RUN --mount=type=cache,id=pnpm-store,target=/root/pnpm-store\  pnpm config set store-dir /root/pnpm-store && pnpm install --filter "{${PACKAGE_PATH}}..."\    --frozen-lockfile\    --prod\    --ignore-scripts\    --unsafe-perm

package-import-method=copy

04

由于依赖被打平，B 依赖被提升到 node_modules 的一级目录
node_modules├── A@1.0.0├── B@1.0.0└── C@1.0.0    └── node_modules        └── B@2.0.0
项目只引用了 A 和 C，但是如果代码里面写了引用 B 的代码，也是可以引用到的。{  "dependencies": {    "A": "^1.0.0",    "C": "^1.0.0"  }}

// 类型信息是我根据 pnpm 源码找到添加上去的, 可以帮助编写逻辑/** * @typedef PackageInfo * @type {object} * @property {string} name * @property {string} version * @property {string} description * @property {string} main * @property {object} scripts * @property {string} author * @property {string} license * @property {object} dependencies * @property {object} devDependencies * @property {object} optionalDependencies * @property {object} peerDependencies */
/** * @typedef LockfileProjectSnapshot Map 类型都不是真正的 Map，只是对象 * @type {object} * @property {Map<string, string>} specifiers * @property {Map<string, string>} dependencies * @property {Map<string, string>} devDependencies * @property {Map<string, string>} optionalDependencies * @property {object} dependenciesMeta * @property {string} publishDirectory */
/** * @typedef Lockfile Map 类型都不是真正的 Map，只是对象 * @type {object} * @property {Map<string, LockfileProjectSnapshot>} importers 引包入口 * @property {string | number} lockfileVersion * @property {LockfileProjectSnapshot} packages */
/** * @typedef ReadPackageContext * @type {object} * @property {function} log */

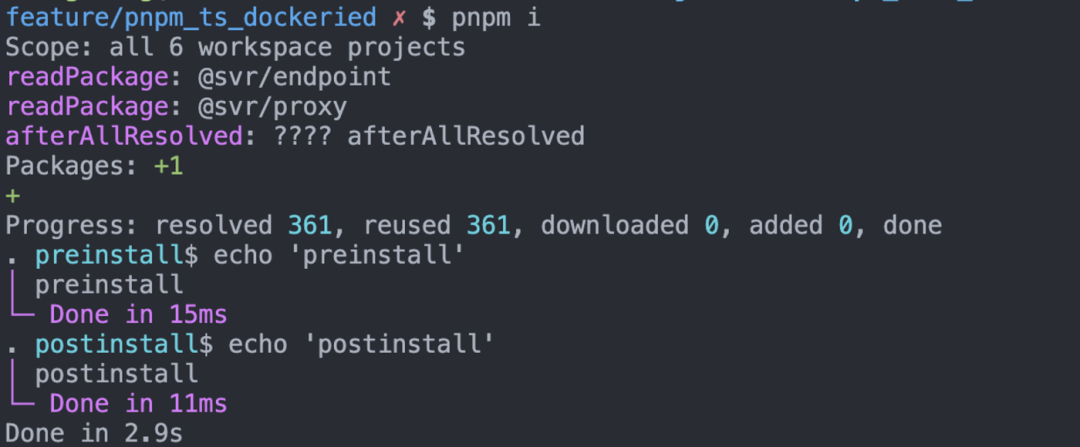

/** * Will be called after parse package dependencies * @param {PackageInfo} pkg  * @param {ReadPackageContext} context  * @returns  */function readPackage(pkg, context) {  // 解决直接依赖版本  if (pkg && pkg.dependencies && pkg.dependencies['@grpc/grpc-js']) {    const grpcVersion = pkg.dependencies['@grpc/grpc-js']    if (compareVersion(grpcVersion, '1.7.3') >= 1) {      pkg.dependencies['@grpc/grpc-js'] = '1.7.3'      context.log(`Modifying the @grpc/grpc-js package(which greater than 1.7.3) to be version 1.7.3 in ${pkg.name}`)    }  }  return pkg}
/** * Will be called before preinstall to modify lockfile to lock package version * @param {Lockfile} lockfile  * @param {ReadPackageContext} context  * @returns  */function afterAllResolved(lockfile, context) {  // 直接依赖从上面 readPackage 里面来解决  // 这里是解决间接依赖的问题  /**   * 以下逻辑：   * 1. 检查所有包生产依赖有没有依赖到 @grpc/grpc-js,如有则判断版本是否超过 1.7.3,   *    如超过则强行修改依赖为 1.7.3(因为不希望引到超过这个版本,超过这个版本会有 TCP 占用问题)   * 2. 检查包本身的信息是否是 @grpc/grpc-js 这个包，如果超过则删除   * 3. 添加 @grpc/grpc-js/1.7.3 版本的 entry 信息   */  if (lockfile.packages) {    const allPackageNames = Object.keys(lockfile.packages)    for (const packageName of allPackageNames) {      const packageInfo = lockfile.packages[packageName]      const packageDependencies = packageInfo.dependencies      if (packageName.includes('@grpc/grpc-js')) {        const grpcVersionMatchRes = packageName.match(/\\d+\\.\\d+\\.\\d+/)        const grpcVersion = grpcVersionMatchRes[0]        if (compareVersion(grpcVersion, '1.7.3') >= 1) {          delete lockfile.packages[packageName]        }      }      if (packageDependencies && packageDependencies['@grpc/grpc-js'] !== undefined) {        packageGRPCDependencyVersion = packageDependencies['@grpc/grpc-js']        // 如果版本比 1.7.3 低则不修改, 如果高于 1.7.3 版本则修改为 1.7.3        if (compareVersion(packageGRPCDependencyVersion, '1.7.3') >= 1) {          packageDependencies['@grpc/grpc-js'] = '1.7.3'        }      }    }    // 给 packages 添加 @grpc/[email protected] 版本 entry    lockfile.packages['/@grpc/grpc-js/1.7.3'] = grpcLockInfoEntry('1.7.3')  }  context.log('Modifying the @grpc/grpc-js package(which greater than 1.7.3) to be version 1.7.3')  return lockfile}
...
module.exports = {  hooks: {    readPackage,    afterAllResolved  }}

05
