前言
在vue3中使用gasp去实现一个星之卡比的输入框，实现对输入框中的内容进行正则判断，根据正则结果实现不同的动画效果。
本组件是根据gasp官网的案例进行修改copy的有兴趣的话可以自己去对应的官网看看（ps:官网的是tsx的版本的，我这改成了vue3.2的setup语法糖组件）https://codepen.io/collection/naMaNQ

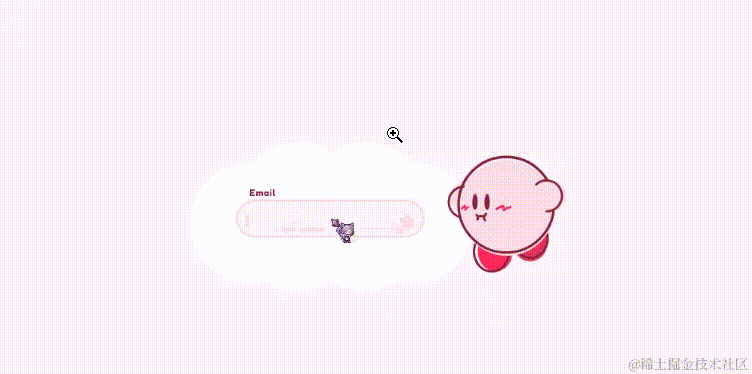

效果图
技术栈
| 技术栈 | 官网 |
|---|---|
| vue3 | https://cn.vuejs.org/ |
| gasp | https://gsap.com/ |

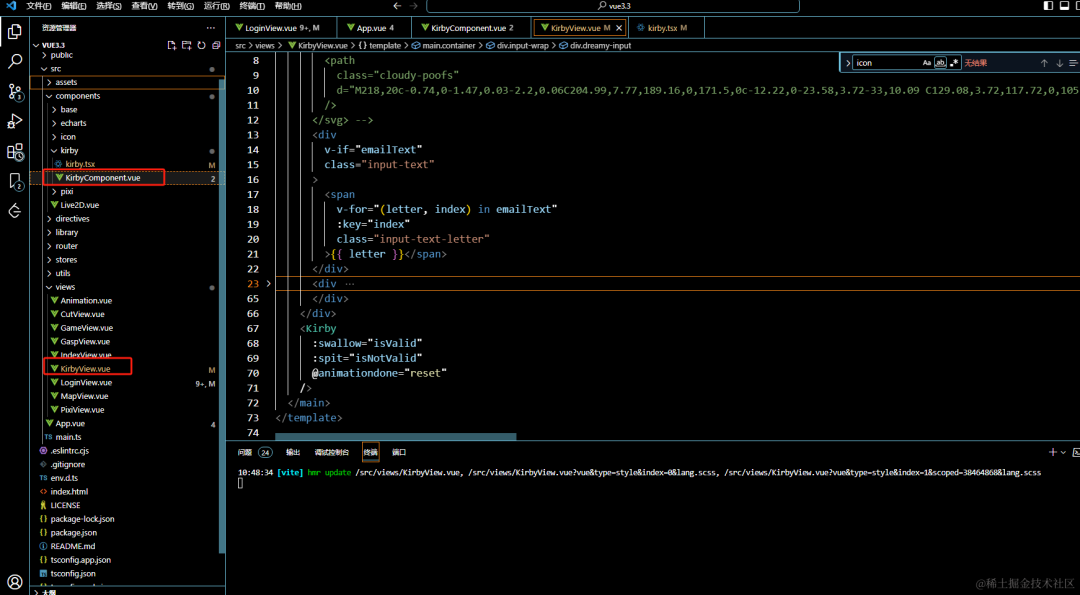

代码结构
一、 星之卡比外观svg的绘制
外观没啥好说的直接复制就行了
//KirbyComponent.vue<template><div class="kirby-wrap"><svg id="kirby" class="kirby" viewBox="0 0 200 200"><use ref="star" href="#star" class="kirby-star-spit" /><defs><pathref="bodySwallow"d="M167.58,120.58c0,18-6,30.75-62.29,29.58C49,149,43,138.58,43,120.58S70.89,85,105.29,85 S167.58,102.59,167.58,120.58z"></path><pathid="star"class="kirby-star"d="M119.43,124.74l4.63-5.32a4.08,4.08,0,0,0-2.39-6.7l-5.23-1a.9.9,0,0,1-.56-.39l-4.67-7.69a4.28,4.28,0,0,0-7.27,0l-4.68,7.69a.85.85,0,0,1-.56.39l-5.23,1a4.09,4.09,0,0,0-2.39,6.7l4.63,5.32a.77.77,0,0,1,.18.72l-1.51,6a4.19,4.19,0,0,0,5.82,4.73l7-3a.89.89,0,0,1,.68,0l7,3a4.19,4.19,0,0,0,5.82-4.73l-1.51-6A.82.82,0,0,1,119.43,124.74Z"></path></defs><g id="legLeft" ref="legRight"><ellipse class="kirby-foot" cx="90" cy="141.5" rx="23" ry="26"></ellipse><ellipse class="kirby-stroke" cx="85" cy="141.5" rx="23" ry="26"></ellipse></g><gid="legRight"data-svg-origin="102 97.5"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><ellipse class="kirby-foot" cx="138" cy="134.5" rx="23" ry="26"></ellipse><ellipse class="kirby-stroke" cx="138" cy="129.5" rx="23" ry="26"></ellipse></g><gid="armLeft"ref="armLeft"data-svg-origin="100 97.5"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><circle id="armLeft-2" class="kirby-body" cx="51.5" cy="76" r="20.5"></circle><circle class="kirby-stroke" cx="50.5" cy="82" r="20.5"></circle></g><gid="body"ref="body"data-svg-origin="43 153"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><pathclass="kirby-body"id="bodyFill"ref="bodyFill"d="M159,95.5 C159,127.25637 133.25637,153 101.5,153 69.74363,153 44,127.25637 44,95.5 44,63.74363 69.74363,38 101.5,38 133.25637,38 159,63.74363 159,95.5 z"></path><pathclass="kirby-stroke"id="bodyStroke"ref="bodyStroke"d="M158,91.5 C158,123.25637 132.25637,149 100.5,149 68.74363,149 43,123.25637 43,91.5 43,59.74363 68.74363,34 100.5,34 132.25637,34 158,59.74363 158,91.5 z"></path></g><gid="armRight"ref="armRight"data-svg-origin="101 97.49999618530273"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><path class="kirby-body" d="M141,58.73A20.5,20.5,0,1,1,154.68,94.5"></path><path class="kirby-stroke" d="M136,58.73A20.5,20.5,0,1,1,149.68,94.5"></path></g><gid="face"ref="face"data-svg-origin="72 125.12000274658203"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><pathid="eyeRight"ref="eyeRight"class="kirby-eye"d="M84,84.53c0,5.8-1.57,9.47-3.5,9.47S77,90.33,77,84.53,78.57,73,80.5,73,84,78.73,84,84.53Z"data-svg-origin="80.5 90"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></path><pathid="eyeLeft"ref="eyeLeft"class="kirby-eye"d="M68,84.53c0,5.8-1.57,9.47-3.5,9.47S61,90.33,61,84.53,62.57,73,64.5,73,68,78.73,68,84.53Z"data-svg-origin="64.5 90"transform="matrix(1,0,0,1,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></path><pathid="eyeRightClosed"ref="eyeRightClosed"class="kirby-stroke"d="M80.69,125.12c.37-1.41,1.89-3.8,4-6.35a22.84,22.84,0,0,1,5.61-5.14"data-svg-origin="85.49500274658203 125.12000274658203"transform="matrix(1,0,0,0,0,125.12)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></path><pathid="eyeLeftClosed"ref="eyeLeftClosed"class="kirby-stroke"d="M55.05,113.61c1.33.61,3.42,2.52,5.56,5.07a23.08,23.08,0,0,1,4.09,6.42"data-svg-origin="59.87499809265137 125.0999984741211"transform="matrix(1,0,0,0,0,125.1)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></path><g ref="cheeks"><pathid="cheekRight"class="kirby-blush kirby-stroke"d="M93,92.94A22.41,22.41,0,0,1,101.66,89l1.09,5.41s2.74-2.94,8.66-3.93"></path><pathid="cheekLeft"class="kirby-blush kirby-blush-small kirby-stroke"d="M47,92.94A11,11,0,0,1,51.19,89l.52,5.41a8,8,0,0,1,4.19-3.93"></path></g></g><pathid="mouth"ref="mouth"class="kirby-stroke"d="M77,98c0,1.93-2.12,3.5-4.5,3.5S68,99.93,68,98"></path><gid="mouthOpen"ref="mouthOpen"class="kirby-mouth-open"data-svg-origin="71 103"transform="matrix(0,0,0,0,71,103)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><pathclass="kirby-stroke kirby-mouth-open-inner"d="M94,105.69c0,14.36-11,23.31-22,23.31s-18-9-18-23.31S61,77,72,77,94,91.33,94,105.69Z"></path><pathclass="kirby-stroke kirby-mouth-open-tongue"d="M72,129a22,22,0,0,0,18.91-11.18C90,109.51,82.8,101.07,74,101.07c-9.39,0-17,9.6-17,18.41,0,.11,0,.21,0,.32A16.16,16.16,0,0,0,72,129Z"></path></g><gid="mouthFull"ref="mouthFull"class="kirby-mouth-full"data-svg-origin="73.31500244140625 101.76000213623047"transform="matrix(0,0,0,0,73.315,101.76)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><pathclass="kirby-stroke"d="M68.45,101.5a6.42,6.42,0,0,1,4-1,7.1,7.1,0,0,1,4,1"></path><pathclass="kirby-stroke kirby-mouth-cheek"d="M78.07,106.19a5.17,5.17,0,0,1-1.2-4.75,5.63,5.63,0,0,1,2.76-4.11"></path><pathclass="kirby-stroke kirby-mouth-cheek"d="M67,99a4,4,0,0,1,1.5,2.76,4.31,4.31,0,0,1-.46,3.15"></path></g><pathid="mouthFrown"ref="mouthFrown"class="kirby-stroke"d="M70,133.5a2.2,2.2,0,0,1,2-1,2.4,2.4,0,0,1,2,1"data-svg-origin="72 132.99735260009766"transform="matrix(1,0,0,0,0,132.99735)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></path><gid="hat"ref="hat"data-svg-origin="0 0"transform="matrix(0,0,0,0,0,0)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></g><gid="envelope"ref="envelope"data-svg-origin="164.17000579833984 54"transform="matrix(0,0,0,0,164.17001,64)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"><rectclass="kirby-envelope"x="130.99"y="9"width="67.5"height="45"rx="10"></rect><rectclass="kirby-stroke"x="129.85"y="3"width="67.5"height="45"rx="10"></rect><polyline class="kirby-stroke" points="131.85 10 163.6 31.5 195.35 10"></polyline><pathclass="kirby-envelope-star kirby-stroke"ref="envelopeStar"d="M170,31l2.48-2.93a2.26,2.26,0,0,0-1.28-3.68l-2.8-.56a.46.46,0,0,1-.3-.22l-2.51-4.23a2.26,2.26,0,0,0-3.89,0l-2.51,4.23a.46.46,0,0,1-.3.22l-2.8.56a2.26,2.26,0,0,0-1.28,3.68L157.25,31a.45.45,0,0,1,.1.4l-.81,3.32a2.26,2.26,0,0,0,3.12,2.6l3.76-1.67a.48.48,0,0,1,.37,0l3.76,1.67a2.26,2.26,0,0,0,3.12-2.6l-.81-3.32A.45.45,0,0,1,170,31Z"data-svg-origin="163.64500427246094 27.894429206848145"transform="matrix(0,0,0,0,163.645,27.89443)"style="translate: none; rotate: none; scale: none; transform-origin: 0px 0px"></path></g></svg></div></template><script></script><style lang="scss">$black: #87213c;$white: #fff;$primary-color: #f9dde3;$primary-color-tint: #fcf2f5;$secondary-color: #ff2961;$accent-color: #fae798;$mail-color: #326dcc;$star-sparkly-color: #b8d7ff;$primary-font: 'Fredoka One', sans-serif;:root {--black: #{$black};--white: #{$white};--primary-color: #{$primary-color};--primary-color-tint: #{$primary-color-tint};--secondary-color: #{$secondary-color};--accent-color: #{$accent-color};--mail-color: #{$mail-color};--star-color: #{$accent-color};--star-sparkly-color: #{$star-sparkly-color};}@import url('https://fonts.googleapis.com/css2?family=Fredoka+One&display=swap');* { box-sizing: border-box; }body {display: grid;place-items: center;min-height: 100vh;background-color: var(--primary-color-tint);font-size: 16px;line-height: 1;font-family: $primary-font;}.container {display: grid;grid-template-columns: 2fr 1fr;align-items: center;width: 400px;max-width: 400px;}.input-text {position: absolute;z-index: 5;width: 17rem;font-size: 1.25rem;line-height: 1.5;color: var(--black);transform: translate(1rem, 0.625rem);overflow: hidden;&-letter {display: inline-block;transform-origin: center bottom;}}.input-wrap {position: relative;}.cloudy {position: absolute;top: 50%;left: 50%;width: 150%;transform: translate(-50%, -50%);&-poofs {fill: var(--white);}}.fade {&-enter-active,&-leave-active {transition: 0.3s;}&-enter-from,&-leave-to {opacity: 0;}}.dreamy-input {--offset-top: 0.1875rem;--offset-left: -0.125rem;--control-height: 3.125rem;position: relative;&::after {content: '';position: absolute;top: var(--offset-top);left: var(--offset-left);height: 100%;width: 100%;border: 3px solid var(--black);pointer-events: none;transition: border 0.5s ease-in-out;}&::after,&-control {border-radius: var(--control-height);}&-control {width: 15.625rem;height: var(--control-height);padding: 0 calc(1rem + var(--control-height)) 0 1rem;border: 0;background-color: var(--primary-color);font-family: $primary-font;font-size: 1.25rem;color: var(--black);caret-color: var(--secondary-color);transition: background-color 0.5s ease-in-out;&:focus {outline: none;}&:disabled {background-color: var(--primary-color-tint);}}&:focus-within {&::after {border-color: var(--secondary-color);}}&-label,&-error {position: absolute;left: 1rem;font-size: 0.75rem;letter-spacing: 0.05em;}&-label {top: -0.75rem;color: var(--black);}&-error {bottom: -1.5rem;color: var(--secondary-color);}&-button {display: grid;place-items: center;position: absolute;top: calc(var(--offset-top) + 3px);right: 0;height: var(--control-height);width: var(--control-height);padding: 0;border: 0;background-color: transparent;color: var(--white);cursor: pointer;transition: 0.4s ease-in-out;&-star {fill: currentColor;stroke: var(--star-stroke, transparent);stroke-width: 3px;}&-svg {width: 40%;overflow: visible;}&:focus {outline: none;color: var(--secondary-color);}&:hover {--star-stroke: var(--black);transform: scale(1.2);color: var(--accent-color);}}&.disabled {&::after {border-color: var(--primary-color);}.dreamy-input-button {color: var(--primary-color);}}}</style><style lang="scss" scoped>.kirby {position: relative;z-index: 5;display: inline-block;height: 120px;width: 120px;overflow: visible;}.kirby-stroke {stroke: var(--black);stroke-width: 3px;stroke-miterlimit: 10;stroke-linecap: round;stroke-linejoin: round;fill: none;}.kirby-body {fill: var(--primary-color);}.kirby-mouth-open-tongue,.kirby-foot {fill: var(--secondary-color);}.kirby-hat-dark,.kirby-mouth-open-inner,.kirby-eye {fill: var(--black);}.kirby-blush {stroke: var(--secondary-color);}.kirby-blush-small {stroke-width: 2.5px;}.kirby-star {stroke-width: 3px;stroke: currentColor;fill: var(--star-color);}.kirby-star-splashy {color: transparent;}.kirby-star-spit {color: var(--black);}.kirby-hat-band {fill: var(--accent-color);}.kirby-hat {fill: var(--mail-color);}.kirby-envelope {fill: var(--white);}.kirby-envelope-star {fill: var(--primary-color);}</style>
二、引入gasp插件以及配置获取节点的ref
//KirbyComponent.vueimport { ref, watch, type Ref, onMounted } from 'vue'import { gsap } from 'gsap'import { MorphSVGPlugin } from 'gsap/MorphSVGPlugin'//gasp的额外插件需要用此方法注册gsap.registerPlugin(MorphSVGPlugin)/**接收父级组件传递过来的参数用来执行对应的动画 */const props = defineProps({swallow: Boolean,spit: Boolean})const emits = defineEmits(['animationdone'])//用于获取svg节点const bodyPathFill: Ref<morphSVGType> = ref(void 0);const bodyPathStroke: Ref<morphSVGType> = ref(void 0);const starIsVisible = ref(0);const starPosition: Ref<positionType> = ref(null);const bodySwallow = ref(null) as anyconst mouth = ref(null)const mouthOpen = ref(null)const face = ref(null)const armLeft = ref(null)const armRight = ref(null)const legRight = ref(null)const mouthFull = ref(null)const body = ref(null)const envelope = ref(null)const envelopeStar = ref(null)const eyeLeft = ref(null)const eyeRight = ref(null)const eyeLeftClosed = ref(null)const eyeRightClosed = ref(null)const hat = ref(null)const star = ref(null)const mouthFrown = ref(null)const cheeks = ref(null)const bodyFill: any = ref(null)const bodyStroke: any = ref(null)
三、动画方法
所有的关于星之卡比的动画都在这里了（不包含输入框文字的动画），gasp的具体属性以及方法可以去官网看看文档，这边不做详细解释了
//KirbyComponent.vue**吸取数据动画 */function animateInhale() {const tlInhale = gsap.timeline()const delay = 0.1const tlMouth = gsap.timeline()tlMouth.to(mouth.value, {duration: delay,scale: 0}).to(mouthOpen.value, {duration: 0.5,scale: 1})const kirbyFace = gsap.to(face.value, {delay,duration: 0.5,rotation: 5,y: -20})const kirbyArmLeft = gsap.to(armLeft.value, {delay,duration: 0.7,rotation: 80})const kirbyArmRight = gsap.to(armRight.value, {delay,duration: 0.7,rotation: -15})const kirbyLegRight = gsap.to(legRight.value, {delay: delay + 1,duration: 1,rotation: -15})tlInhale.add(tlMouth, 0)tlInhale.add(kirbyFace, 0)tlInhale.add(kirbyArmLeft, 0)tlInhale.add(kirbyArmRight, 0)tlInhale.add(kirbyLegRight, 0)return tlInhale}/**身体吸取数据动画 */function animatePuffed() {const tlPuffed = gsap.timeline()const tlMouth = gsap.timeline()tlMouth.to(mouthOpen.value, {duration: 0.2,scale: 0}).to(mouthFull.value, {duration: 0.1,scale: 1,y: {duration: 0,value: 0} as any})const kirbyFace = gsap.to(face.value, {duration: 0.5,rotate: 0,y: 0})const kirbyBody = gsap.to(body.value, {duration: 1.5,ease: 'elastic',scale: 1.1})const kirbyArmLeft = gsap.to(armLeft.value, {duration: 0.3,rotate: 0})const kirbyArmRight = gsap.to(armRight.value, {duration: 1.5,ease: 'elastic',rotation: 0,x: 10})const kirbyLegRight = gsap.to(legRight.value, {duration: 0.6,rotation: 0,y: 10})tlPuffed.add(tlMouth, 0)tlPuffed.add(kirbyFace, 0)tlPuffed.add(kirbyBody, 0)tlPuffed.add(kirbyArmLeft, 0)tlPuffed.add(kirbyArmRight, 0)tlPuffed.add(kirbyLegRight, 0)return tlPuffed}/**吞下数据动画 */function animateSwallow() {const tlSwallow = gsap.timeline()const tlEyes = gsap.timeline()const tlMouth = gsap.timeline()const dur = {duration: 0.8,ease: 'elastic'}tlEyes.to([eyeLeft.value, eyeRight.value], {duration: 0.1,scaleY: 0,y: 20}).to([eyeLeftClosed.value, eyeRightClosed.value], {duration: 0.1,scaleY: 1,y: 0})tlMouth.to(mouthFull.value, {duration: 0.1,scaleY: 0,y: 35}).to(mouthFrown.value, {duration: 0.1,scaleY: 1,y: {duration: 0,value: 0} as any,onComplete: () => {starIsVisible.value = 2}})const kirbyCheeks = gsap.to(cheeks.value, {...dur,y: 40})const kirbyBody = gsap.to(body.value, {...dur,scale: 1})const bodyStroke = gsap.to(['#bodyStroke', '#bodyFill'], {...dur,morphSVG: bodySwallow.value})const kirbyArmLeft = gsap.to(armLeft.value, {...dur,rotation: 70,y: 50})const kirbyArmRight = gsap.to(armRight.value, {...dur,rotation: -50,x: 0,y: 50})tlSwallow.add(tlEyes, 0)tlSwallow.add(tlMouth, 0)tlSwallow.add(kirbyCheeks, 0)tlSwallow.add(kirbyBody, 0)tlSwallow.add(bodyStroke, 0)tlSwallow.add(kirbyArmLeft, 0)tlSwallow.add(kirbyArmRight, 0)return tlSwallow}/**邮件出现上升动画 */function animatePowerUp() {const tlPowerUp = gsap.timeline()const delay = 0.6const tlEnvelope = gsap.timeline()animateReset()const kirbyLegRight = gsap.to(legRight.value, {delay: delay + 1,duration: 1,rotation: -15})const kirbyHat = gsap.to(hat.value, {onStart: () => {starPosition.value = {x: -10,y: -85}starIsVisible.value = 6},startAt: {opacity: 1,scale: 0,y: 0},delay,duration: 0.6,ease: 'elastic',scale: 1})tlEnvelope.to(envelope.value, {startAt: {opacity: 1,scale: 0,y: 10},delay: delay + 0.3,duration: 0.6,ease: 'elastic',scale: 1}).to(envelopeStar.value, {startAt: {rotation: 500},duration: 1,rotation: 0,scale: 1}).to(envelope.value, {delay: 1,duration: 0.2,scaleY: 0.7}).to(envelope.value, {duration: 0.1,scaleY: 1,y: -5}).to(envelope.value, {duration: 1.5,ease: 'power2.inOut',opacity: 0,y: -110}).to(hat.value, {delay: 0.5,duration: 0.3,opacity: 0,scale: 0.7,y: -20}).to(legRight.value, {duration: 0.6,rotation: 0})tlPowerUp.add(kirbyLegRight, 0)tlPowerUp.add(kirbyHat, 0)tlPowerUp.add(tlEnvelope, 0)return tlPowerUp}/**重置动画 */function animateReset() {const tlEyes = gsap.timeline()const tlMouth = gsap.timeline()const dur = {delay: 0.2,duration: 1,ease: 'elastic'}tlEyes.to([eyeLeftClosed.value, eyeRightClosed.value], {delay: 0.2,duration: 0.1,scaleY: 0,y: -20}).to([eyeLeft.value, eyeRight.value], {duration: 0.2,scaleY: 1,y: {duration: 0.1,value: 0} as any})tlMouth.to(mouthFrown.value, {delay: 0.2,duration: 0.1,scaleY: 0,y: -35}).to(mouth.value, {duration: 0.1,scale: 1})gsap.to(cheeks.value, {...dur,y: 0})gsap.to('#bodyStroke', {...dur,morphSVG: bodyPathStroke.value})gsap.to('#bodyFill', {...dur,morphSVG: bodyPathFill.value})gsap.to(armLeft.value, {...dur,rotation: 0,y: 0})gsap.to(armRight.value, {...dur,rotation: 0,y: 0})gsap.to(legRight.value, {y: 0})}function animateStar(el: gsap.TweenTarget, done: () => void) {const tl = gsap.timeline({onComplete: () => {starIsVisible.value = 0done()}})gsap.set(el, {scale: 0,transformOrigin: 'center center'})if (starIsVisible.value > 2) {gsap.set(el, {...starPosition.value})tl.to(el, {delay: 'random(0, 0.5)',duration: 'random(0.7, 1.1)',opacity: 0,rotation: 'random(360, 720)',scale: 'random(0.3, 0.6)',x: `random(${starPosition.value!.x - 60}, ${starPosition.value!.x + 60})`,y: `random(${starPosition.value!.y - 60}, ${starPosition.value!.y + 60})`})} else {tl.to(el, {delay: 'random(0, 0.5)',duration: 0.7,rotation: 500,scale: 1,x: 'random(-120, 120)',y: 'random(-120, -50)'}).to(el, {duration: 1,ease: 'elastic',opacity: 0,scale: 2})}}/**吐出星星动画 */function animateSpit() {const tlSpit = gsap.timeline()const tlMouth = gsap.timeline()tlMouth.to(mouthFull.value, {duration: 0.05,scaleY: 0}).to(mouthOpen.value, {duration: 0.4,scale: 0.3}).to(star.value, {startAt: {opacity: 1,rotation: 0,scale: 0,transformOrigin: 'center center',x: -40,y: -20},delay: -0.2,duration: 1,ease: 'power2.inOut',rotation: 720,scale: 1,x: -350}).to(star.value, {duration: 0.2,scaleX: 0.9,transformOrigin: 'left center'}).to(star.value, {onStart: () => {starPosition.value = {x: -350,y: -20}starIsVisible.value = 6},duration: 0.2,opacity: 0,scaleX: 1,transformOrigin: 'left center'}).to(mouthOpen.value,{duration: 0.1,scale: 0},'-=1').to(mouth.value,{duration: 0.1,scale: 1},'-=0.9')const kirbyBody = gsap.to(body.value, {duration: 0.2,scale: 1})const kirbyArmRight = gsap.to(armRight.value, {duration: 0.7,x: 0})const kirbyLegRight = gsap.to(legRight.value, {duration: 0.6,rotation: 0,y: 0})tlSpit.add(tlMouth, 0)tlSpit.add(kirbyBody, 0)tlSpit.add(kirbyArmRight, 0)tlSpit.add(kirbyLegRight, 0)return tlSpit}/**添加样式方法，style中配置了就可以不执行这个方法 */function styleInject(css: string, ref?: { insertAt?: any } | undefined) {if (ref === void 0) ref = {}const insertAt = ref.insertAtif (!css || typeof document === 'undefined') {return}const head = document.head || document.getElementsByTagName('head')[0]const style = document.createElement('style') as anystyle.type = 'text/css'if (insertAt === 'top') {if (head.firstChild) {head.insertBefore(style, head.firstChild)} else {head.appendChild(style)}} else {head.appendChild(style)}if (style.styleSheet) {style.styleSheet.cssText = css} else {style.appendChild(document.createTextNode(css))}}
四、组件初始化以及对是否符合正则的对应动画执行方法
在onMounted钩子里面初始化星之卡比的外观
//KirbyComponent.vueonMounted(() => {bodyPathFill.value = MorphSVGPlugin.convertToPath(bodyFill.value) as anybodyPathStroke.value = MorphSVGPlugin.convertToPath(bodyStroke.value) as anygsap.set(mouthOpen.value, {transformOrigin: '17px 26px',scale: 0})gsap.set(mouthFull.value, {transformOrigin: 'center center',scale: 0})gsap.set(mouthFrown.value, {transformOrigin: 'center center',scaleY: 0})gsap.set(eyeLeft.value, {transformOrigin: 'center 17px'})gsap.set(eyeRight.value, {transformOrigin: 'center 17px'})gsap.set(eyeLeftClosed.value, {transformOrigin: 'center bottom',scaleY: 0})gsap.set(eyeRightClosed.value, {transformOrigin: 'center bottom',scaleY: 0})gsap.set(face.value, {transformOrigin: '25px bottom'})gsap.set(armLeft.value, {transformOrigin: '70px 42px'})gsap.set(armRight.value, {transformOrigin: '-35px 44px'})gsap.set(legRight.value, {transformOrigin: '-13px -6px'})gsap.set(body.value, {transformOrigin: 'left bottom'})gsap.set(bodyStroke.value, {transformOrigin: 'center bottom'})gsap.set(bodyFill.value, {transformOrigin: 'center bottom'})gsap.set(hat.value, {scale: 0,transformOrigin: 'center bottom'})gsap.set(envelope.value, {scale: 0,transformOrigin: 'center bottom',y: 10})gsap.set(envelopeStar.value, {scale: 0,transformOrigin: 'center center'})gsap.set(star.value, {scale: 0,transformOrigin: 'center center'})})
监听props中的值，根据值去动态执行相应的动画
//设置接收props的值const props = defineProps({swallow: Boolean,spit: Boolean})//动画结束向父组件传递结束信息const emits = defineEmits(['animationdone'])//监听props中的值，去执行对应方法watch(() => props.swallow, (newValue) => {if (newValue) {aswallow()}})watch(() => props.spit, (newValue) => {if (newValue) {aspit()}})//正则匹配为true时的动画function aswallow(): any {if (props.swallow) {animateInhale().then(animatePuffed as any).then(animateSwallow).then(animatePowerUp).then(() => {emits('animationdone')})}}//正则匹配为false时的动画function aspit(): any {if (props.spit) {console.log(2)animateInhale().then(animatePuffed).then(animateSpit).then(() => {emits('animationdone')})}}
五、输入框外观
//KirbyView.vue<template><main class="container"><div class="input-wrap"><svgclass="cloudy"viewBox="0 0 277 145"><pathclass="cloudy-poofs"d="M218,20c-0.74,0-1.47,0.03-2.2,0.06C204.99,7.77,189.16,0,171.5,0c-12.22,0-23.58,3.72-33,10.09 C129.08,3.72,117.72,0,105.5,0C87.84,0,72.01,7.77,61.2,20.06C60.47,20.03,59.74,20,59,20C26.42,20,0,46.42,0,79 c0,32.58,26.42,59,59,59c5.26,0,10.36-0.7,15.21-1.99C83.28,141.7,94,145,105.5,145c12.22,0,23.58-3.72,33-10.09 c9.42,6.37,20.78,10.09,33,10.09c11.5,0,22.22-3.3,31.29-8.99c4.85,1.29,9.95,1.99,15.21,1.99c32.58,0,59-26.42,59-59 C277,46.42,250.58,20,218,20z"/></svg><divv-if="emailText"class="input-text"><spanv-for="(letter, index) in emailText":key="index"class="input-text-letter">{{ letter }}</span></div><div:class="{ disabled: emailIsDisabled }"class="dreamy-input"><labelclass="dreamy-input-label"for="dreamyInput">Email</label><inputid="dreamyInput"v-model="emailValue":aria-describedby="isNotValid ? 'dreamyInputErr' : undefined":disabled="emailIsDisabled"autocomplete="off"class="dreamy-input-control"type="email"@keydown.enter="submitMail"><transition name="fade"><spanv-if="isNotValid"id="dreamyInputErr"class="dreamy-input-error">Please enter a valid email.</span></transition><buttonaria-label="Subscribe"class="dreamy-input-button"@click="submitMail"><svgclass="dreamy-input-button-svg"viewBox="0 0 35 35"><pathclass="dreamy-input-button-star"d="M29.36,23.14l4.63-5.32c2.08-2.39,0.77-6.08-2.39-6.7l-5.23-1.02c-0.23-0.05-0.44-0.19-0.56-0.39l-4.67-7.7 c-1.64-2.69-5.64-2.69-7.27,0l-4.67,7.7c-0.12,0.2-0.33,0.34-0.56,0.39L3.4,11.13c-3.16,0.62-4.47,4.31-2.39,6.7l4.63,5.32 c0.17,0.2,0.24,0.47,0.18,0.73L4.31,29.9c-0.83,3.32,2.61,6.12,5.82,4.74l7.03-3.03c0.22-0.09,0.47-0.09,0.68,0l7.03,3.03 c3.21,1.38,6.65-1.42,5.82-4.74l-1.51-6.04C29.12,23.61,29.18,23.34,29.36,23.14z"/></svg></button></div></div><Kirby:swallow="isValid":spit="isNotValid"@animationdone="reset"/></main></template><style lang="scss">$black: #87213c;$white: #fff;$primary-color: #f9dde3;$primary-color-tint: #fcf2f5;$secondary-color: #ff2961;$accent-color: #fae798;$mail-color: #326dcc;$star-sparkly-color: #b8d7ff;$primary-font: 'Fredoka One', sans-serif;:root {--black: #{$black};--white: #{$white};--primary-color: #{$primary-color};--primary-color-tint: #{$primary-color-tint};--secondary-color: #{$secondary-color};--accent-color: #{$accent-color};--mail-color: #{$mail-color};--star-color: #{$accent-color};--star-sparkly-color: #{$star-sparkly-color};}@import url('https://fonts.googleapis.com/css2?family=Fredoka+One&display=swap');* { box-sizing: border-box; }body {display: grid;place-items: center;min-height: 100vh;background-color: var(--primary-color-tint);font-size: 16px;line-height: 1;font-family: $primary-font;}.container {display: grid;grid-template-columns: 2fr 1fr;align-items: center;width: 400px;max-width: 400px;}.input-text {position: absolute;z-index: 5;width: 17rem;font-size: 1.25rem;line-height: 1.5;color: var(--black);transform: translate(1rem, 0.625rem);overflow: hidden;&-letter {display: inline-block;transform-origin: center bottom;}}.input-wrap {position: relative;}.cloudy {position: absolute;top: 50%;left: 50%;width: 150%;transform: translate(-50%, -50%);&-poofs {fill: var(--white);}}.fade {&-enter-active,&-leave-active {transition: 0.3s;}&-enter-from,&-leave-to {opacity: 0;}}.dreamy-input {--offset-top: 0.1875rem;--offset-left: -0.125rem;--control-height: 3.125rem;position: relative;&::after {content: '';position: absolute;top: var(--offset-top);left: var(--offset-left);height: 100%;width: 100%;border: 3px solid var(--black);pointer-events: none;transition: border 0.5s ease-in-out;}&::after,&-control {border-radius: var(--control-height);}&-control {width: 15.625rem;height: var(--control-height);padding: 0 calc(1rem + var(--control-height)) 0 1rem;border: 0;background-color: var(--primary-color);font-family: $primary-font;font-size: 1.25rem;color: var(--black);caret-color: var(--secondary-color);transition: background-color 0.5s ease-in-out;&:focus {outline: none;}&:disabled {background-color: var(--primary-color-tint);}}&:focus-within {&::after {border-color: var(--secondary-color);}}&-label,&-error {position: absolute;left: 1rem;font-size: 0.75rem;letter-spacing: 0.05em;}&-label {top: -0.75rem;color: var(--black);}&-error {bottom: -1.5rem;color: var(--secondary-color);}&-button {display: grid;place-items: center;position: absolute;top: calc(var(--offset-top) + 3px);right: 0;height: var(--control-height);width: var(--control-height);padding: 0;border: 0;background-color: transparent;color: var(--white);cursor: pointer;transition: 0.4s ease-in-out;&-star {fill: currentColor;stroke: var(--star-stroke, transparent);stroke-width: 3px;}&-svg {width: 40%;overflow: visible;}&:focus {outline: none;color: var(--secondary-color);}&:hover {--star-stroke: var(--black);transform: scale(1.2);color: var(--accent-color);}}&.disabled {&::after {border-color: var(--primary-color);}.dreamy-input-button {color: var(--primary-color);}}}</style><style lang="scss" scoped>.kirby {position: relative;z-index: 5;display: inline-block;height: 120px;width: 120px;overflow: visible;}.kirby-stroke {stroke: var(--black);stroke-width: 3px;stroke-miterlimit: 10;stroke-linecap: round;stroke-linejoin: round;fill: none;}.kirby-body {fill: var(--primary-color);}.kirby-mouth-open-tongue,.kirby-foot {fill: var(--secondary-color);}.kirby-hat-dark,.kirby-mouth-open-inner,.kirby-eye {fill: var(--black);}.kirby-blush {stroke: var(--secondary-color);}.kirby-blush-small {stroke-width: 2.5px;}.kirby-star {stroke-width: 3px;stroke: currentColor;fill: var(--star-color);}.kirby-star-splashy {color: transparent;}.kirby-star-spit {color: var(--black);}.kirby-hat-band {fill: var(--accent-color);}.kirby-hat {fill: var(--mail-color);}.kirby-envelope {fill: var(--white);}.kirby-envelope-star {fill: var(--primary-color);}</style>
六、配置输入框节点以及输入框文字移动动画
//KirbyView.vueimport { ref,nextTick } from 'vue';import Kirby from '@/components/kirby/KirbyComponent.vue';// import Kirby from '../components/kirby/kirby';//引入gasp插件import { gsap } from 'gsap'//配置输入框节点const emailValue = ref('');const emailIsDisabled = ref(false);const emailText = ref('');const isValid = ref(false);const isNotValid = ref(false);//输入框判断方法function submitMail() {if (emailValue.value) {const emailRegex = /^(([^<>()[\]\\.,;:\s@"]+(\.[^<>()[\]\\.,;:\s@"]+)*)|(".+"))@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\])|(([a-zA-Z\-0-9]+\.)+[a-zA-Z]{2,}))$/;isValid.value = emailRegex.test(emailValue.value);isNotValid.value = !isValid.value;emailText.value = emailValue.value.length > 15 ?emailValue.value.slice(0, 15) + '...' :emailValue.value;emailValue.value = '';emailIsDisabled.value = true;nextTick(animateText);}}//输入框文字吸入效果function animateText() {const tlJiggle = gsap.timeline({delay: 1,defaults: {duration: 0.1}});tlJiggle.to('.input-text-letter', {y: 'random(-6, 4)'}).to('.input-text-letter', {y: 'random(-6, 4)'}).to('.input-text-letter', {y: 'random(-6, 4)'}).to('.input-text-letter', {y: 'random(-6, 4)'}).to('.input-text-letter', {y: 0,duration: 0.1}).to('.input-text-letter', {delay: 0,duration: 0.5,ease: 'expo.in',x: 300,stagger: {amount: 0.3,from: 'end'}});}//重置动画flagfunction reset() {emailIsDisabled.value = false;isValid.value = false;isNotValid.value = false;emailText.value = '';}
代码地址
gitee:https://gitee.com/liu_soon/vue3.3
npm install
npm run dev
运行成功之后打开：http://localhost:5173/Kirby
结语
这个主要是学习gasp动画的，了解这篇文章能够较快的入门gasp这个技术。最主要的是这个输入框好看，而且适合用在博客上。
