“有办法让流程图动起来吗?”“当然有!”:一起用LogicFlow实现动画边

点击关注公众号,“技术干货” 及时达!

引言

在流程图中,边(Edge) 的主要作用是连接两个节点,表示从一个节点到另一个节点的关系或流程。在业务系统中,边通常代表某种逻辑连接,比如状态转移、事件触发、任务流动等。对于复杂的流程图,边不仅仅是两点之间的连接,它还可以传递信息、约束流程的顺序,并通过不同的样式或标记来表达不同的含义。

不同的场景下,边可能需要具备丰富的样式或交互,比如箭头表示方向、虚线表示条件判断、动画表示动态效果等。因此,灵活定义和实现自定义边对于流程图的可视化设计尤为重要。

LogicFlow的边

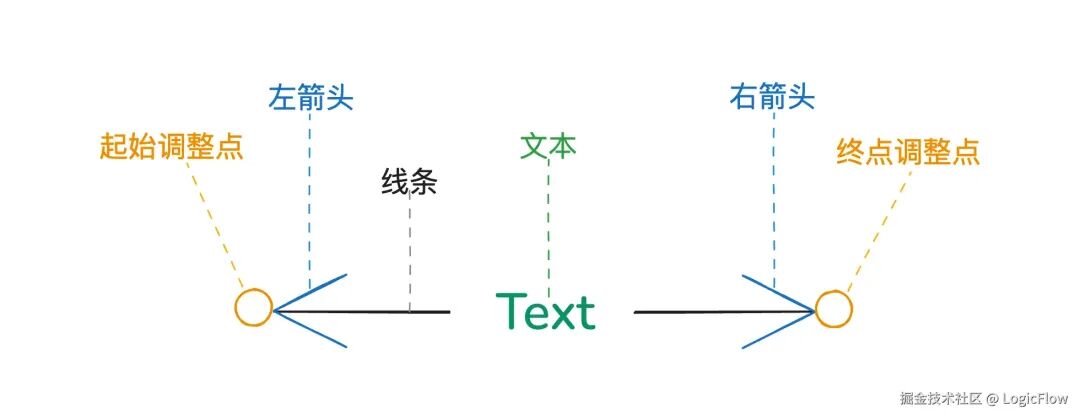

为了灵活适配不同场景下的需求,LogicFlow的边模型是由 线条、箭头、文本、调整点五个模块组成。用户可以继承基础边类,对边的线条、箭头、文本和调整点进行自定义。

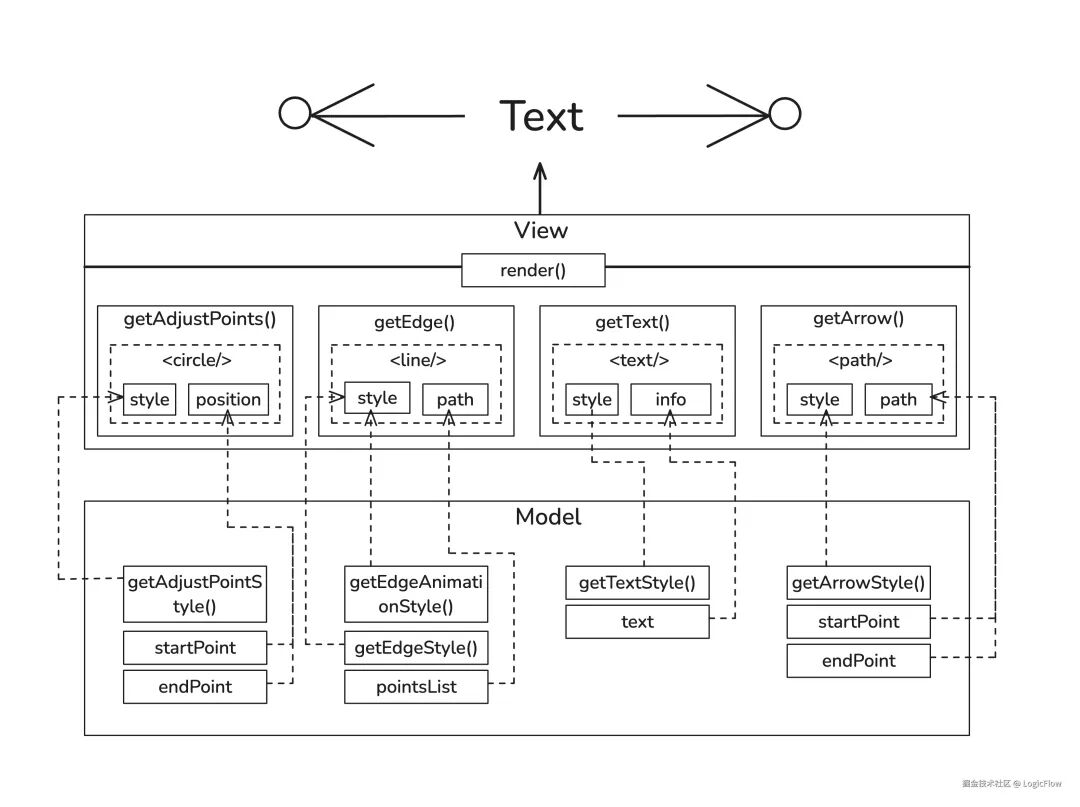

Image在技术实现上,LogicFlow设计了一个基础边模型BaseEdge,它定义了LogicFlow边的基本属性,如起点、终点、路径、样式等,并提供了操作这些属性的基本方法,提供逻辑处理和渲染的基础,通过继承基础边的数据类BaseEdgeModel和视图类BaseEdge,可以实现自定义边的逻辑和交互。

基础边:BaseEdge

属性方法简介

BaseEdgeModel中定义了一些核心属性,用于描述边的几何结构和样式。

属性释义
sourceNodeId起始节点Id
targetNodeId目标节点Id
startPoint起点信息,默认存储的是起始节点上连接该边锚点的坐标信息
endPoint终点信息,默认存储的是目标节点上连接该边锚点的坐标信息
text边文本信息,存储边上文本的内容和位置
properties自定义属性,用于存储不同业务场景下的定制属性
pointsList路径顶点坐标列表

围绕着这些核心属性,LogicFlow设计了支撑边运转的核心方法

方法用途
initEdgeData初始化边的数据和状态
setAnchors设置边的端点,startPoint和endPoint会在这个被赋值
initPoints设置边路径,pointsList会在这个阶段被赋值
formatText将外部传入的文本格式化成统一的文本对象

还有一些渲染使用的样式方法

方法用途
getEdgeStyle设置边样式
getEdgeAnimationStyle设置边动画
getAdjustPointStyle设置调整点样式
getTextStyle设置文本样式
getArrowStyle设置箭头样式
getOutlineStyle设置边外框样式
getTextPosition设置文本位置

运转过程

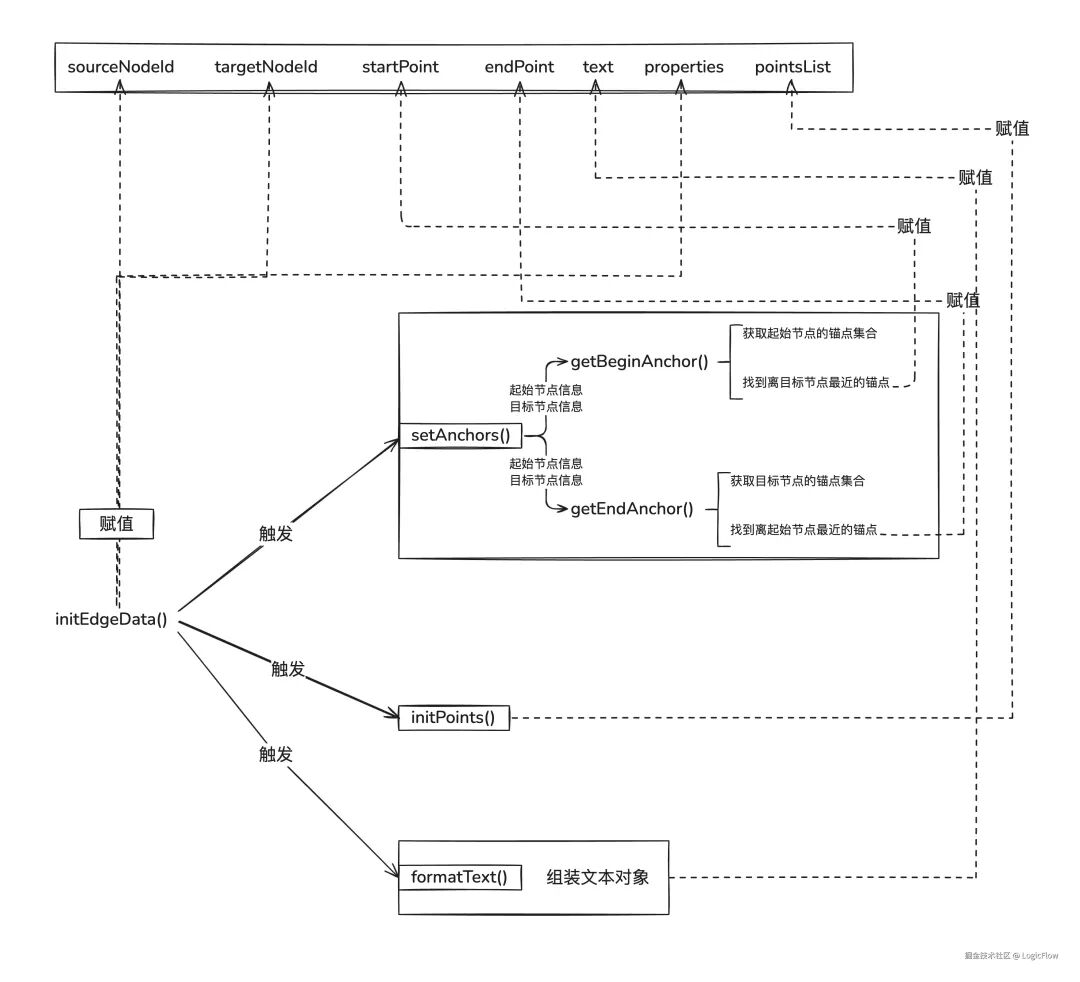

边实例化时,数据层Model类内部会先调用initeEdgeData方法,将无需处理的属性直接存储下来,设置为监听属性然后触发setAnchors、initPoints和formatText方法,生成边起终点、路径和文本信息存储并监听。


视图层渲染时,Model中存储的数据会以外部参数的形式传给组件,由不同渲染方法消费。每个渲染方法都是从Model存储的核心数据中获取图形信息、从样式方法中获取图形渲染样式,组装到svg图形上。最终由render函数将不同模块方法返回的内容呈现出来。


内置衍生边

LogicFlow内部基于基础边衍生提供三种边:直线边、折线边和曲线边。

直线边

在基础边的之上做简单的定制:

  1. 支持样式快速设置
  2. 限制文本位置在线段中间
  3. 使用svg的line元素实现线条的绘制

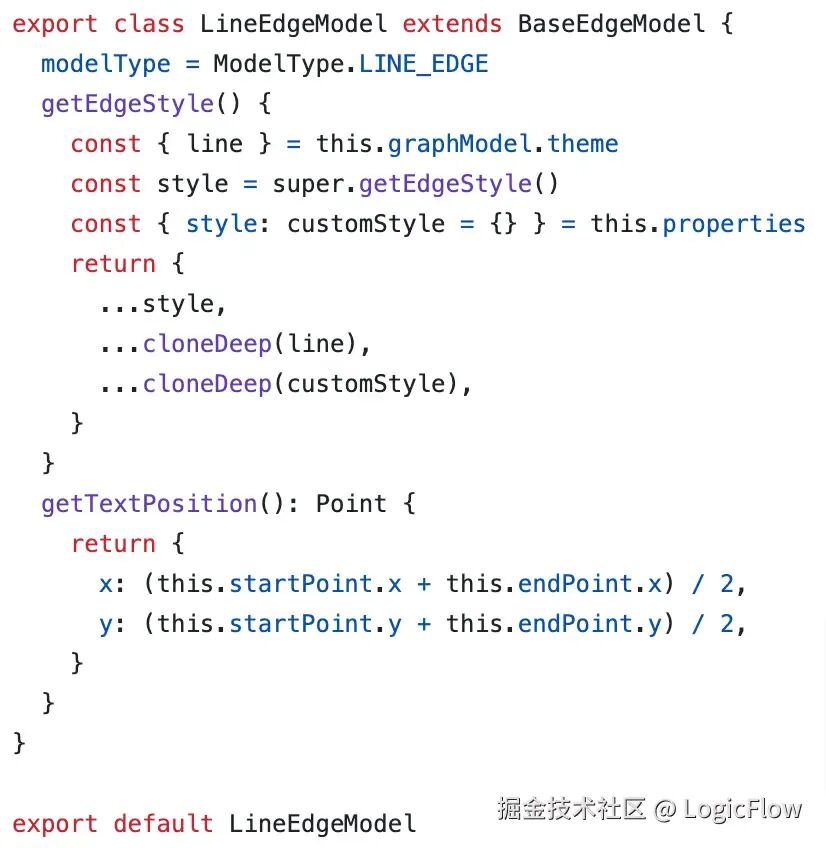

ViewModel

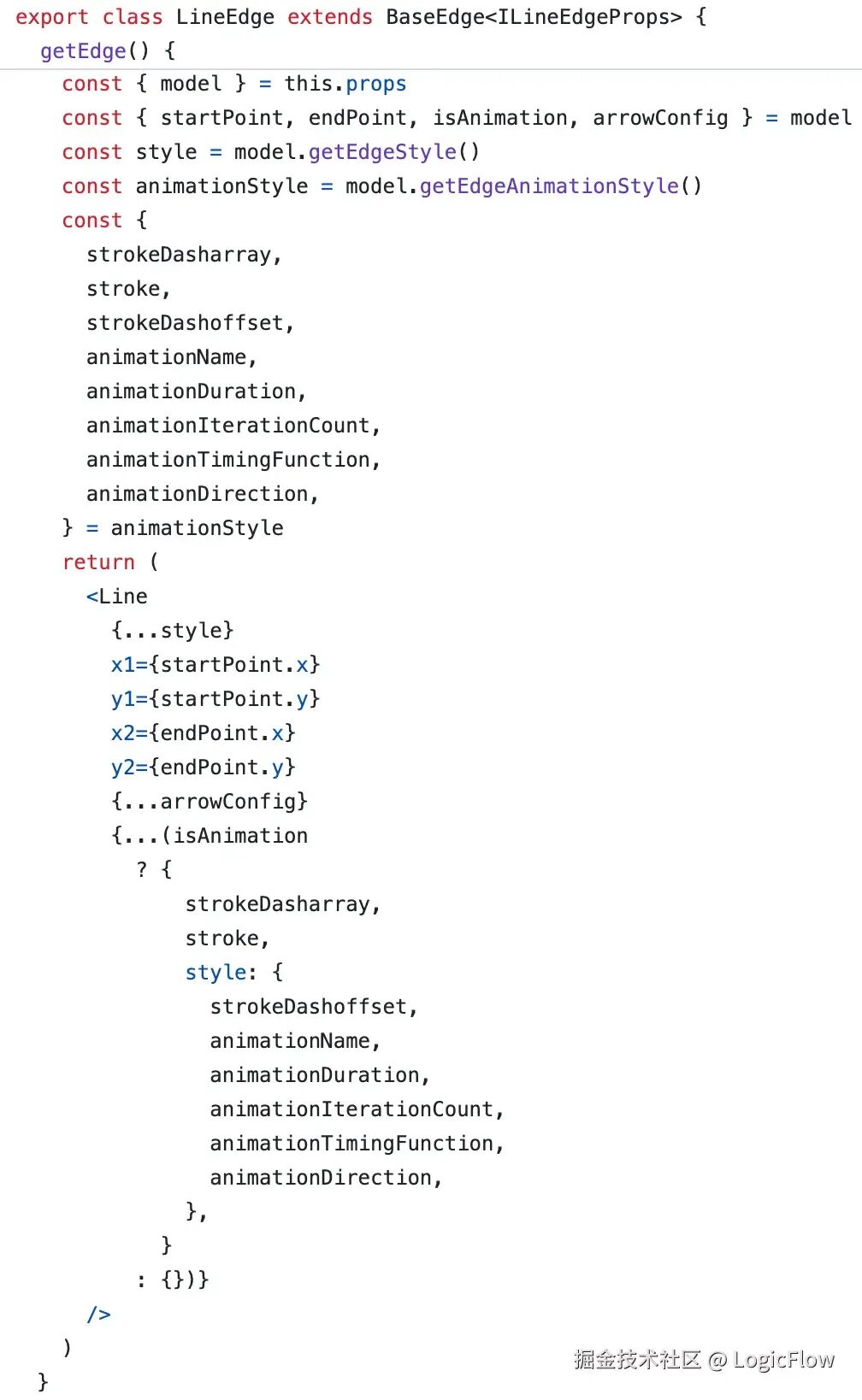

直线边数据层和视图层源码逻辑

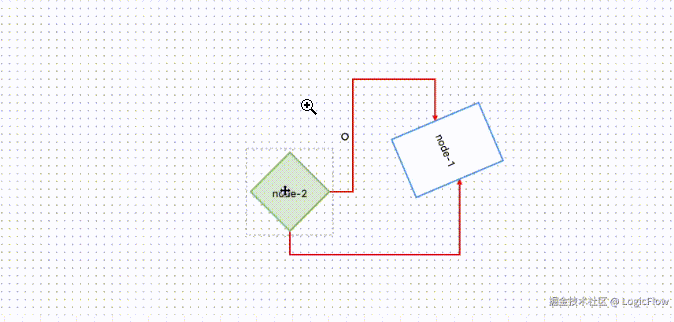

折线边

折线边在Model类的实现上针对边路径计算做了比较多的处理,会根据两个节点的位置、重叠情况,使用 A*查找 结合 曼哈顿距离 计算路径,实时自动生成pointsList数据。在View类中则重写了getEdge方法,使用svg polyline元素渲染路径。

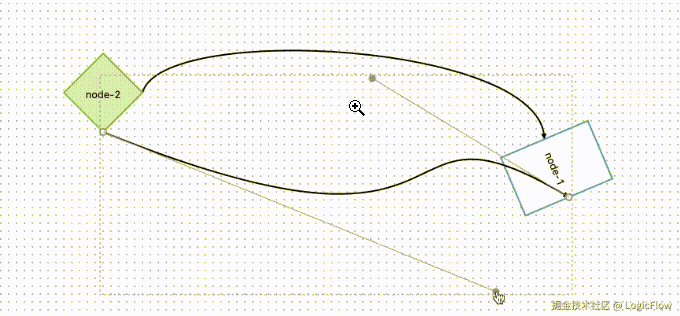

曲线边

曲线边和折线边类似,Model类针对边路径计算做了较多处理,不一样的是,为了调整曲线边的弧度,曲线边额外还提供了两个调整点,边路径也是根据边起终点和两个调整点的位置和距离计算得出,View类里使用svg的path元素渲染路径。



一起实现一条自定义动画边

自定义边的实现思路和内置边的实现类似:继承基础边 → 重写Model类/View类的方法 → 按需增加自定义方法 → 命名并导出成模块

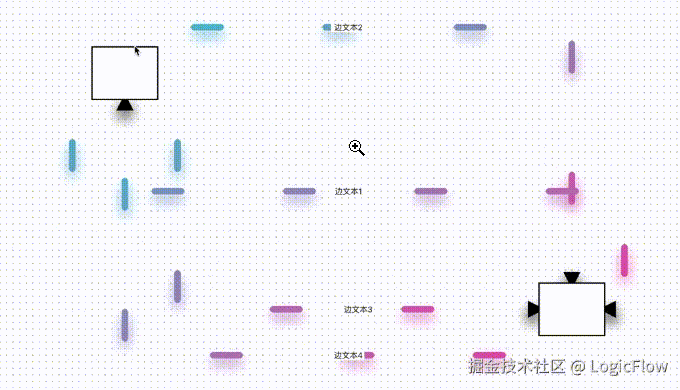

今天就带大家一起实现一条复杂动画边,话不多说,先看效果:



要实现这样效果的边,我们核心只需要做一件事:重新定义边的渲染内容。

在实际写代码时,主要需要继承视图类,重写getEdge方法。

实现基础边

那我们先声明自定义边,并向getEdge方法中增加逻辑,让它返回基础的折线边。

为了方便预览效果,我们在画布上增加节点和边数据。

自定义边实现
import { h, PolylineEdge, PolylineEdgeModel } from '@logicflow/core'
class CustomAnimateEdge extends PolylineEdge { // 重写 getEdge 方法,定义边的渲染 getEdge() { const { model } = this.props const { points, arrowConfig } = model const style = model.getEdgeStyle() return h('g', {}, [ h('polyline', { points, ...style, ...arrowConfig, fill: 'none', strokeLinecap: 'round', }), ]) }}
class CustomAnimateEdgeModel extends PolylineEdgeModel {}
export default { type: 'customAnimatePolyline', model: CustomAnimateEdgeModel, view: CustomAnimateEdge,}
定义画布渲染内容
lf.render({  nodes: [    {      id: '1',      type: 'rect',      x: 150,      y: 320,      properties: {},    },    {      id: '2',      type: 'rect',      x: 630,      y: 320,      properties: {},    },  ],  edges: [    {      id: '1-2-1',      type: 'customPolyline',      sourceNodeId: '1',      targetNodeId: '2',      startPoint: { x: 200, y: 320 },      endPoint: { x: 580, y: 320 },      properties: {        textPosition: 'center',        style: {          strokeWidth: 10,        },      },      text: { x: 390, y: 320, value: '边文本3' },      pointsList: [        { x: 200, y: 320 },        { x: 580, y: 320 },      ],    },    {      id: '1-2-2',      type: 'customPolyline',      sourceNodeId: '1',      targetNodeId: '2',      startPoint: { x: 150, y: 280 },      endPoint: { x: 630, y: 280 },      properties: {        textPosition: 'center',        style: {          strokeWidth: 10,        },      },      text: { x: 390, y: 197, value: '边文本2' },      pointsList: [        { x: 150, y: 280 },        { x: 150, y: 197 },        { x: 630, y: 197 },        { x: 630, y: 280 },      ],    },    {      id: '1-2-3',      type: 'customPolyline',      sourceNodeId: '2',      targetNodeId: '1',      startPoint: { x: 630, y: 360 },      endPoint: { x: 150, y: 360 },      properties: {        textPosition: 'center',        style: {          strokeWidth: 10,        },      },      text: { x: 390, y: 458, value: '边文本4' },      pointsList: [        { x: 630, y: 360 },        { x: 630, y: 458 },        { x: 150, y: 458 },        { x: 150, y: 360 },      ],    },    {      id: '1-2-4',      type: 'customPolyline',      sourceNodeId: '1',      targetNodeId: '2',      startPoint: { x: 100, y: 320 },      endPoint: { x: 680, y: 320 },      properties: {        textPosition: 'center',        style: {          strokeWidth: 10,        },      },      text: { x: 390, y: 114, value: '边文本1' },      pointsList: [        { x: 100, y: 320 },        { x: 70, y: 320 },        { x: 70, y: 114 },        { x: 760, y: 114 },        { x: 760, y: 320 },        { x: 680, y: 320 },      ],    },  ],})

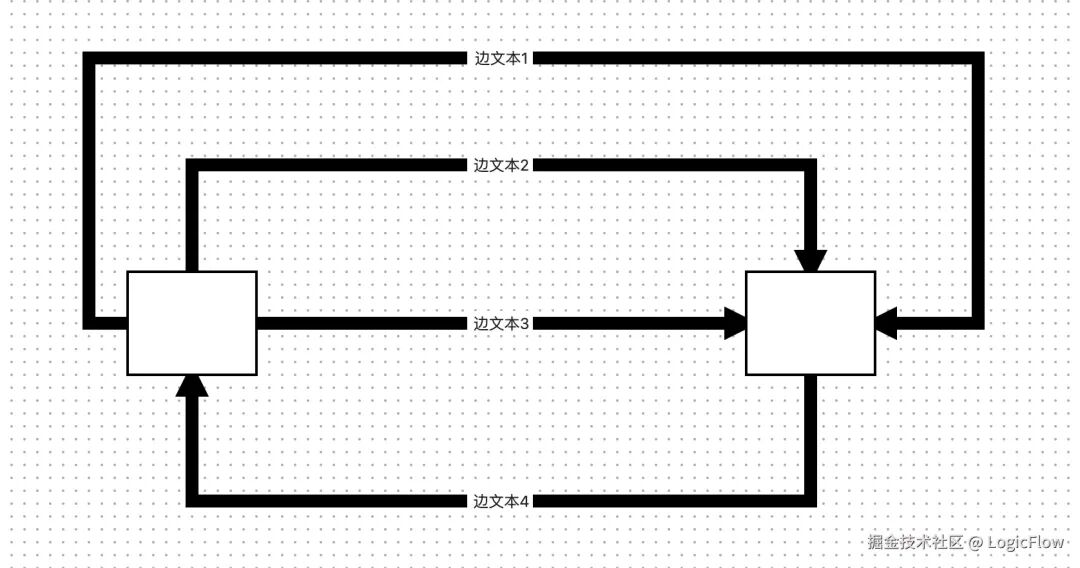

然后我们就能获得一个这样内容的画布:

添加动画

LogicFlow提供的边动画能力其实是svg 属性和css属性的集合,目前主要支持了下述这些属性。

type EdgeAnimation = {    stroke?: Color; // 边颜色, 本质是svg stroke属性    strokeDasharray?: string; // 虚线长度与间隔设置, 本质是svg strokeDasharray属性    strokeDashoffset?: NumberOrPercent; // 虚线偏移量, 本质是svg strokeDashoffset属性    animationName?: string; // 动画名称,能力等同于css animation-name    animationDuration?: `${number}s` | `${number}ms`; // 动画周期时间,能力等同于css animation-duration    animationIterationCount?: 'infinite' | number; // 动画播放次数,能力等同于css animation-iteration-count    animationTimingFunction?: string; // 动画在周期内的执行方式,能力等同于css animation-timing-function    animationDirection?: string; // 动画播放顺序,能力等同于css animation-direction};

接下来我们就使用这些属性实现虚线滚动效果。

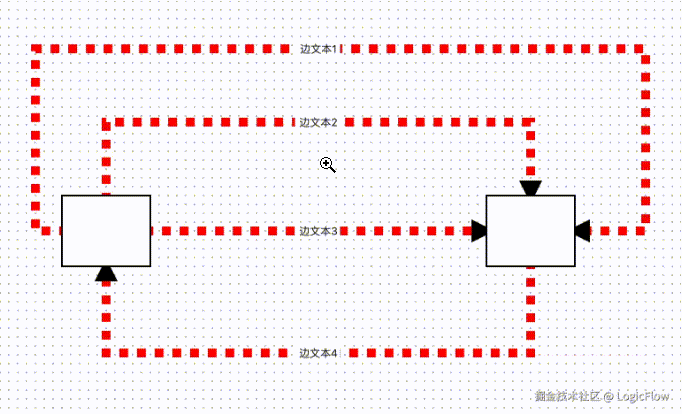

边的动画样式是取的 model.getEdgeAnimationStyle() 方法的返回值,在内部这个方法是取全局主题的edgeAnimation属性的值作为返回的,默认情况下默认的动画是这样的效果:



开发者可以通过修改全局样式来设置边动画样式;但如果是只是指定类型边需要设置动画部分,则需要重写getEdgeAnimationStyle方法做自定义,就像下面这样:

class ConveyorBeltEdgeModel extends PolylineEdgeModel {  // 自定义动画  getEdgeAnimationStyle() {    const style = super.getEdgeAnimationStyle()    style.strokeDasharray = '40 160' // 虚线长度和间隔    style.animationDuration = '10s' // 动画时长    style.stroke = 'rgb(130, 179, 102)' // 边颜色    return style  }}

然后在getEdge方法中加上各个动画属性

// 改写getEdge方法内容const animationStyle = model.getEdgeAnimationStyle()const {  stroke,  strokeDasharray,  strokeDashoffset,  animationName,  animationDuration,  animationIterationCount,  animationTimingFunction,  animationDirection,} = animationStyle
return h('g', {}, [ h('polyline', { // ... strokeDasharray, stroke, style: { strokeDashoffset: strokeDashoffset, animationName, animationDuration, animationIterationCount, animationTimingFunction, animationDirection, }, }),])

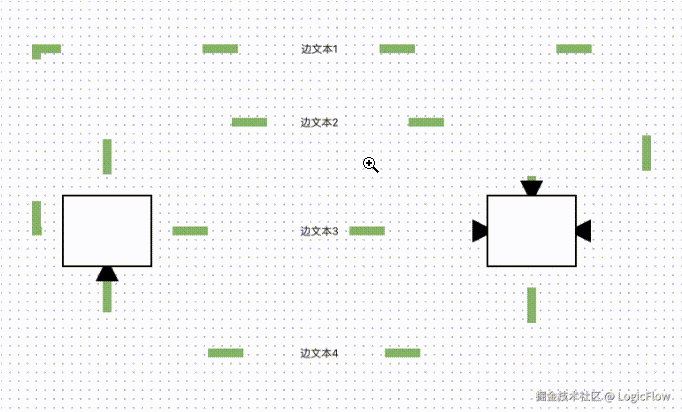

我们就得到了定制样式的动画边:



添加渐变颜色和阴影

最后来增加样式效果,我们需要给这些边增加渐变颜色和阴影。SVG提供了元素linearGradient定义线性渐变,我们只需要在getEdge返回的内容里增加linearGradient元素,就能实现边颜色线性变化的效果。实现阴影则是使用了SVG的滤镜能力实现。

// 继续改写getEdge方法内容return h('g', {}, [  h('linearGradient', { // svg 线性渐变元素    id: 'linearGradient-1',    x1: '0%',    y1: '0%',    x2: '100%',    y2: '100%',    spreadMethod: 'repeat',  }, [    h('stop', { // 坡度1,0%颜色为#36bbce      offset: '0%',      stopColor: '#36bbce'    }),    h('stop', { // 坡度2,100%颜色为#e6399b      offset: '100%',      stopColor: '#e6399b'    })  ]),  h('defs', {}, [    h('filter', { // 定义滤镜      id: 'filter-1',      x: '-0.2',      y: '-0.2',      width: '200%',      height: '200%',    }, [      h('feOffset', { // 定义输入图像和偏移量        result: 'offOut',        in: 'SourceGraphic',        dx: 0,        dy: 10,      }),      h('feGaussianBlur', { // 设置高斯模糊        result: 'blurOut',        in: 'offOut',        stdDeviation: 10,      }),      h('feBlend', { // 设置图像和阴影的混合模式        mode: 'normal',        in: 'SourceGraphic',        in2: 'blurOut',      }),    ]),  ]),  h('polyline', {    points,    ...style,    ...arrowConfig,    strokeDasharray,    stroke: 'url(#linearGradient-1)', // 边颜色指向渐变元素    filter: 'url(#filter-1)', // 滤镜指向前面定义的滤镜内容    fill: 'none',    strokeLinecap: 'round',    style: {      strokeDashoffset: strokeDashoffset,      animationName,      animationDuration,      animationIterationCount,      animationTimingFunction,      animationDirection,    },  }),])

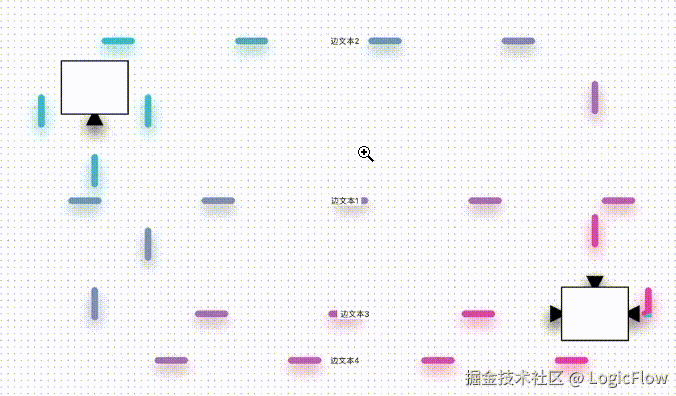

就得到了我们的自定义动画边



结尾

在流程图中,边不仅仅是节点之间的连接,更是传递信息、表达逻辑关系的重要工具。通过 LogicFlow,开发者可以轻松地创建和自定义边,以满足不同的业务场景需求。从基础的直线边到复杂的曲线边,甚至动画边,LogicFlow 都为开发者提供了高度的灵活性和定制能力。

希望能通过这篇文章抛砖引玉,帮助你了解在 LogicFlow 中创建和定制边的核心技巧,打造出符合你业务需求的流程图效果。

如果这篇文章对你有帮助,请为我们的项目点上star,非常感谢ღ( ´・ᴗ・` )

项目传送门:https://github.com/didi/LogicFlow
