Linux 进程间共享内存通信方案 v2：基于 Futex 锁的实现
原
GrissomFI约 21 分钟
GrissomFI约 21 分钟原文：https://github.com/ForceInjection/linux-from-beginner-to-master/blob/main/process/shared_mem_demo/futex.md

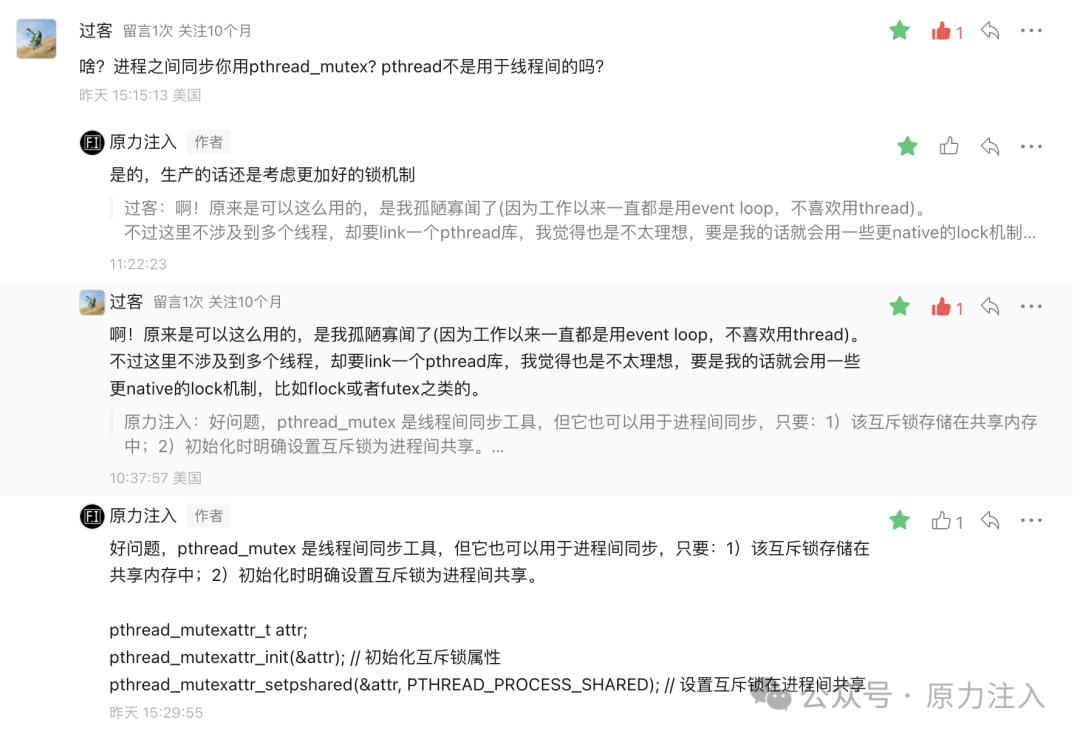

有读者反映：啥？进程之间同步你用pthread_mutex? pthread不是用于线程间的吗？
Linux 进程间共享内存通信方案（代码版）一文顺手用了 pthread_mutex，那本文就用 futex 来实现一下锁功能。
Futex（Fast Userspace Mutex）是 Linux 系统中实现高效同步机制的核心技术，其设计目标是通过用户态与内核态协同工作来最小化系统调用开销。
详细参考：
相关代码
common_v2.h
#include<stdio.h>
#include<stdlib.h>
#include<unistd.h>
#include<fcntl.h>
#include<sys/mman.h>
#include<sys/stat.h>
#include<semaphore.h>
#include<linux/futex.h>
#include<sys/syscall.h>
#include<sys/time.h>
#include<time.h>
#include<string.h>
#include<stdatomic.h>
#define SHM_NAME "/demo_shm"// 共享内存名称
#define SEM_AVAIL "/sem_avail"// 可用信号量名称
#define SEM_DONE "/sem_done"// 完成信号量名称
#define INIT_SIZE 4096 // 共享内存初始大小
// 共享内存头结构体
structshm_header {
int lock; // futex锁变量
size_t capacity; // 共享内存容量
size_t data_size; // 数据大小
volatileint ready_flag; // 数据就绪标志
char data[]; // 数据存储区域
};
// futex系统调用帮助函数
static inline int futex(int *uaddr, int futex_op, int val,
conststruct timespec *timeout,
int *uaddr2, int val3) {
return syscall(SYS_futex, uaddr, futex_op, val, timeout, uaddr2, val3);
}process_a_v2.c
#include"common_v2.h"
int main() {
// 创建共享内存对象，O_CREAT表示创建，O_RDWR表示读写权限
int shm_fd = shm_open(SHM_NAME, O_CREAT | O_RDWR, 0666);
if (shm_fd == -1) {
perror("shm_open failed"); // 创建共享内存失败
exit(EXIT_FAILURE);
}
// 设置共享内存大小为初始大小
if (ftruncate(shm_fd, INIT_SIZE) == -1) {
perror("ftruncate failed"); // 设置大小失败
exit(EXIT_FAILURE);
}
// 将共享内存映射到当前进程的地址空间
structshm_header *header = mmap(NULL, INIT_SIZE,
PROT_READ | PROT_WRITE,
MAP_SHARED, shm_fd, 0);
if (header == MAP_FAILED) {
perror("mmap failed"); // 内存映射失败
exit(EXIT_FAILURE);
}
// 初始化futex锁，初始值为0
atomic_store((_Atomicint *)&header->lock, 0);
// 示例数据
constchar *messages[] = {"Hello", "World", "Dynamic", "Memory"};
// 创建信号量
sem_unlink(SEM_AVAIL); // 删除已存在的信号量（如果有的话）
sem_unlink(SEM_DONE);
sem_t *sem_avail = sem_open(SEM_AVAIL, O_CREAT | O_EXCL, 0666, 0);
if (sem_avail == SEM_FAILED) {
perror("sem_open failed for SEM_AVAIL"); // 创建信号量失败
exit(EXIT_FAILURE);
}
sem_t *sem_done = sem_open(SEM_DONE, O_CREAT | O_EXCL, 0666, 0);
if (sem_done == SEM_FAILED) {
perror("sem_open failed for SEM_DONE"); // 创建信号量失败
exit(EXIT_FAILURE);
}
// 循环发送数据
for (int i = 0; i < 4; i++) {
size_t data_len = strlen(messages[i]) + 1; // 数据长度（包括\0）
// 获取futex锁
while (atomic_exchange((_Atomicint *)&header->lock, 1)) {
futex((int *)&header->lock, FUTEX_WAIT_PRIVATE, 1, NULL, NULL, 0);
}
// 检查共享内存大小是否足够，不足则扩展
if (data_len > (header->capacity - sizeof(struct shm_header))) {
size_t new_cap = header->capacity * 2;
while (new_cap < (sizeof(struct shm_header) + data_len)) {
new_cap *= 2;
}
munmap(header, header->capacity); // 解除当前映射
if (ftruncate(shm_fd, new_cap) == -1) {
perror("ftruncate failed during resizing"); // 扩展大小失败
exit(EXIT_FAILURE);
}
header = mmap(NULL, new_cap,
PROT_READ | PROT_WRITE,
MAP_SHARED, shm_fd, 0);
if (header == MAP_FAILED) {
perror("mmap failed after resizing"); // 重新映射失败
exit(EXIT_FAILURE);
}
header->capacity = new_cap; // 更新容量
}
// 写入数据
memcpy(header->data, messages[i], data_len); // 将消息复制到共享内存
header->data_size = data_len; // 设置数据大小
header->ready_flag = 1; // 设置数据就绪标志
// 释放锁
atomic_store((_Atomicint *)&header->lock, 0);
futex((int *)&header->lock, FUTEX_WAKE_PRIVATE, 1, NULL, NULL, 0);
printf("[A] Sent: %s\n", messages[i]); // 输出已发送数据
// 通知进程B有数据可读取
sem_post(sem_avail);
// 等待进程B确认数据已被处理
sem_wait(sem_done);
}
// 清理资源
munmap(header, header->capacity);
close(shm_fd);
sem_close(sem_avail);
sem_close(sem_done);
sem_unlink(SEM_AVAIL);
sem_unlink(SEM_DONE);
return0;
}process_b_v2.c
#include"common_v2.h"
intmain() {
// 打开共享内存对象，以只读写模式
int shm_fd = shm_open(SHM_NAME, O_RDWR, 0666);
if (shm_fd == -1) {
perror("shm_open failed"); // 打开共享内存失败
exit(EXIT_FAILURE);
}
// 获取共享内存的元数据（如大小等）
structstatshm_stat;
if (fstat(shm_fd, &shm_stat) == -1) {
perror("fstat failed"); // 获取元数据失败
exit(EXIT_FAILURE);
}
// 将共享内存映射到当前进程的地址空间
structshm_header *header = mmap(NULL, shm_stat.st_size,
PROT_READ | PROT_WRITE,
MAP_SHARED, shm_fd, 0);
if (header == MAP_FAILED) {
perror("mmap failed"); // 内存映射失败
exit(EXIT_FAILURE);
}
// 打开由进程A创建的信号量，用于同步操作
sem_t *sem_avail = sem_open(SEM_AVAIL, 0);
if (sem_avail == SEM_FAILED) {
perror("sem_open failed for SEM_AVAIL"); // 打开信号量失败
exit(EXIT_FAILURE);
}
sem_t *sem_done = sem_open(SEM_DONE, 0);
if (sem_done == SEM_FAILED) {
perror("sem_open failed for SEM_DONE"); // 打开信号量失败
exit(EXIT_FAILURE);
}
// 循环接收数据
for (int i = 0; i < 4; i++) {
// 等待信号量，表示进程A有数据可读取
sem_wait(sem_avail);
// 使用futex实现互斥锁，确保线程安全
while (atomic_exchange((_Atomicint *)&header->lock, 1)) {
// 如果锁被占用，等待futex信号
futex((int *)&header->lock, FUTEX_WAIT_PRIVATE, 1, NULL, NULL, 0);
}
// 检查共享内存大小是否变化
if (fstat(shm_fd, &shm_stat) == -1) {
perror("fstat failed"); // 获取元数据失败
exit(EXIT_FAILURE);
}
// 如果共享内存增长，重新映射
if (shm_stat.st_size > header->capacity) {
munmap(header, header->capacity); // 解除当前映射
header = mmap(NULL, shm_stat.st_size,
PROT_READ | PROT_WRITE,
MAP_SHARED, shm_fd, 0);
if (header == MAP_FAILED) {
perror("mmap failed after resizing"); // 重新映射失败
exit(EXIT_FAILURE);
}
}
// 读取数据
if (header->ready_flag) {
char buf[256]; // 临时缓冲区
memcpy(buf, header->data, header->data_size); // 复制数据
header->ready_flag = 0; // 重置标志
printf("[B] Received: %s\n", buf); // 输出数据
}
// 释放锁并唤醒等待线程
atomic_store((_Atomicint *)&header->lock, 0);
futex((int *)&header->lock, FUTEX_WAKE_PRIVATE, 1, NULL, NULL, 0);
// 通知进程A数据已被处理
sem_post(sem_done);
}
// 清理资源
munmap(header, shm_stat.st_size);
close(shm_fd);
sem_close(sem_avail);
sem_close(sem_done);
return0;
}编译及运行
GCC
gcc -o process_a_v2 process_a_v2.c -pthread
gcc -o process_b_v2 process_b_v2.c -pthread-pthread 参数在 GCC 编译时用于启用 POSIX 线程支持，主要原因如下：
• 线程库链接： -pthread参数告诉编译器和链接器需要使用POSIX线程库（libpthread）。这个库提供了线程相关的函数和数据结构，如pthread_*，sem_*等。• 头文件包含：使用 -pthread参数后，编译器会自动包含额外的头文件，这些头文件定义了与线程相关的API，如<pthread.h>。• 链接器选项： -pthread参数会自动将pthread库链接到目标程序中，确保代码中使用的线程相关函数（如pthread_create、sem_init）能找到对应的实现。• 线程安全：这个参数还会启用编译器对线程安全的优化，确保在多线程环境下代码的正确性。
例如，在代码中使用了 pthread 或者 sem 相关的 API 时（我们使用了 sem），必须使用 -pthread 参数，否则会报未定义符号的错误。
执行
注意：执行有先后顺序
terminal #1:
./process_a_v2
[A] Sent: Hello
[A] Sent: World
[A] Sent: Dynamic
[A] Sent: Memorytermianl #2:
./process_b_v2
[B] Received: Hello
[B] Received: World
[B] Received: Dynamic
[B] Received: Memory追踪执行过程（strace ./process_a_v2）
strace ./process_a_v2
execve("./process_a_v2", ["./process_a_v2"], 0x7ffd9f428350 /* 25 vars */) = 0
brk(NULL) = 0x5f96e83ea000
arch_prctl(0x3001 /* ARCH_??? */, 0x7fff03f73db0) = -1 EINVAL (Invalid argument)
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7dc18b223000
access("/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=49907, ...}, AT_EMPTY_PATH) = 0
mmap(NULL, 49907, PROT_READ, MAP_PRIVATE, 3, 0) = 0x7dc18b216000
close(3) = 0
openat(AT_FDCWD, "/lib/x86_64-linux-gnu/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\3\0\0\0\0\0\0\0\0\3\0>\0\1\0\0\0P\237\2\0\0\0\0\0"..., 832) = 832
pread64(3, "\6\0\0\0\4\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0"..., 784, 64) = 784
pread64(3, "\4\0\0\0 \0\0\0\5\0\0\0GNU\0\2\0\0\300\4\0\0\0\3\0\0\0\0\0\0\0"..., 48, 848) = 48
pread64(3, "\4\0\0\0\24\0\0\0\3\0\0\0GNU\0\315A\vq\17\17\tLh2\355\331Y1\0m"..., 68, 896) = 68
newfstatat(3, "", {st_mode=S_IFREG|0755, st_size=2220400, ...}, AT_EMPTY_PATH) = 0
pread64(3, "\6\0\0\0\4\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0"..., 784, 64) = 784
mmap(NULL, 2264656, PROT_READ, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7dc18ae00000
mprotect(0x7dc18ae28000, 2023424, PROT_NONE) = 0
mmap(0x7dc18ae28000, 1658880, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x28000) = 0x7dc18ae28000
mmap(0x7dc18afbd000, 360448, PROT_READ, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x1bd000) = 0x7dc18afbd000
mmap(0x7dc18b016000, 24576, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x215000) = 0x7dc18b016000
mmap(0x7dc18b01c000, 52816, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_ANONYMOUS, -1, 0) = 0x7dc18b01c000
close(3) = 0
mmap(NULL, 12288, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7dc18b213000
arch_prctl(ARCH_SET_FS, 0x7dc18b213740) = 0
set_tid_address(0x7dc18b213a10) = 72191
set_robust_list(0x7dc18b213a20, 24) = 0
rseq(0x7dc18b2140e0, 0x20, 0, 0x53053053) = 0
mprotect(0x7dc18b016000, 16384, PROT_READ) = 0
mprotect(0x5f96e739b000, 4096, PROT_READ) = 0
mprotect(0x7dc18b25d000, 8192, PROT_READ) = 0
prlimit64(0, RLIMIT_STACK, NULL, {rlim_cur=8192*1024, rlim_max=RLIM64_INFINITY}) = 0
munmap(0x7dc18b216000, 49907) = 0
openat(AT_FDCWD, "/dev/shm/demo_shm", O_RDWR|O_CREAT|O_NOFOLLOW|O_CLOEXEC, 0666) = 3
ftruncate(3, 4096) = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x7dc18b25c000
unlink("/dev/shm/sem.sem_avail") = -1 ENOENT (No such file or directory)
unlink("/dev/shm/sem.sem_done") = -1 ENOENT (No such file or directory)
getrandom("\x4b\xc1\x49\x29\x0d\x56\x88\x4b", 8, GRND_NONBLOCK) = 8
newfstatat(AT_FDCWD, "/dev/shm/sem.p8PWrE", 0x7fff03f73a80, AT_SYMLINK_NOFOLLOW) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/dev/shm/sem.p8PWrE", O_RDWR|O_CREAT|O_EXCL, 0666) = 4
write(4, "\0\0\0\0\0\0\0\0\200\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0", 32) = 32
mmap(NULL, 32, PROT_READ|PROT_WRITE, MAP_SHARED, 4, 0) = 0x7dc18b222000
link("/dev/shm/sem.p8PWrE", "/dev/shm/sem.sem_avail") = 0
newfstatat(4, "", {st_mode=S_IFREG|0644, st_size=32, ...}, AT_EMPTY_PATH) = 0
getrandom("\x3a\x6e\xbf\x75\xe4\x3b\x8b\x0b", 8, GRND_NONBLOCK) = 8
brk(NULL) = 0x5f96e83ea000
brk(0x5f96e840b000) = 0x5f96e840b000
unlink("/dev/shm/sem.p8PWrE") = 0
close(4) = 0
getrandom("\xaa\x37\x39\x49\xa1\x3d\xa6\xf7", 8, GRND_NONBLOCK) = 8
getrandom("\x4a\x90\x58\xc3\x3d\xf1\xb9\x19", 8, GRND_NONBLOCK) = 8
newfstatat(AT_FDCWD, "/dev/shm/sem.60EknS", 0x7fff03f73a80, AT_SYMLINK_NOFOLLOW) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/dev/shm/sem.60EknS", O_RDWR|O_CREAT|O_EXCL, 0666) = 4
write(4, "\0\0\0\0\0\0\0\0\200\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0", 32) = 32
mmap(NULL, 32, PROT_READ|PROT_WRITE, MAP_SHARED, 4, 0) = 0x7dc18b221000
link("/dev/shm/sem.60EknS", "/dev/shm/sem.sem_done") = 0
newfstatat(4, "", {st_mode=S_IFREG|0644, st_size=32, ...}, AT_EMPTY_PATH) = 0
unlink("/dev/shm/sem.60EknS") = 0
close(4) = 0
futex(0x7dc18b25c000, FUTEX_WAKE_PRIVATE, 1) = 0
newfstatat(1, "", {st_mode=S_IFCHR|0600, st_rdev=makedev(0x88, 0x1), ...}, AT_EMPTY_PATH) = 0
write(1, "[A] Sent: Hello\n", 16[A] Sent: Hello
) = 16
futex(0x7dc18b221000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
futex(0x7dc18b25c000, FUTEX_WAKE_PRIVATE, 1) = 0
write(1, "[A] Sent: World\n", 16[A] Sent: World
) = 16
futex(0x7dc18b222000, FUTEX_WAKE, 1) = 1
futex(0x7dc18b221000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
futex(0x7dc18b25c000, FUTEX_WAKE_PRIVATE, 1) = 0
write(1, "[A] Sent: Dynamic\n", 18[A] Sent: Dynamic
) = 18
futex(0x7dc18b222000, FUTEX_WAKE, 1) = 1
futex(0x7dc18b221000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
futex(0x7dc18b25c000, FUTEX_WAKE_PRIVATE, 1) = 0
write(1, "[A] Sent: Memory\n", 17[A] Sent: Memory
) = 17
futex(0x7dc18b222000, FUTEX_WAKE, 1) = 1
futex(0x7dc18b221000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
munmap(0x7dc18b25c000, 0) = -1 EINVAL (Invalid argument)
close(3) = 0
munmap(0x7dc18b222000, 32) = 0
munmap(0x7dc18b221000, 32) = 0
unlink("/dev/shm/sem.sem_avail") = 0
unlink("/dev/shm/sem.sem_done") = 0
exit_group(0) = ?
+++ exited with 0 +++关键调用说明：
1. 进程启动和初始化
execve("./process_a_v2", ["./process_a_v2"], 0x7ffd9f428350 /* 25 vars */) = 0• 解析：进程 A通过execve系统调用启动;• 关键点： execve是进程执行的起点，加载程序process_a_v2并开始运行。
2. 内存分配
brk(NULL) = 0x5f96e83ea000
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7dc18b223000• 解析： • brk(NULL)获取当前进程的内存数据段末尾地址。• mmap分配了 8KB 的匿名内存（MAP_PRIVATE|MAP_ANONYMOUS），用于存储动态库加载信息或其他数据。
3. 动态链接器加载
access("/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
mmap(NULL, 49907, PROT_READ, MAP_PRIVATE, 3, 0) = 0x7dc18b216000• 解析： • 检查 /etc/ld.so.preload是否存在（不存在）。• 打开 /etc/ld.so.cache并映射到内存，用于加速动态链接。
4. 加载 libc.so.6
openat(AT_FDCWD, "/lib/x86_64-linux-gnu/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
mmap(NULL, 2264656, PROT_READ, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7dc18ae00000• 解析： • 打开 libc.so.6并映射到内存，这是 C 标准库，提供了memcpy、printf等函数。
5. 创建共享内存
openat(AT_FDCWD, "/dev/shm/demo_shm", O_RDWR|O_CREAT|O_NOFOLLOW|O_CLOEXEC, 0666) = 3
ftruncate(3, 4096) = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x7dc18b25c000• 解析： • 进程 A创建并打开共享内存对象/dev/shm/demo_shm。• 使用 ftruncate设置共享内存的大小为 4096 字节。• 使用 mmap将共享内存映射到进程地址空间，地址为0x7dc18b25c000。
6. 初始化信号量
unlink("/dev/shm/sem.sem_avail") = -1 ENOENT (No such file or directory)
unlink("/dev/shm/sem.sem_done") = -1 ENOENT (No such file or directory)
getrandom("\x4b\xc1\x49\x29\x0d\x56\x88\x4b", 8, GRND_NONBLOCK) = 8• 解析： • 使用 unlink尝试删除已存在的信号量（如果存在）。• 使用 getrandom获取随机种子，用于信号量的初始化。
7. 发送数据
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x7dc18b25c000
memcpy(header->data, messages[i], data_len);
write(1, "[A] Sent: Hello\n", 16[A] Sent: Hello
) = 16
sem_post(sem_avail) // 映射到底层的 futex 调用
futex(0x7dc18b222000, FUTEX_WAKE, 1) = 1• 解析： • mmap将共享内存映射到地址0x7dc18b25c000。• 进程 A将数据（如"Hello"）写入共享内存的data区域。• 使用 sem_post通知进程B数据已准备好（通过信号量SEM_AVAIL）。
8. 等待同步
futex(0x7dc18b221000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0• 解析： • 进程A 调用 futex进入等待状态，等待进程B处理完数据并通过信号量SEM_DONE通知。
9. 清理资源
munmap(0x7dc18b25c000, 0) = -1 EINVAL (Invalid argument)
close(3) = 0
munmap(0x7dc18b222000, 32) = 0
munmap(0x7dc18b221000, 32) = 0
unlink("/dev/shm/sem.sem_avail") = 0
unlink("/dev/shm/sem.sem_done") = 0• 解析： • 使用 munmap解除共享内存映射。• 使用 close关闭共享内存文件描述符。• 使用 unlink删除信号量。
strace ./process_b_v2
execve("./process_b_v2", ["./process_b_v2"], 0x7ffd4aa58ad0 /* 25 vars */) = 0
brk(NULL) = 0x62cd5db4f000
arch_prctl(0x3001 /* ARCH_??? */, 0x7ffc609554d0) = -1 EINVAL (Invalid argument)
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x725786dd4000
access("/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=49907, ...}, AT_EMPTY_PATH) = 0
mmap(NULL, 49907, PROT_READ, MAP_PRIVATE, 3, 0) = 0x725786dc7000
close(3) = 0
openat(AT_FDCWD, "/lib/x86_64-linux-gnu/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\3\0\0\0\0\0\0\0\0\3\0>\0\1\0\0\0P\237\2\0\0\0\0\0"..., 832) = 832
pread64(3, "\6\0\0\0\4\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0"..., 784, 64) = 784
pread64(3, "\4\0\0\0 \0\0\0\5\0\0\0GNU\0\2\0\0\300\4\0\0\0\3\0\0\0\0\0\0\0"..., 48, 848) = 48
pread64(3, "\4\0\0\0\24\0\0\0\3\0\0\0GNU\0\315A\vq\17\17\tLh2\355\331Y1\0m"..., 68, 896) = 68
newfstatat(3, "", {st_mode=S_IFREG|0755, st_size=2220400, ...}, AT_EMPTY_PATH) = 0
pread64(3, "\6\0\0\0\4\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0@\0\0\0\0\0\0\0"..., 784, 64) = 784
mmap(NULL, 2264656, PROT_READ, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x725786a00000
mprotect(0x725786a28000, 2023424, PROT_NONE) = 0
mmap(0x725786a28000, 1658880, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x28000) = 0x725786a28000
mmap(0x725786bbd000, 360448, PROT_READ, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x1bd000) = 0x725786bbd000
mmap(0x725786c16000, 24576, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x215000) = 0x725786c16000
mmap(0x725786c1c000, 52816, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_ANONYMOUS, -1, 0) = 0x725786c1c000
close(3) = 0
mmap(NULL, 12288, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x725786dc4000
arch_prctl(ARCH_SET_FS, 0x725786dc4740) = 0
set_tid_address(0x725786dc4a10) = 72195
set_robust_list(0x725786dc4a20, 24) = 0
rseq(0x725786dc50e0, 0x20, 0, 0x53053053) = 0
mprotect(0x725786c16000, 16384, PROT_READ) = 0
mprotect(0x62cd5c162000, 4096, PROT_READ) = 0
mprotect(0x725786e0e000, 8192, PROT_READ) = 0
prlimit64(0, RLIMIT_STACK, NULL, {rlim_cur=8192*1024, rlim_max=RLIM64_INFINITY}) = 0
munmap(0x725786dc7000, 49907) = 0
openat(AT_FDCWD, "/dev/shm/demo_shm", O_RDWR|O_NOFOLLOW|O_CLOEXEC) = 3
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786e0d000
openat(AT_FDCWD, "/dev/shm/sem.sem_avail", O_RDWR|O_NOFOLLOW) = 4
newfstatat(4, "", {st_mode=S_IFREG|0644, st_size=32, ...}, AT_EMPTY_PATH) = 0
getrandom("\xac\x23\xd4\xb7\xd4\x12\xcf\x42", 8, GRND_NONBLOCK) = 8
brk(NULL) = 0x62cd5db4f000
brk(0x62cd5db70000) = 0x62cd5db70000
mmap(NULL, 32, PROT_READ|PROT_WRITE, MAP_SHARED, 4, 0) = 0x725786dd3000
close(4) = 0
openat(AT_FDCWD, "/dev/shm/sem.sem_done", O_RDWR|O_NOFOLLOW) = 4
newfstatat(4, "", {st_mode=S_IFREG|0644, st_size=32, ...}, AT_EMPTY_PATH) = 0
mmap(NULL, 32, PROT_READ|PROT_WRITE, MAP_SHARED, 4, 0) = 0x725786dd2000
close(4) = 0
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
munmap(0x725786e0d000, 0) = -1 EINVAL (Invalid argument)
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786dd1000
newfstatat(1, "", {st_mode=S_IFCHR|0600, st_rdev=makedev(0x88, 0), ...}, AT_EMPTY_PATH) = 0
write(1, "[B] Received: Hello\n", 20[B] Received: Hello
) = 20
futex(0x725786dd1000, FUTEX_WAKE_PRIVATE, 1) = 0
futex(0x725786dd2000, FUTEX_WAKE, 1) = 1
futex(0x725786dd3000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
munmap(0x725786dd1000, 0) = -1 EINVAL (Invalid argument)
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786dd0000
write(1, "[B] Received: World\n", 20[B] Received: World
) = 20
futex(0x725786dd0000, FUTEX_WAKE_PRIVATE, 1) = 0
futex(0x725786dd2000, FUTEX_WAKE, 1) = 1
futex(0x725786dd3000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
munmap(0x725786dd0000, 0) = -1 EINVAL (Invalid argument)
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786dcf000
write(1, "[B] Received: Dynamic\n", 22[B] Received: Dynamic
) = 22
futex(0x725786dcf000, FUTEX_WAKE_PRIVATE, 1) = 0
futex(0x725786dd2000, FUTEX_WAKE, 1) = 1
futex(0x725786dd3000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
munmap(0x725786dcf000, 0) = -1 EINVAL (Invalid argument)
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786dce000
write(1, "[B] Received: Memory\n", 21[B] Received: Memory
) = 21
futex(0x725786dce000, FUTEX_WAKE_PRIVATE, 1) = 0
futex(0x725786dd2000, FUTEX_WAKE, 1) = 1
munmap(0x725786dce000, 4096) = 0
close(3) = 0
munmap(0x725786dd3000, 32) = 0
munmap(0x725786dd2000, 32) = 0
exit_group(0) = ?
+++ exited with 0 +++关键调用说明：
1. 进程启动和初始化
execve("./process_b_v2", ["./process_b_v2"], 0x7ffd4aa58ad0/* 25 vars */) = 0• 解析：进程 B通过execve系统调用启动，加载程序process_b_v2并开始运行。• 关键点： execve是进程执行的起点，为后续操作做好准备。
2. 内存分配
brk(NULL) = 0x62cd5db4f000
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x725786dd4000• 解析： • brk(NULL)获取当前进程的内存数据段末尾地址。• mmap分配了 8KB 的匿名内存，用于动态库加载或其他数据存储。
3. 动态链接器加载
access("/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
mmap(NULL, 49907, PROT_READ, MAP_PRIVATE, 3, 0) = 0x725786dc7000• 解析： • 查找 /etc/ld.so.preload文件（不存在）。• 打开 /etc/ld.so.cache并映射到内存，用于加速动态链接。
4. 加载 libc.so.6
openat(AT_FDCWD, "/lib/x86_64-linux-gnu/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
mmap(NULL, 2264656, PROT_READ, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x725786a00000• 解析： • 打开 libc.so.6并映射到内存，C 标准库的函数（如memcpy、printf）依赖于它。
5. 打开共享内存
openat(AT_FDCWD, "/dev/shm/demo_shm", O_RDWR|O_NOFOLLOW|O_CLOEXEC) = 3
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786e0d000• 解析： • 进程 B以读写模式打开共享内存对象/dev/shm/demo_shm。• 使用 mmap将共享内存映射到进程地址空间。
6. 打开信号量
openat(AT_FDCWD, "/dev/shm/sem.sem_avail", O_RDWR|O_NOFOLLOW) = 4
mmap(NULL, 32, PROT_READ|PROT_WRITE, MAP_SHARED, 4, 0) = 0x725786dd3000
close(4) = 0• 解析： • 打开信号量 SEM_AVAIL并映射到内存，用于接收进程A的数据通知。
7. 循环接收数据
futex(0x725786dd3000, FUTEX_WAIT_BITSET|FUTEX_CLOCK_REALTIME, 0, NULL, FUTEX_BITSET_MATCH_ANY) = 0• 解析： • 进程 B调用futex进入等待状态，等待进程A的通知。
newfstatat(3, "", {st_mode=S_IFREG|0644, st_size=4096, ...}, AT_EMPTY_PATH) = 0
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, 3, 0) = 0x725786dd1000• 解析： • 重新映射共享内存，确保数据的可用性。
memcpy(buf, header->data, header->data_size);
write(1, "[B] Received: Hello\n", 20[B] Received: Hello
) = 20• 解析： • 从共享内存中读取数据（如 "Hello"）。• 使用 write打印接收到的数据。
8. 回应进程A
futex(0x725786dd1000, FUTEX_WAKE_PRIVATE, 1) = 0
futex(0x725786dd2000, FUTEX_WAKE, 1) = 1• 解析： • 使用 futex通知进程A数据已处理（通过信号量SEM_DONE）。
9. 清理资源
munmap(0x725786dd1000, 0) = -1 EINVAL (Invalid argument)
close(3) = 0
munmap(0x725786dd3000, 32) = 0
munmap(0x725786dd2000, 32) = 0• 解析： • 使用 munmap解除共享内存和信号量的映射。• 使用 close关闭共享内存文件描述符。
