理解 PD 分离和分布式 KVCache 的几张图

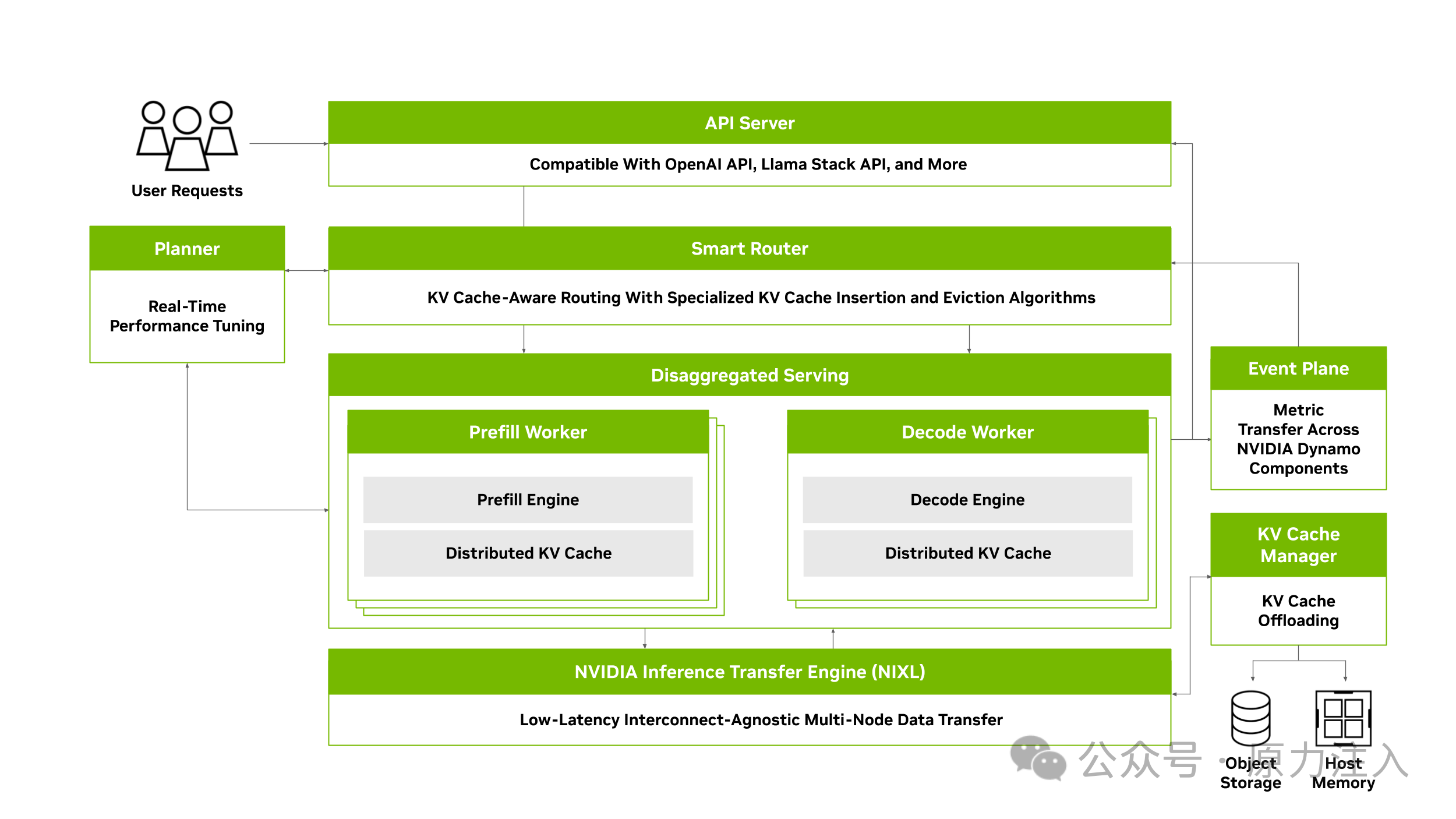

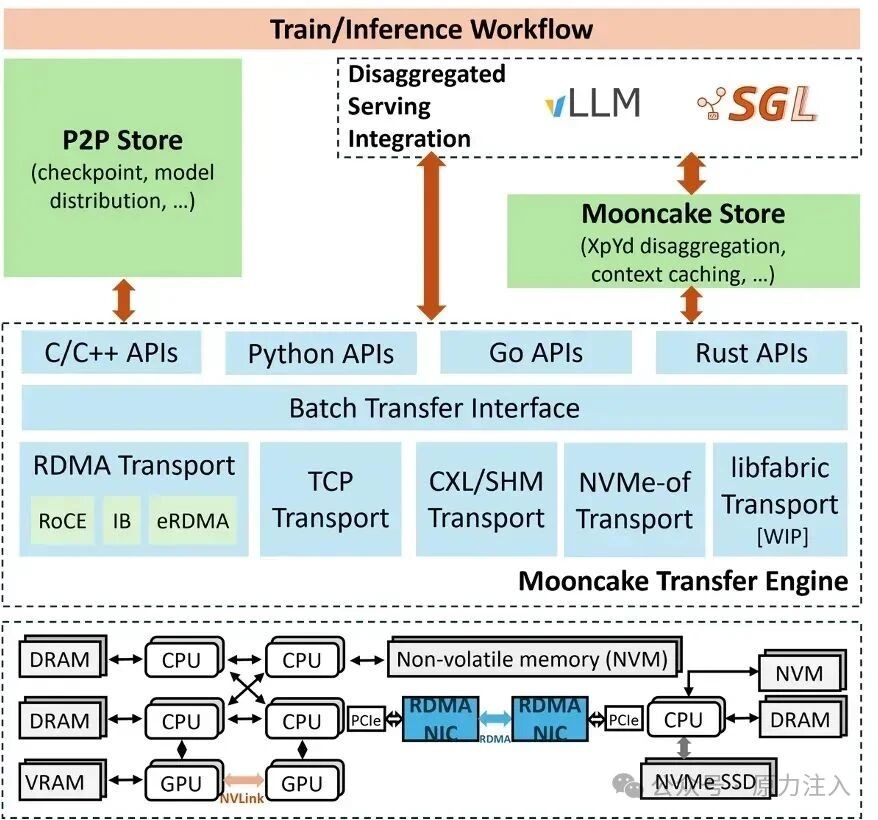

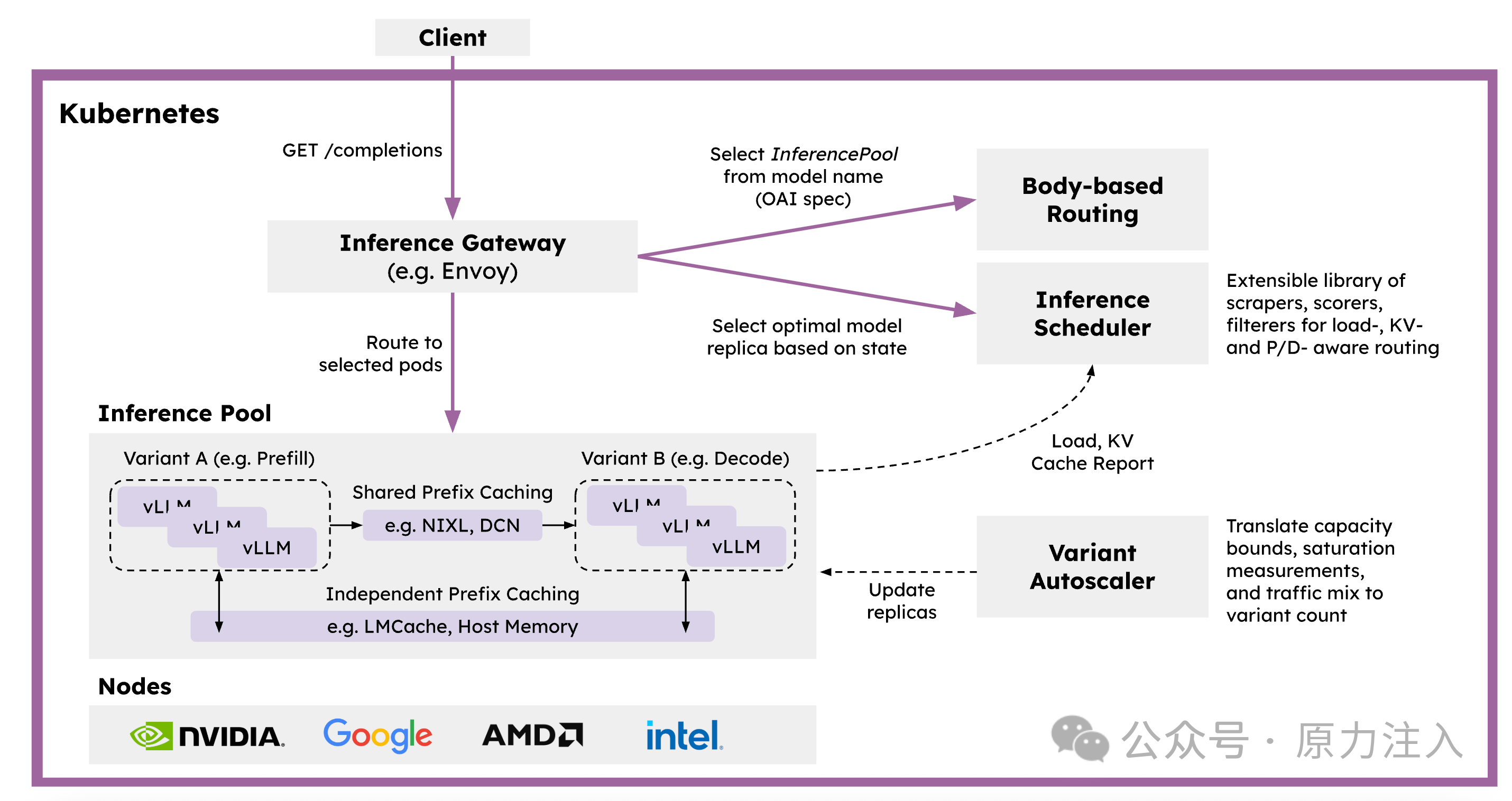

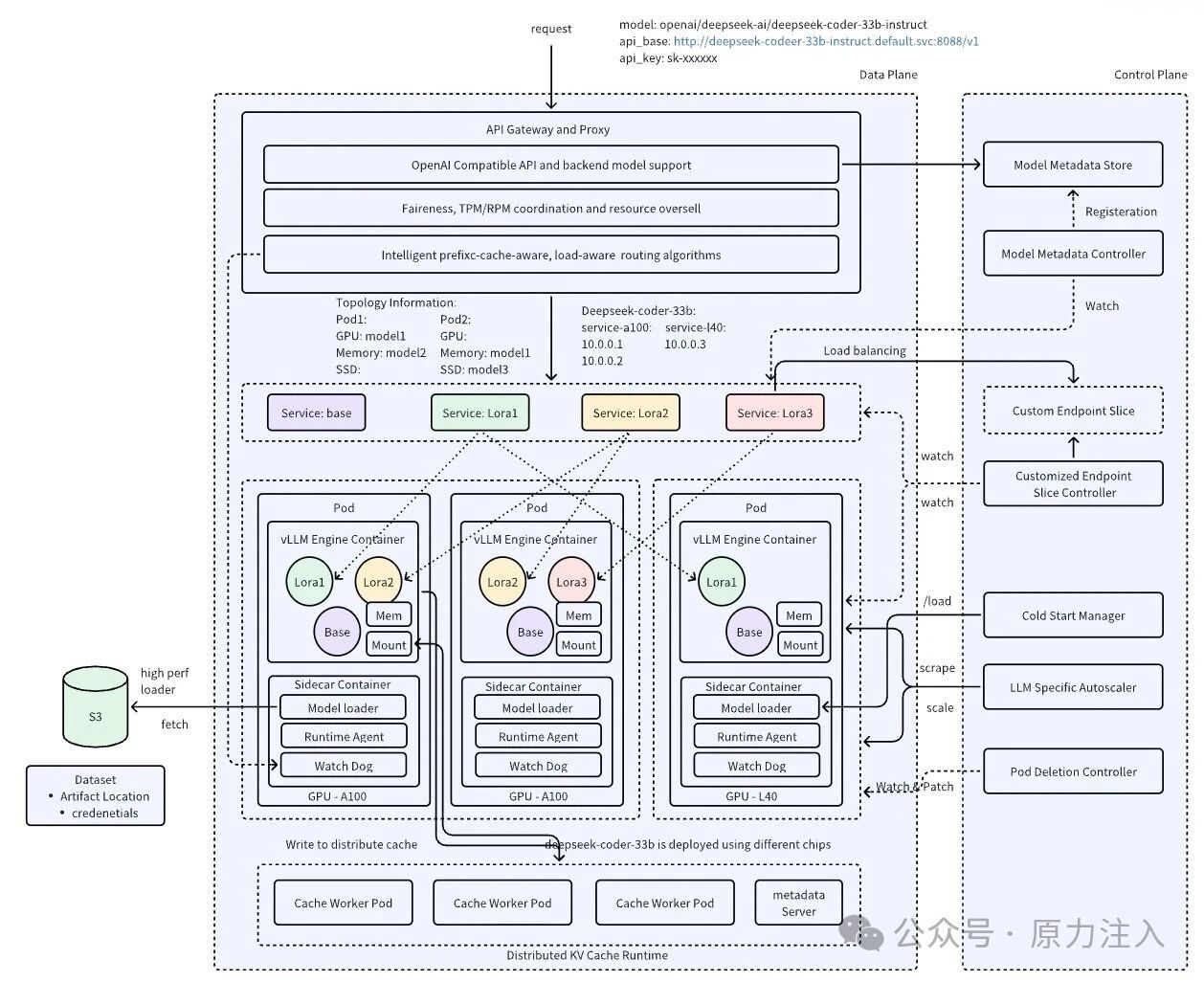

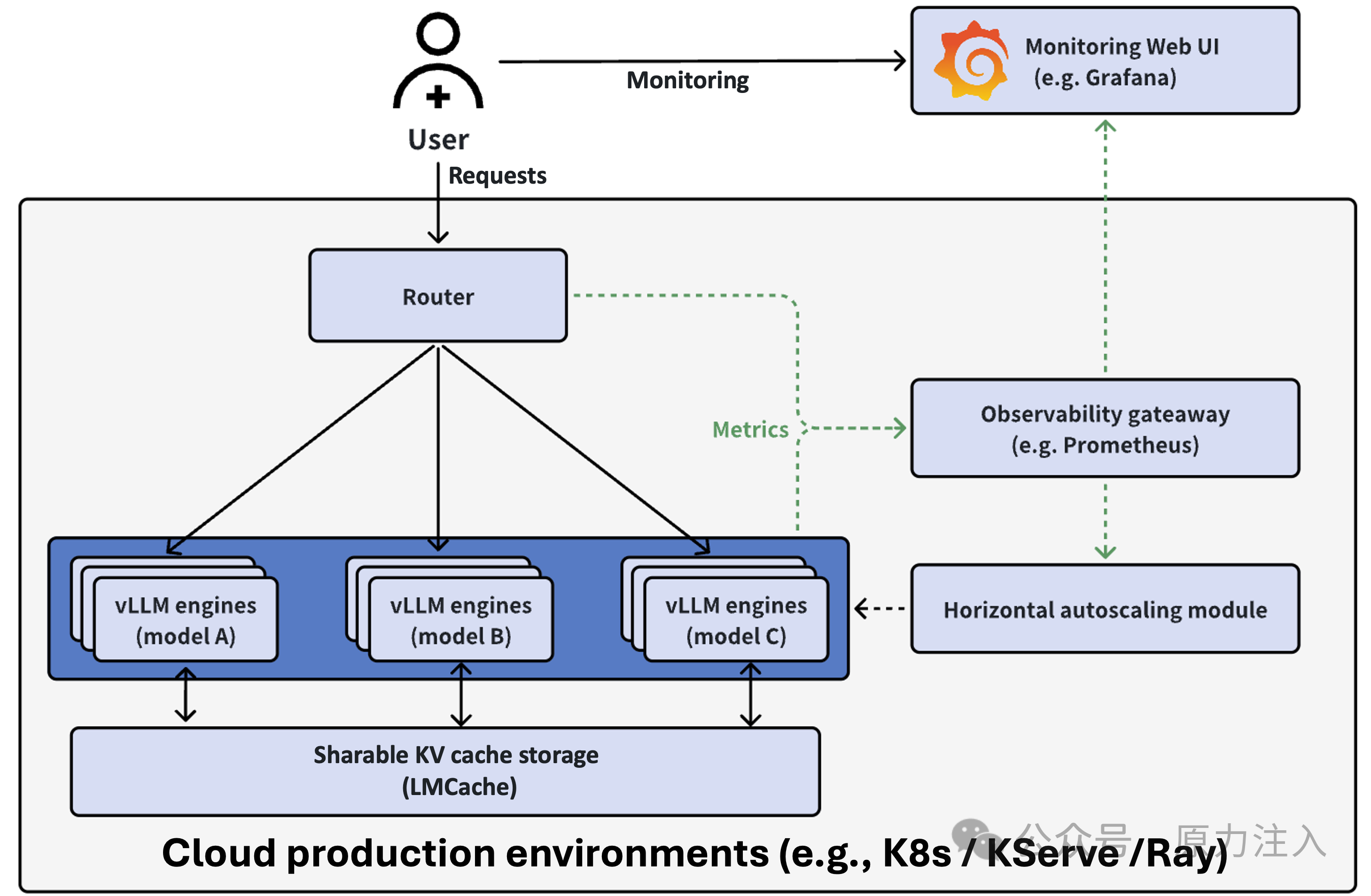

图一：NVIDIA Dynamo, A Low-Latency Distributed Inference Framework for Scaling Reasoning AI Models. 图二：llm-d, a Kubernetes-native high-performance distributed LLM inference framework. 图三：Mooncake is a KVCache-centric disaggregated architecture for LLM serving. The core of Mooncake is the Transfer Engine（核心）, which provides a unified interface for batched data transfer across various storage devices and network links. 图四：vLLM production stack, vLLM’s reference system for K8S-native cluster-wide deployment with community-driven performance optimization. 图五：AIBrix is an open-source initiative designed to provide essential building blocks to construct scalable GenAI inference infrastructure.
