OceanBase 源码学习: 3.3 存储压缩(Compaction)

Pdigoal约 5 分钟

OceanBase 源码学习: 3.3 存储压缩(Compaction)

OceanBase 中的存储压缩(Compaction)是一个关键的后台进程，它通过将多个 SSTable 文件合并为更少、更高效的文件来优化数据存储布局和性能。可阅读LSM-Tree相关论文. 该系统管理各种类型的压缩操作，包括mini, minor, major, medium compactions，每种压缩操作都服务于不同的优化目标。压缩系统负责跨 Tablet 合并操作的调度、执行和监控，同时保持数据一致性和系统性能。

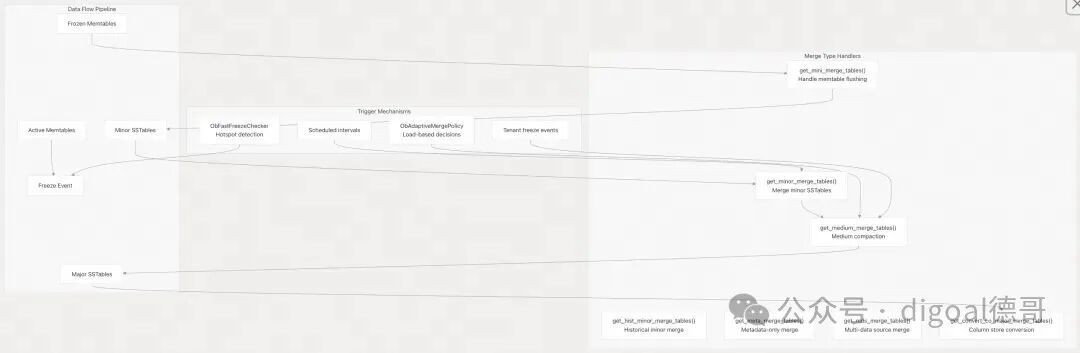

压缩类型和概述

OceanBase 实现了 ObPartitionMergePolicy::get_merge_tables 函数数组中定义的几种类型的 compaction 操作，分别针对不同的存储优化场景：

Merge Type 函数映射

压缩系统使用函数指针数组根据类型选择(调度)合并操作：




源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_partition_merge_policy.cpp#L36-L54
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.h#L146-L297

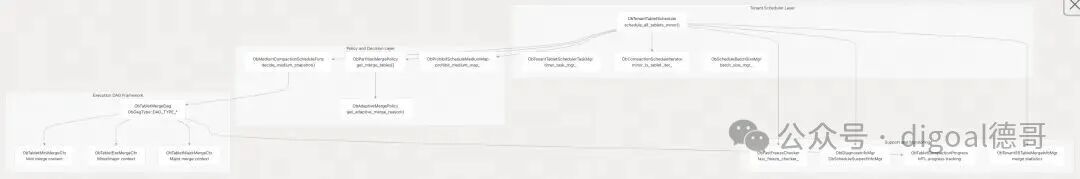

系统架构

压缩系统遵循分层架构，调度、策略决策和执行之间有明确的分离：

核心组件架构




源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.h#L146-L297
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.cpp#L302-L387
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_compaction_diagnose.h#L152-L210

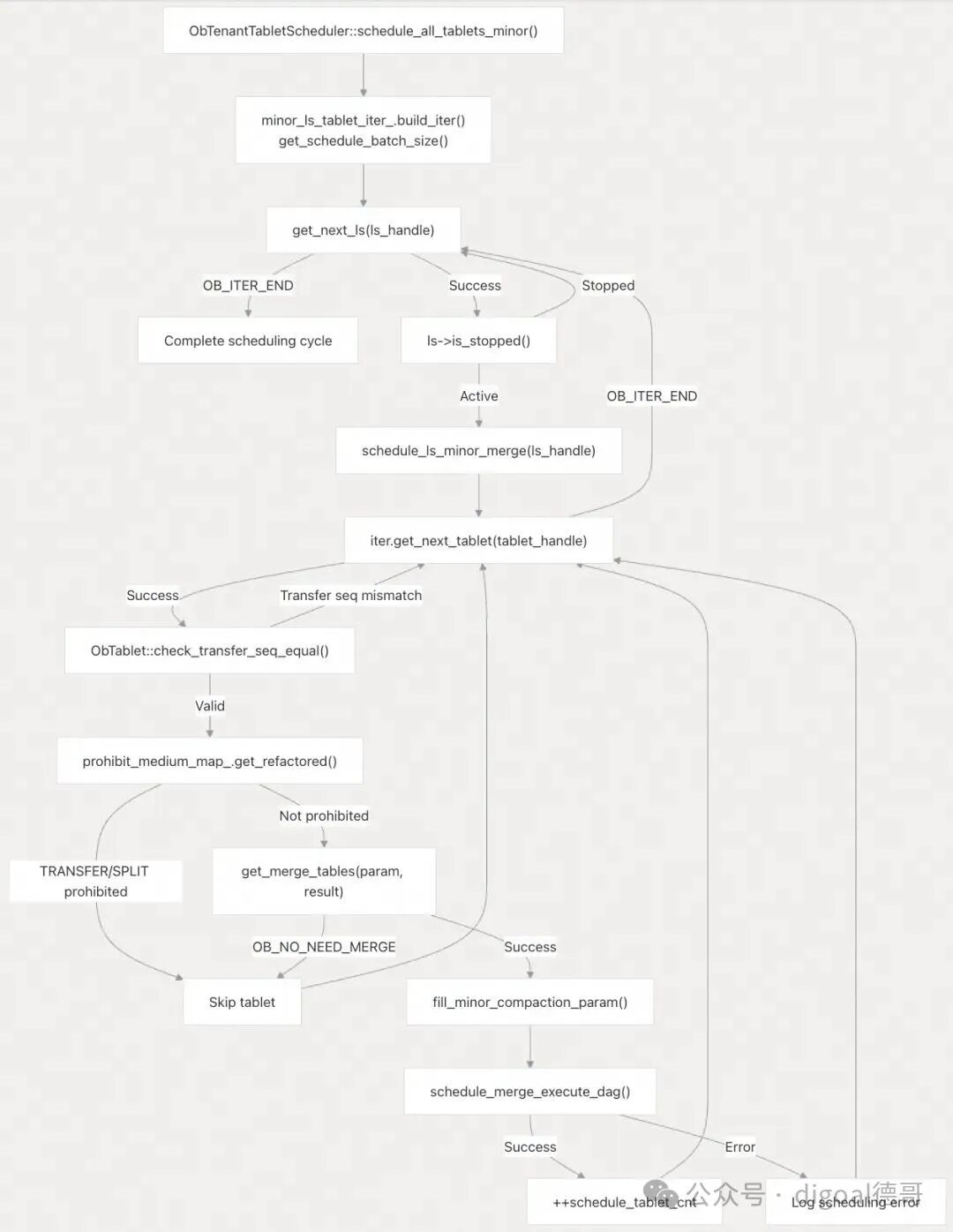

压缩调度流程




源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.cpp#L549-L587
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.cpp#L1128-L1200
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.cpp#L928-L947

关键类及职责

调度组件

类
主要职责
主要方法
ObTenantTabletScheduler
主压缩调度和协调
schedule_all_tablets_minor()
，update_upper_trans_version_and_gc_sstable()，schedule_merge()
ObMediumCompactionScheduleFunc
Medium 压缩调度逻辑
schedule_next_medium_for_leader()
，decide_medium_snapshot()，choose_medium_snapshot()
ObFastFreezeChecker
检测需要快速冷冻的情况
check_need_fast_freeze()
，check_hotspot_need_fast_freeze()
ObProhibitScheduleMediumMap
管理禁止 Medium 压缩的 tablets
add_flag()
，batch_add_flags()，clear_flag()

源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.h#L146-L297
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_medium_compaction_func.h#L34-L127
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.h#L54-L91
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.h#L93-L132

Merge Policy

类
主要职责
主要方法
ObPartitionMergePolicy
确定要合并的表
get_medium_merge_tables()
，get_minor_merge_tables()，get_mini_merge_tables()
ObAdaptiveMergePolicy
自适应压缩策略
get_meta_merge_tables()
，get_adaptive_merge_reason()
ObGetMergeTablesResult
合并表结果
handle_
, version_range_, scn_range_

源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_partition_merge_policy.h#L87-L450
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_partition_merge_policy.cpp#L56-L129

执行框架

类
主要职责
主要方法
ObTabletMergeDag
merge execution DAG 框架
init_by_param()
，fill_dag_key()，create_first_task()
ObBasicTabletMergeCtx
Tablets 合并的基本上下文
prepare_schema()
，create_sstable()，get_merge_tables()
ObTabletMergeCtx
标准 Tablets 合并上下文
prepare_index_tree()
，collect_running_info()，update_tablet()
ObStaticMergeParam
merge 操作的静态参数
cal_minor_merge_param()
，cal_major_merge_param()

源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tablet_merge_task.h#L251-L434
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_basic_tablet_merge_ctx.h#L154-L650
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tablet_merge_ctx.h#L39-L85

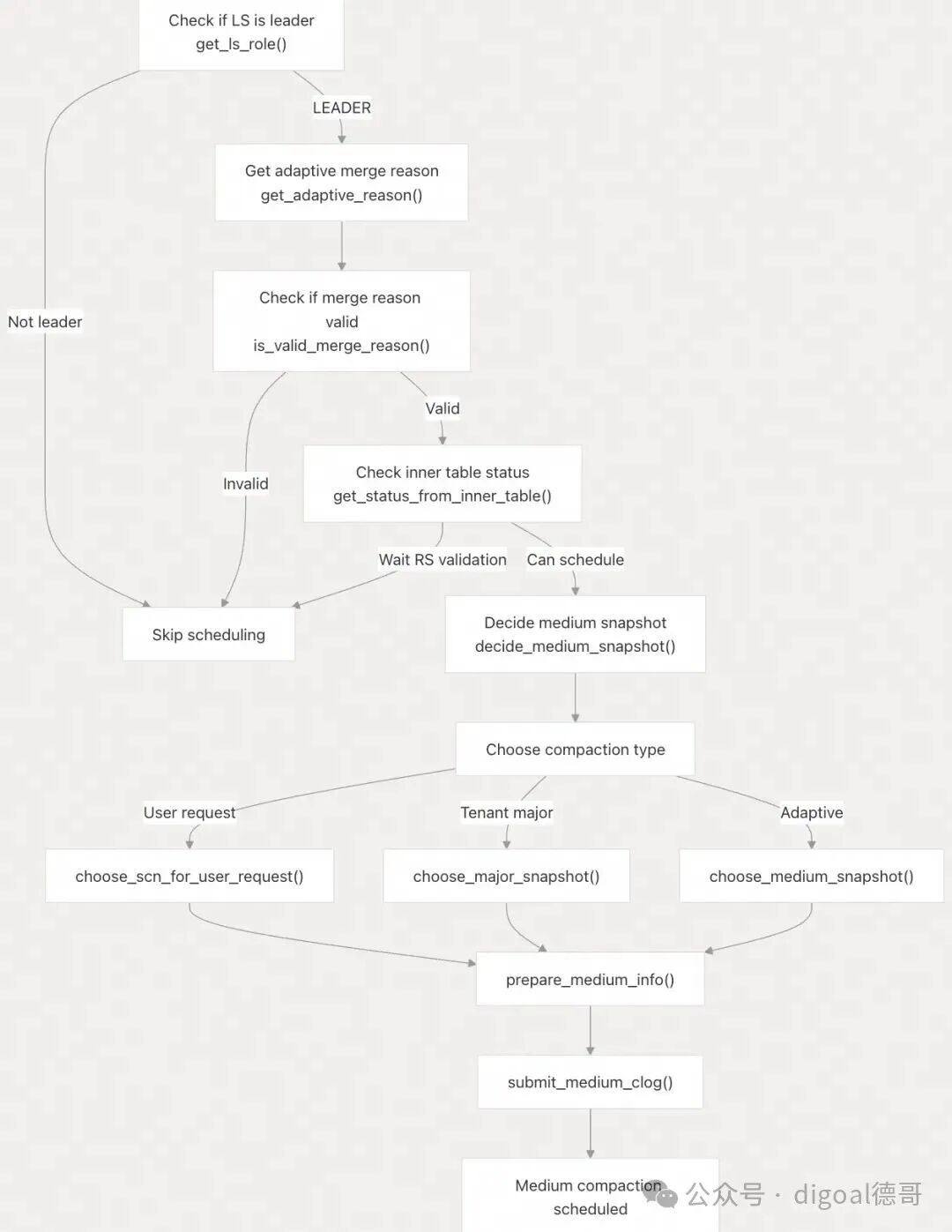

Medium 压缩调度

中度压缩是介于 minor 压缩和 major 压缩之间的关键优化层。其调度过程涉及复杂的决策：




源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_medium_compaction_func.cpp#L288-L422
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_medium_compaction_func.cpp#L577-L691

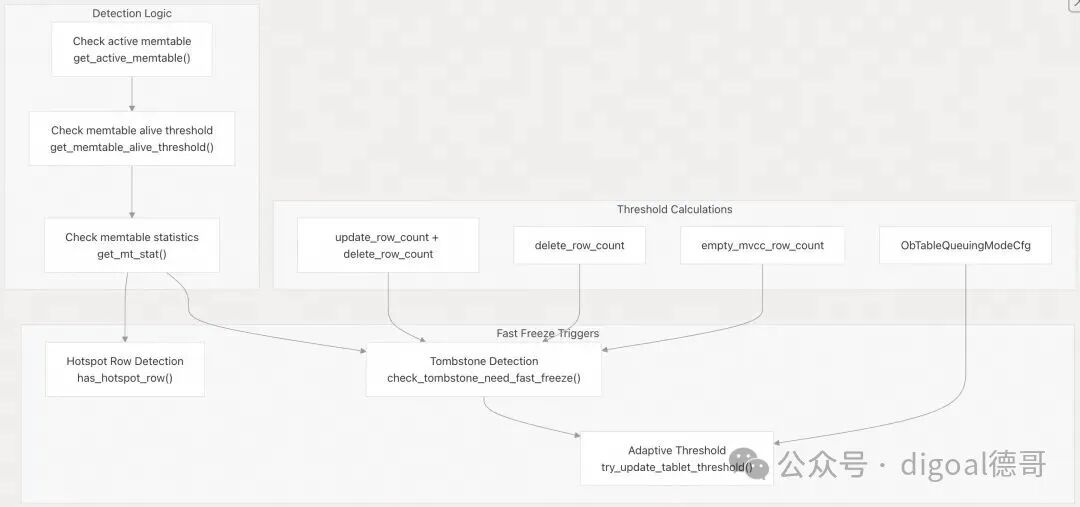

快速冻结(Freeze)检测机制

快速冻结机制检测出需要立即冻结内存表(memtable)以维持系统性能的情况：




源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.cpp#L74-L176
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tenant_tablet_scheduler.cpp#L177-L227

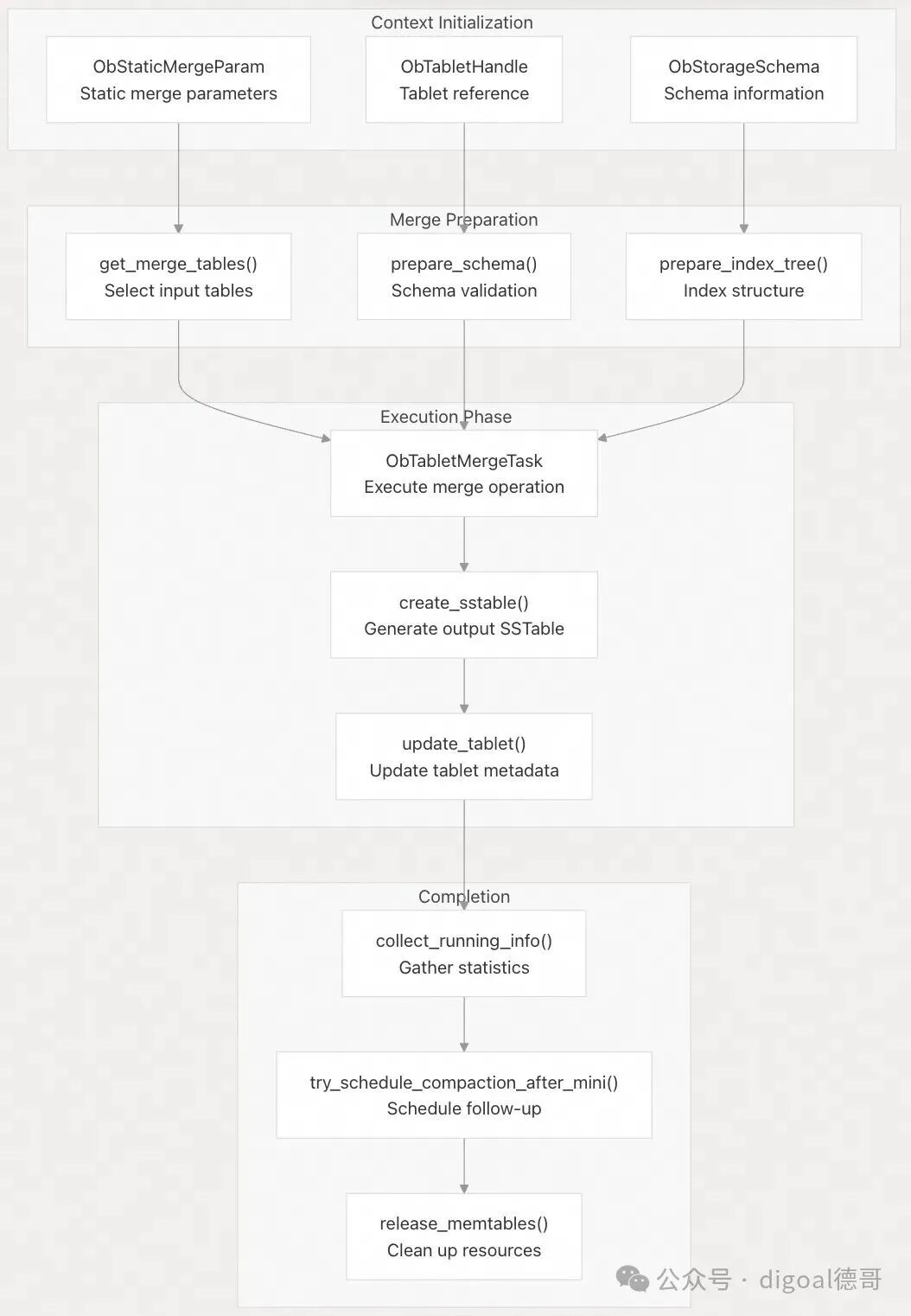

压缩执行上下文

执行上下文管理压缩操作的整个生命周期：




源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_basic_tablet_merge_ctx.cpp#L671-L850
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tablet_merge_ctx.cpp#L117-L193
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_tablet_merge_ctx.cpp#L195-L232

诊断和监测

压缩系统包括全面的监控和诊断功能：

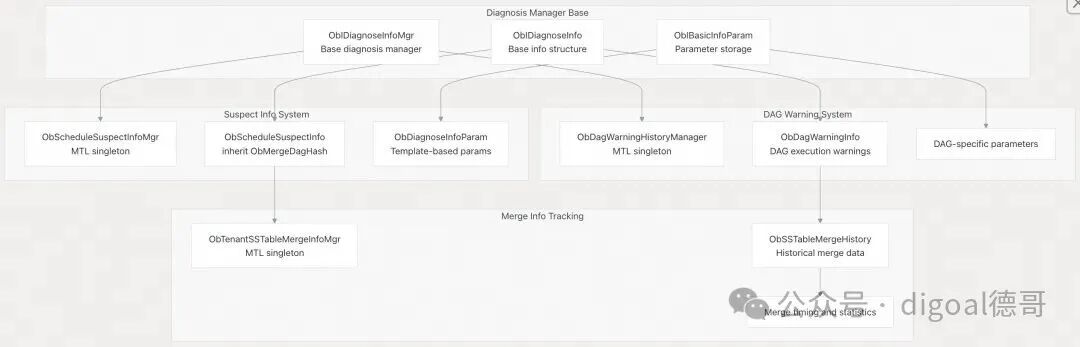

诊断系统架构




诊断组件

组件
目的
主要方法
ObScheduleSuspectInfoMgr
跟踪可疑的调度问题
add_suspect_info()
，set_max()，gc_info()
ObDagWarningHistoryManager
管理 DAG 执行警告
add_dag_warning_info()
，delete_info()
ObTenantSSTableMergeInfoMgr
跟踪 SSTable 合并统计数据
add_sstable_merge_info()
，gc_info()
ObTabletCompactionProgress
监控压缩进度
update_progress_status()
，get_progress_info()

源文件:

  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_compaction_diagnose.cpp#L35-L70
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_compaction_diagnose.h#L152-L260
  • https://github.com/oceanbase/oceanbase/blob/8e2580cf/src/storage/compaction/ob_compaction_diagnose.h#L600-L750

OceanBase 的存储压缩系统提供了一种强大的、多层次的存储优化方法，通过精心调度和执行各种类型的压缩来平衡性能、资源利用率和数据一致性。

更多详细内容请关注我的github: https://github.com/digoal/blog
