简述
《 Zabbix监控Kafka topic积压数据 》一文的目的是通过Zabbix自动发现实现对多个消费者组的Topic及Partition的Lag进行监控。因在实际监控中发现有问题，为给感兴趣的读者不留坑，特通过此文对监控进行优化调整。分区自动发现
经过上线验证，当自动发现配置文件只有一个# 未优化前的计算方式：# 自动发现配置文件vim consumer-groups.conf#按消费者组(Group)|Topic格式，写入自动发现配置文件test-group|test# 执行脚本自动发现指定消费者和topic的分区bash consumer-groups.sh discovery{"data": [{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"0" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"1" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"3" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"2" }]}
test-group|test
是没有问题的，但当我们按需求再接入
test-group|test1
（即test-group消费者组的第二个Topic）时，自动发现的结果如下：
了解Zabbix自动发现格式的同学会发现，每个Topic的Partition会出现# 未优化前的计算方式：vim consumer-groups.conf#按消费者组(Group)|Topic格式，写入自动发现配置文件test-group|testtest-group|test1# 执行脚本自动发现指定消费者和topic的分区bash consumer-groups.sh discovery{"data": [{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"0" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"1" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"3" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"2" }{ "{#GROUP}":"test-group", "{#TOPICP}":"test1", "{#PARTITION}":"0" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test2", "{#PARTITION}":"1" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test3", "{#PARTITION}":"2" }]}
','
，这种格式是不符合规范，这就是导致我们的监控项会出现问题，因此我们需要进一步修改脚本。
经修改后，最终效果应该如下：
# 优化后的计算方式：vim consumer-groups.conf#按消费者组(Group)|Topic格式，写入自动发现配置文件test-group|testtest-group|test1# 执行脚本自动发现指定消费者和topic的分区bash consumer-groups.sh discovery{"data": [{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"0" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"1" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"3" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test", "{#PARTITION}":"2" }，{ "{#GROUP}":"test-group", "{#TOPICP}":"test1", "{#PARTITION}":"0" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test1", "{#PARTITION}":"1" },{ "{#GROUP}":"test-group", "{#TOPICP}":"test1", "{#PARTITION}":"2" }]}
获取监控项“test-group/test/分区X”的Lag
经过自动发现后的数据，我们可以进一步获取不同分区的lag
# 优化后的计算方式：# test-group test分区0 lagbash consumer-groups.sh lag test-group test 0# test-group test分区1 lagbash consumer-groups.sh lag test-group test 1# test-group test1分区0 lagbash consumer-groups.sh lag test-group test1 0
通过命令可以看到，我们的参数通过消费者组、Topic、Partition来获取最终的lag值，如果不加消费者区分，那么无法区分不同消费者组和不同Topic相应的lag结果：
# 未优化前的计算方式：# 获取分区0 lagbash consumer-groups.sh lag 0# 获取分区1 lagbash consumer-groups.sh lag 1# 获取分区2 lagbash consumer-groups.sh lag 2# 获取分区3 lagbash consumer-groups.sh lag 3
最终优化后脚本
# 自动发现配置文件vim consumer-groups.conf#按消费者组(Group)|Topic格式，写入自动发现配置文件test-group|testtest-group|test1# 自动发现、lag计算脚本vim consumer-groups.sh#!/bin/bash##comment: 根据消费者组监控topic lag，进行监控告警#配置文件说明#消费者组|Topic#test-group|test#获取topic 信息cal_topic() {if [ $# -ne 2 ]; thenecho "parameter num error, 读取topic信息失败"exit 1else/usr/local/kafka/bin/./kafka-consumer-groups.sh --bootstrap-server 192.168.3.55:9092 --describe --group $1 |grep -w $2|grep -v nonefi}#topic+分区自动发现topic_discovery() {printf "{\n"printf "\t\"data\": [\n"m=0num=`cat /etc/zabbix/monitor_scripts/consumer-groups.conf|wc -l`for line in `cat /etc/zabbix/monitor_scripts/consumer-groups.conf`dom=`expr $m + 1`group=`echo ${line} | awk -F'|' '{print $1}'`topic=`echo ${line} | awk -F'|' '{print $2}'`cal_topic $group $topic > /tmp/consumer-group-tmpcount=`cat /tmp/consumer-group-tmp|wc -l`n=0while read linedon=`expr $n + 1`#判断最后一行if [ $n -eq $count ] && [ $m -eq $num ]; thentopicp=`echo $line | awk '{print $1}'`partition=`echo $line | awk '{print $2}'`printf "\t\t{ \"{#GROUP}\":\"${group}\", \"{#TOPICP}\":\"${topicp}\", \"{#PARTITION}\":\"${partition}\" }\n"elsetopicp=`echo $line | awk '{print $1}'`partition=`echo $line | awk '{print $2}'`printf "\t\t{ \"{#GROUP}\":\"${group}\", \"{#TOPICP}\":\"${topicp}\", \"{#PARTITION}\":\"${partition}\" },\n"fidone < /tmp/consumer-group-tmpdoneprintf "\t]\n"printf "}\n"}if [ $1 == "discovery" ]; thentopic_discoveryelif [ $1 == "lag" ];thencal_topic $2 $3 > /tmp/consumer-groupcat /tmp/consumer-group |awk -v t=$3 -v p=$4 '{if($1==t && $2==p ){print $5}}'elseecho "Usage: /data/scripts/consumer-group.sh discovery | lag"fi# 手动运行## 自动发现bash consumer-groups.sh discovery## test-group test分区0 lagbash consumer-groups.sh lag test-group test 0
接入Zabbix
1.Zabbix配置文件
vim userparameter_kafka.confUserParameter=topic_discovery,bash /data/scripts/consumer-groups.sh discoveryUserParameter=topic_log[*],bash /data/scripts/consumer-groups.sh lag "$1" "$2" "$3"

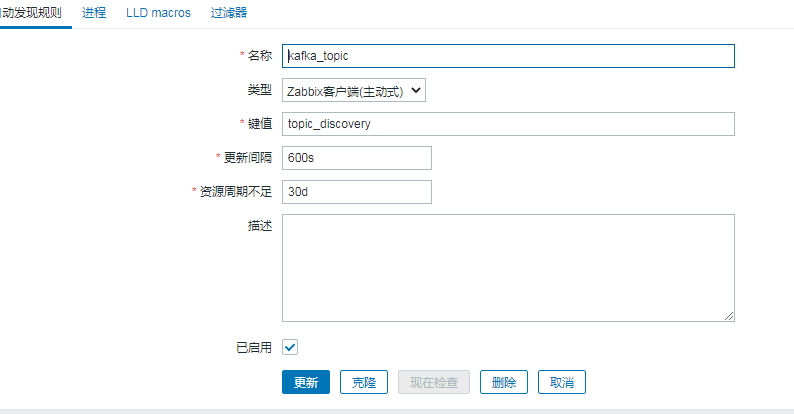

2.Zabbix自动发现

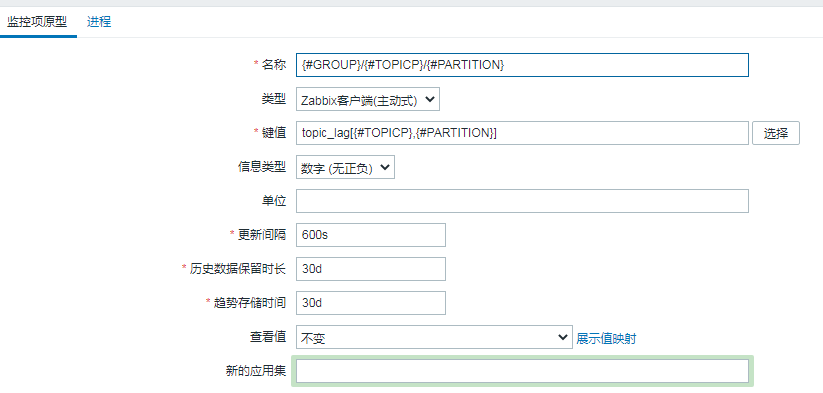

3.监控项配置
4.告警信息
告警主机：Kafka_192.168.3.55主机IP：192.168.3.55主机组：Kafka告警时间：2022.03.21 00:23:10告警等级：Average告警信息：test-group/test/分区1:数据积压100告警项目：topic_lag[test-group,test,1]问题详情：test-group/test/1: 62
