patchworklib，一款极其强大的 Python 库！

来源：网络

一、问题

二、R语言

安装

# install.packages("devtools")devtools::install_github("thomasp85/patchwork")

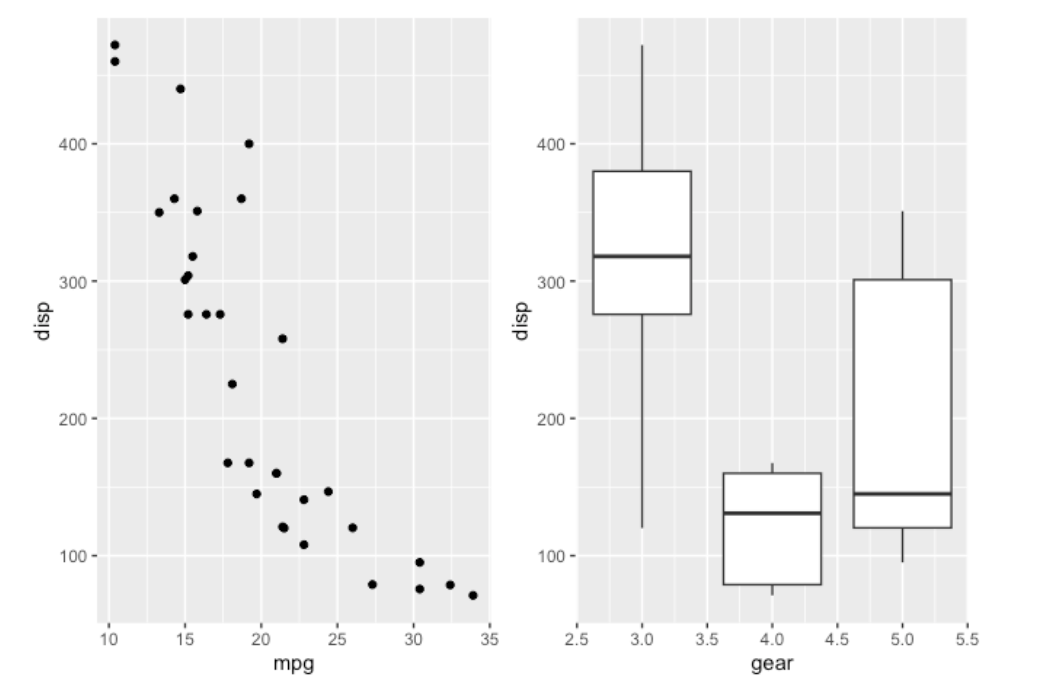

两个图并排在一行，只需要导入patchwork， 然后相加即可

library(ggplot2)library(patchwork)
p1 <- ggplot(mtcars) + geom_point(aes(mpg, disp))p2 <- ggplot(mtcars) + geom_boxplot(aes(gear, disp, group = gear))
p1 + p2

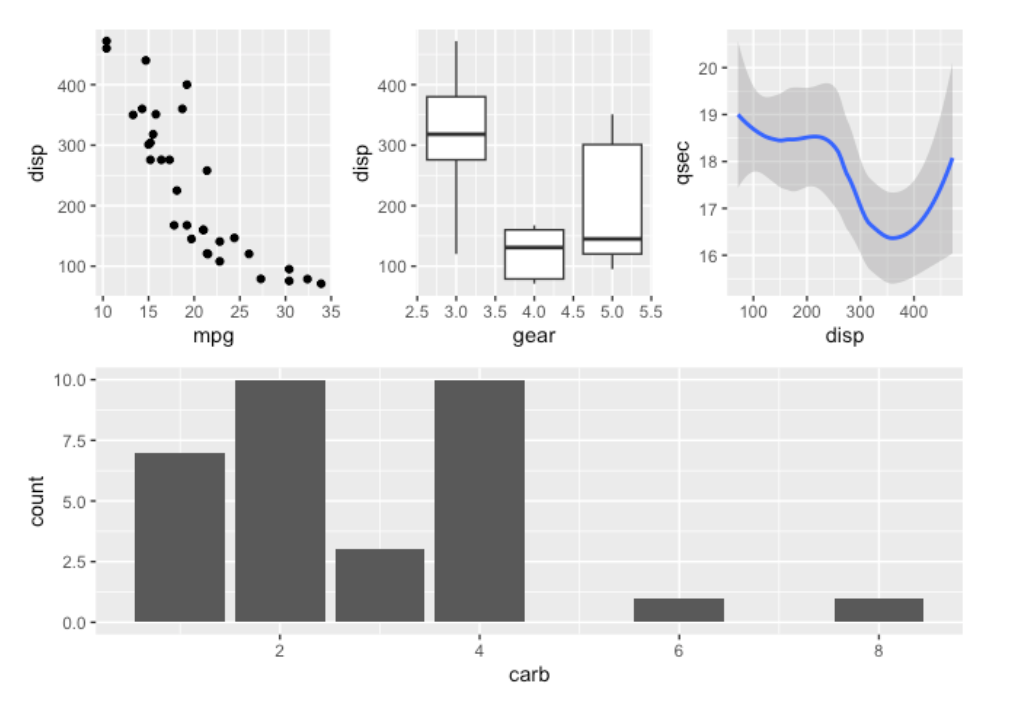

两行，第一行三个图，第二行一个图

p3 <- ggplot(mtcars) + geom_smooth(aes(disp, qsec))p4 <- ggplot(mtcars) + geom_bar(aes(carb))
(p1 | p2 | p3) /      p4

专属福利
👉点击领取：最全Python资料合集

三、Python

Patchworklib 提供了该问题的解决方案。通过使用 patchworklib，任何类型的seaborn 和plotnine 图都可以作为matplotlib 子图进行处理。安装

pip3 install patchworklib

import patchworklib as pwimport seaborn as sns
fmri = sns.load_dataset("fmri")ax1 = pw.Brick(figsize=(3,2))sns.lineplot(x="timepoint", y="signal", hue="region", style="event", data=fmri, ax=ax1)ax1.legend(bbox_to_anchor=(1.05, 1.0), loc='upper left')ax1.set_title("ax1")titanic = sns.load_dataset("titanic")ax2 = pw.Brick(figsize=(1,2))sns.barplot(x="sex", y="survived", hue="class", data=titanic, ax=ax2)ax2.move_legend(new_loc='upper left', bbox_to_anchor=(1.05, 1.0))ax2.set_title("ax2")
ax12 = ax1|ax2ax12.savefig("ax12.png")

#省略 ax1、ax2、ax4绘制过程
ax124 = ax1|ax2|ax4ax124.savefig("../img/ax124.png")

#省略 ax124、ax3、ax5绘制过程ax12435 = ax124/(ax3|ax5)ax12435.savefig("../img/ax12435.png")

 1
