图像可以以各种角度旋转（90、180、270和360度）。OpenCV计算执行仿射变换的仿射矩阵，这意味着它不保留线之间的角度或点之间的距离，尽管它保留了位于直线上的点之间距离的比例。

旋转图像的语法如下：

cv2.getRotationMatrix2D(center, angle, scale rotated = cv2.warpAfifne(img,M,(w,h))

参数：

center：表示图像的中心。
angle：表示要顺时针旋转的图像的角度。
rotated：包含旋转后图像数据的数组。
scale：值1.0表示保持形状。根据提供的值缩放图像。

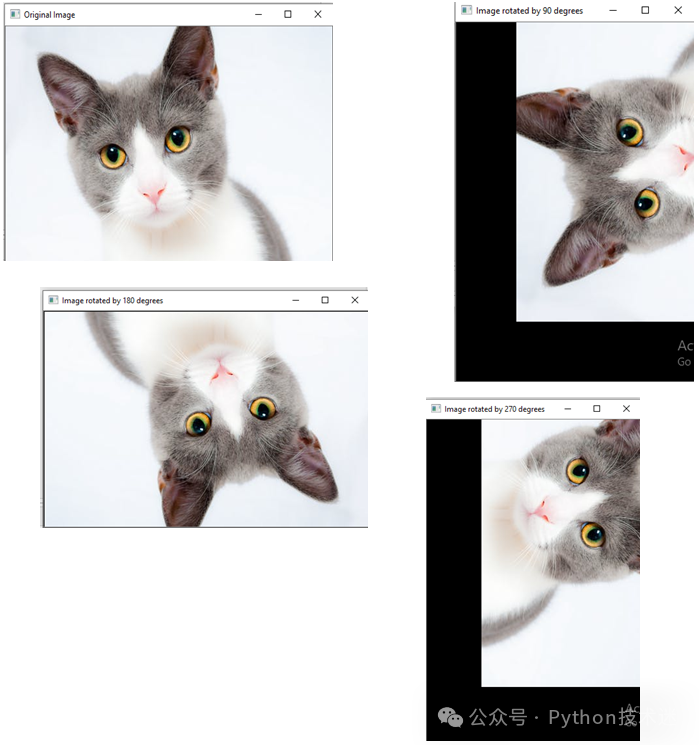

示例-1

import cv2  # read image as greyscale  img = cv2.imread(r'C:\Users\DEVANSH SHARMA\cat.jpeg')  # get image height, width  (h, w) = img.shape[:2]  # calculate the center of the image  center = (w / 2, h / 2)  angle90 = 90  angle180 = 180  angle270 = 270  scale = 1.0  # Perform the counterclockwise rotation holding at the center  # 90 degrees  M = cv2.getRotationMatrix2D(center, angle90, scale)  rotated90 = cv2.warpAffine(img, M, (h, w))  # 180 degrees  M = cv2.getRotationMatrix2D(center, angle180, scale)  rotated180 = cv2.warpAffine(img, M, (w, h))  # 270 degrees  M = cv2.getRotationMatrix2D(center, angle270, scale)  rotated270 = cv2.warpAffine(img, M, (h, w))  cv2.imshow('Original Image', img)  cv2.waitKey(0)  # waits until a key is pressed  cv2.destroyAllWindows()  # destroys the window showing image  cv2.imshow('Image rotated by 90 degrees', rotated90)  cv2.waitKey(0)  # waits until a key is pressed  cv2.destroyAllWindows()  # destroys the window showing imag  cv2.imshow('Image rotated by 180 degrees', rotated180)  cv2.waitKey(0)  # waits until a key is pressed  cv2.destroyAllWindows()  # destroys the window showing image  cv2.imshow('Image rotated by 270 degrees', rotated270)  cv2.waitKey(0)  # waits until a key is pressed  cv2.destroyAllWindows()  # destroys the window showing image
